RFID 134.2KHz module FDX-B FDXB ISO 11784 with external coil antenna and sample tags

Summary

• Customizable 134.2K card reading module,
• mature and stable product, stable batch supply, proven by the market for many years.
• Supports FDX-B ISO11784/85 protocol and
• can read EM4305, Hitag, EM1001, TK4100 and other tags.
• Users do not need to understand complex card reading protocols.
• They only need to provide power to receive the card number output from the serial port, which
  can greatly shorten development time.
• The module comes with a card reading prompt light.
• The module has excellent card reading performance.

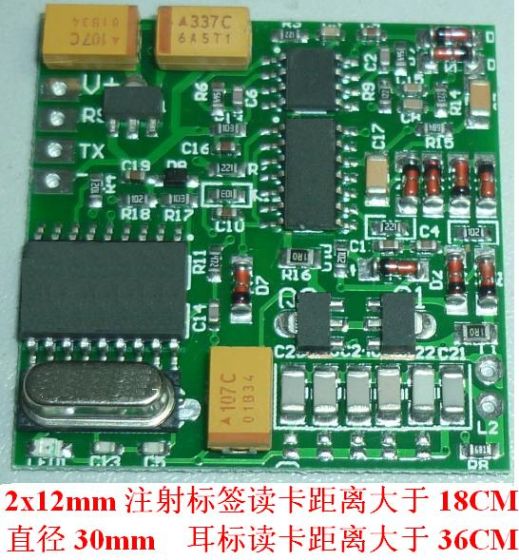

• When using a 97X97mm antenna, the 2X12mm injection glass tube tag distance is greater than 18CM, and the
• 30mm diameter standard ear tag distance is greater than 36CM.
• 100% no-miss card reading, very suitable for demanding industrial occasions,
  such as industrial robot navigation, animal management, handheld readers, pigeon racing, breeding farms, dog injection tag reading, production line automation, equipment inspection, automatic vending Goods and other applications.
• Module size: 35X36mm
• Working voltage: 5~9V
• Working current: 120mA
• Bulk price negotiable.

Package

• The module itself
• A 65mm round coil antenna is provided by default.
• 2 pieces of compatible tags
• free software on Windows for demonstration
• There are also 97mm diameter round or 130mm diameter round options (extra cost). It supports self-made antennas of any size and shape.
