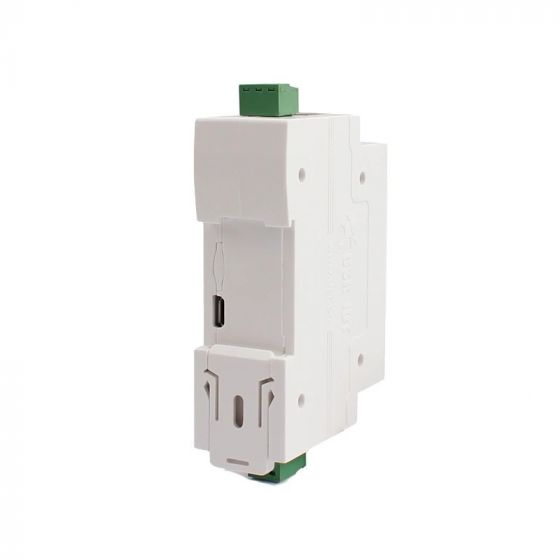

USR-DR301 DIN-rail RS232 Serial Port To Ethernet Converter Server IOT Device Support Modbus RTU to Modbus TCP
USR-DR301 DIN-rail RS232 Serial Port To Ethernet Converter Server IOT Device Support Modbus RTU to Modbus TCP
USR-DR301 is a tiny size RS232 to Ethernet converter, which can realize the bidirectional transparent transmission between RS232 and Ethernet.
-
RS232 Port: Terminal Type
-
Industrial-grade, DIN-Rail mounting
-
Modbus RTU to Modbus TCP
|
Description |
Parameter |
Value |
|
Hardware |
Work Voltage |
DC 5.0～36.0 V |
|
Work Current |
130mA@5V |
|
|
Ethernet Port |
RJ45,10/100Mbps |
|
|
Serial Port Baud rate |
600-460.8K（bps） |
|
|
Serial Port |
RS232*1 (Terminal Type) |
|
|
Software |
Network Protocol |
TCP/IP, UDP, ARP,ICMP,IPV4 |
|
IP Type |
Static IP,DHCP |
|
|
DNS |
Support |
|
|
Configuration |
Software, Web-page, AT command |
|
|
Work Mode |
TCP Server/TCP Client/ UDP Server/UDP Client Modbus RTU to TCP |
|
|
Similar RFC2217 |
Support |
|
|
Httpd Client |
Support |
|
|
TCP Server Connection |
Support to connect max 8 TCP client |
|
|
Network Caching |
Send: 6Kbyte, Receive:4Kbyte |
|
|
Serial Port Caching |
Receive:1Kbyte |
|
|
Average Transmission Delay |
<10ms |
|
|
Software |
VCOM, USRIOT_Cloud, Setup software, test proforma |
|
|
Packaging Mechanism |
4 bytes package time 1024 bytes package length |
|
|
Others |
Certificate |
CE, RoHs,FCC |
|
Grade |
IP30, 1.5KV |
|
|
Size |
71.0x60.0x25.0mm |
|
|
Work Temp |
-40～85c |
|
|
Storage Temp |
-40～105c |
|
|
Work Humidity |
5%～95% RH |
|
|
Storage Temp |
5%～95% RH |
| Product Name | USR-DR301 DIN-rail RS232 Serial Port To Ethernet Converter Server IOT Device Support Modbus RTU to Modbus TCP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | USR-DR301 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 1.000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Customizable | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| With Built-in Battery | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Warranty | 1 Year Warranty | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Country Specific | Universal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| selling_potential | 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Order Quantity | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | USR-DR301 is a tiny size RS232 to Ethernet converter, which can realize the bidirectional transparent transmission between RS232 and Ethernet.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Condition | New |
