Industrial 4G LTE Cellular Router USR-G805 IoT Device Support L2TP PPTP VPN 2 orders

Details

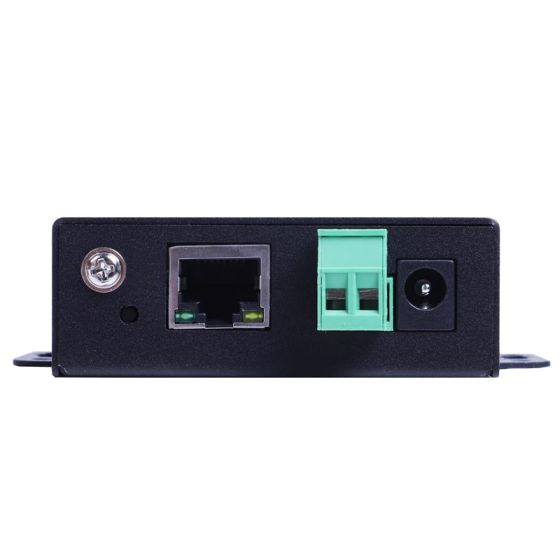

USR-G805 is a very small and economical 4G industrial cellular router. It integrates 4G LTE, Ethernet port and VPN technology. It uses 4G Cat 4 Qualcomm solution module, and embeds a CPU with a working frequency up to 1GHz, provides reliable, secure and high speed mobile connectivity with VPN supported.
● Compact design
● Support 4G/3G/2G network
● Support L2TP/PPTP VPN
● 9-36V DC Wide range power input
● Support Dynamic DNS (DDNS)
● Hardware Watchdog
● Support USR cloud, remote access to device’s GUI
● Support local/remote firmware update
● Support configuration backup and import
● Local/Remote log for easy debugging

Hardware Specifications
Cellular interface	Antenna	1 × SMA-K
Cellular interface	SIM card	1 x（3 V/1.8 V）Standard 2FF SIM, drawer-type sim card slots
Ethernet	NO.	1 × LAN
Ethernet	Spec.	RJ45 connector:10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Indicators	POWER	always on after powered on
	WORK	blinking when the router is ready and working properly
	NET	2/3/4G mode indicator:2G-red,3G-blue,4G-purple
	SIG	Signal strength: weak-red,medium-blue,strong-purple
Power supply	Adaptor	DC 12V/1A
	Connector	DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block, reverse polarity protection
	Input voltage	DC 9-36V
	Rated power consumption	3.5W
Physical	Housing	Metal shell,IP30
	Dimensions	86.0mm * 70.0mm* 25.0mm
	Installation method	Panel mounting, DIN-Rail mounting, desktop
	Operating temperature	-20℃~70℃
	Storage temperature	-40℃～+125℃
	Operating humidity	5%~95%RH（non-condensing）
Others	Reload	Pinhole reset button
Others	USB	Firmware upgrading

More Information

Product Name

Industrial 4G LTE Cellular Router USR-G805 IoT Device Support L2TP PPTP VPN 2 orders

SKU

USR-G805

Weight

2.000000

Customizable

No

With Built-in Battery

No

Warranty

1 Year Warranty

Country Specific

Universal

selling_potential

3

Minimum Order Quantity

No

Description

USR-G805 is a very small and economical 4G industrial cellular router. It integrates 4G LTE, Ethernet port and VPN technology. It uses 4G Cat 4 Qualcomm solution module, and embeds a CPU with a working frequency up to 1GHz, provides reliable, secure and high speed mobile connectivity with VPN supported.
● Compact design
● Support 4G/3G/2G network
● Support L2TP/PPTP VPN
● 9-36V DC Wide range power input
● Support Dynamic DNS (DDNS)
● Hardware Watchdog
● Support USR cloud, remote access to device’s GUI
● Support local/remote firmware update
● Support configuration backup and import
● Local/Remote log for easy debugging

Hardware Specifications
Cellular interface	Antenna	1 × SMA-K
Cellular interface	SIM card	1 x（3 V/1.8 V）Standard 2FF SIM, drawer-type sim card slots
Ethernet	NO.	1 × LAN
Ethernet	Spec.	RJ45 connector:10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Indicators	POWER	always on after powered on
	WORK	blinking when the router is ready and working properly
	NET	2/3/4G mode indicator:2G-red,3G-blue,4G-purple
	SIG	Signal strength: weak-red,medium-blue,strong-purple
Power supply	Adaptor	DC 12V/1A
	Connector	DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block, reverse polarity protection
	Input voltage	DC 9-36V
	Rated power consumption	3.5W
Physical	Housing	Metal shell,IP30
	Dimensions	86.0mm * 70.0mm* 25.0mm
	Installation method	Panel mounting, DIN-Rail mounting, desktop
	Operating temperature	-20℃~70℃
	Storage temperature	-40℃～+125℃
	Operating humidity	5%~95%RH（non-condensing）
Others	Reload	Pinhole reset button
Others	USB	Firmware upgrading
