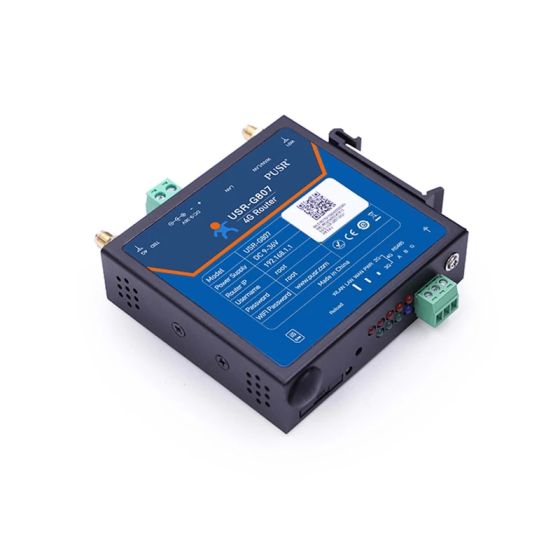

Serial Port RS485 LAN Ethernet To 4G WiFi Converter Server Industrial 4G LTE Router USR-G807 IoT Device Support Modbus

Details

USR-G807 is an IoT cellular router that integrates 4G LTE, Wi-Fi, and VPN technologies to provide an easy, reliable, secure Internet connectivity and high-speed data access for equipment networking. With technologies such as 4G wireless wide area network ,Dual Ethernet ports (LAN + WAN),Wi-Fi wireless local area network it provides uninterrupted multiple network access capabilities.

● Supports 2G/3G/4G network all over the world.
● Supports APN/VPDN sim card.
● Dual Ethernet ports, WAN/LAN.
● Support Modbus RTU toTCP.
● Support watchdog.
● Supports IPsec VPN, PPTP,L2TP, OPENVPN,GRE etc.
● Supports DDNS,PPPOE,DHCP,Static IP.
● Supports email alarm,SMS alarm,abnormal alarm push in time.
● Wall-mounting and DIN-rail mounting options available,easy to install.

Hardware Specifications
Cellular Interface	Antenna	1 x SMA-K Note: North America models: 2 x SMA 4G antenna connectors.
Cellular Interface	SIM card	1 x (3 V & 1.8 V) Standard 2FF SIM, drawer-type sim card slots
Ethernet	1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection
Ethernet	1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection
Indicators	LED	PWR: always on after powered on WLAN: always solid on when WiFi is enabled and working properly WAN: solid when cable is connected, blinking when data is transmitting and receiving LAN：solid when cable is connected, blinking when data is transmitting and receiving 2/3/4G mode indicator： 2G led is on after connected to 2G network 3G led is on after connected to 3G network Both leds is on after connected to 4G network Signal strength：4 solid bars,strongest signal
WiFi Interface	Standards & Frequency	IEEE 802.11b/g/n,2.4GHz, AP mode
	Data speed	IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps
	Antenna	1 x SMA-K
	Transmission distance	80 meters by line of sight.Actual transmission distance depends on environment of the site.
Power Supply	Adaptor	DC 12V/1A
	Connector	DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN 5.08mm industrial terminal block,reverse polarity protection
	Input voltage	DC 9~36V
	Working power	Average 270mA/12V
Serial Interface	RS485/RS232(alternative)	3 PIN 3.81mm industrial terminal block. Note:RS485 default,RS232 please contact sales.
	Baud rate(bps)	1200,2400,4800,9600,19200,38400,57600,115200,230400
	Data bits	8
	Stop bits	1,2
	Parity	NONE,ODD,EVEN
Physical Characteristics	Housing	Metal shell,IP30
	Dimensions	112.084.025.0 mm(LWH）
	Installation method	Panel mounting, DIN-Rail mounting
	EMC	Static IEC61000-4-2, level 2 Pulsed Electric Field IEC61000-4-4, level 2 Surge IEC61000-4-5, level 2
	Operating temperature	-20℃～+70℃
	Storage temperature	-40℃～+125℃
	Operating humidity 5	5%～95%RH（non-condensing)
Others	Reload	Pinhole reset button
	TBD	Debug interface (TTL Level)
	Embedded Watchdog	Device runs self-detection, auto recovers from malfunctions
Certificate	CE,CCC
Software Specifications
Network Connection	WAN protocol	PPP, PPPoE, DHCP client
	LAN protocol	ARP, DHCP server, NAT
	4G network access	Auto APN/VPDN, private network Access authentication: CHAP/PAP
	WLAN security	Open system,WPA/WPA2 PSK TKIP/AES encryption
	IP routing	Static routing
	Network diagnosis	Ping,route trace,DNS
Serial modem	Work mode	NET,HTTPD
	Sockets	4 sockets,4 centers ,TCPS(SOCKA)/TCPC/UDPS/UDPC
	Modbus RTU toTCP	Support
Device management	Configuration	Web
	Remote management	Telnet, SSH, AT command,SNMP
	PUSR platform	Remote monitoring,remote upgrade,alarming,base station location,remote access to web pages of the router
Security	Failover backup	Failover between 4G and WAN, ensures automatic switch to alternative backup connection
	Firewall	DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
	VPN	Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols
Service	DDNS	Remote access the device through domain name
	Alarm	Email,SMS
	Others	NTP client Timing task
Region	Part of APAC，please confirm the frequencies
Frequency	TDD-LTE	B38/39/40/41
	FDD-LTE	B1/B3/B5/B8
	WCDMA	B1/B8
	TD-SCDMA	B34/B39
	EVDO/CDMA1X	CDMA1X/ 1xEV-DO rel.0/ 1xEV-DO rev. A：800 MHz
	GSM/CPRS/EDGE	900/1800MHz
