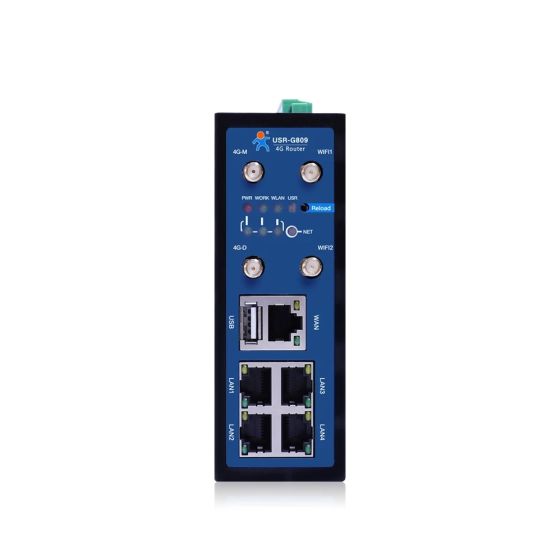

USR-G809 4G Industrial cellular VPN router
The USR-G809 is an industrial cellular VPN router that integrates 4G LTE, Wi-Fi,DIDO, serial port, Ethernet ports(4 LAN and 1 WAN) and VLAN,VPN technologies to provide state-of-the-art Internet connectivity and high-speed data access for equipment networking.
● Industrial design, metal enclosure , protection class IP30
● Wide input voltage DC 9-36V,with reverse polarity protection
● ESD, Surge, EFT/Burst protection
● Supports 2G/3G/4G network all over the world ,supports APN / VPDN private network access
● Supports 2.4GHz WiFi, scaling more devices access, support wired and wireless connecting Internet
● Compatible with 5.8GHz WiFi(optional)
● Supports VPN(PPTP, L2TP, IPSec, OpenVPN,GRE), and VPN encryption function, suitable for various networking and high-security requirements Scenarios
|
Hardware Specifications |
||
|
Cellular Interface |
Antenna |
2x SMA-K Note: North America models: 2 x SMA 4G antenna connectors. |
|
SIM card |
1 x (3 V & 1.8 V) Standard 2FF SIM, drawer-type sim card slots |
|
|
Ethernet |
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection |
|
|
4 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection |
||
|
Indicators |
LED |
PWR: red,always on after powered on Work: green,blinking when the router is ready and working properly WLAN: green,always solid on when WiFi is enabled and working properly USR:user defined. Net indicator: Red always on after connected to 2G network Green always on after connected to 3G network Orange always on after connected to 4G network Signal strength：3 solid bars,strongest signal |
|
Terminal block |
Pinout |
V+,V- : 2 cores terminal power supply socket,built-in power supply phase-reversal protection GND:groundterminal Tx/B:RS-232/RS485pin（setupby software） Rx/A:RS-232/RS485pin（setupby software） DI:2 x Digital input,passive switch DO:2 x Digital open collector output, max output 36 V, 300 mA COM: common terminal,use in conjunction with DOs |
WiFi Interface |
Standards & Frequency |
IEEE 802.11b/g/n,2.4GHz, AP mode |
|
Data speed |
IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps |
|
|
Antenna |
2x RP-SMA-K |
|
|
Transmission distance |
80 meters by line of sight.Actual transmission distance depends on environment of the site. |
|
|
Power Supply |
Adaptor |
DC 12V/1A |
|
Connector |
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or industrial terminal block,reverse polarity protection |
|
|
Input voltage |
DC 9~36V |
|
|
Working power |
Average 522mA/12V, Maximum 811mA/12V |
|
|
Serial Interface |
RS485/RS232(alternative) |
industrial terminal block. Note:RS232 default. |
|
Baud rate(bps) |
1200,2400,4800,9600,19200,38400,57600,115200,230400 |
|
|
Data bits |
8 |
|
|
Stop bits |
1,2 |
|
|
Parity |
NONE,ODD,EVEN |
|
Physical Characteristics |
Housing |
Metal shell,IP30 |
|
Dimensions |
125.0*103.0*45.0mm (L*W*H,antenna pedestal,terminal block and DIN Rail are not included) |
|
|
Installation method |
Ear mounting, DIN-Rail mounting |
|
|
EMC |
StaticIEC61000-4-2, level3 Pulsed Electric FieldIEC61000-4-4, level3 SurgeIEC61000-4-5, level3 |
|
|
Operating temperature |
-20℃～+70℃ |
|
|
Storage temperature |
-40℃～+125℃ |
|
|
Operating humidity |
5%～95%RH（non-condensing） |
|
|
Others |
Reload |
Pinhole button,restore factory defaults/firmware resume/firmware upgrading with USB |
|
TBD |
Debug interface (TTL Level) |
|
|
USB |
Firmware upgrading |
|
|
TF |
TF card slot |
|
|
Ground protection |
Screw |
|
|
Embedded Watchdog |
Device runs self-detection, auto recovers from malfunctions |
|
|
Certificate |
CE |
|
| SKU | USR-G809 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight | 1.000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Customizable | No | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| With Built-in Battery | No | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Warranty | 1 Year Warranty | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Country Specific | Universal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| selling_potential | 3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Order Quantity | No | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | USR-G809 4G Industrial cellular VPN router
The USR-G809 is an industrial cellular VPN router that integrates 4G LTE, Wi-Fi,DIDO, serial port, Ethernet ports(4 LAN and 1 WAN) and VLAN,VPN technologies to provide state-of-the-art Internet connectivity and high-speed data access for equipment networking. ● Industrial design, metal enclosure , protection class IP30 ● Wide input voltage DC 9-36V,with reverse polarity protection ● ESD, Surge, EFT/Burst protection ● Supports 2G/3G/4G network all over the world ,supports APN / VPDN private network access ● Supports 2.4GHz WiFi, scaling more devices access, support wired and wireless connecting Internet ● Compatible with 5.8GHz WiFi(optional) ● Supports VPN(PPTP, L2TP, IPSec, OpenVPN,GRE), and VPN encryption function, suitable for various networking and high-security requirements Scenarios
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Condition | New | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
