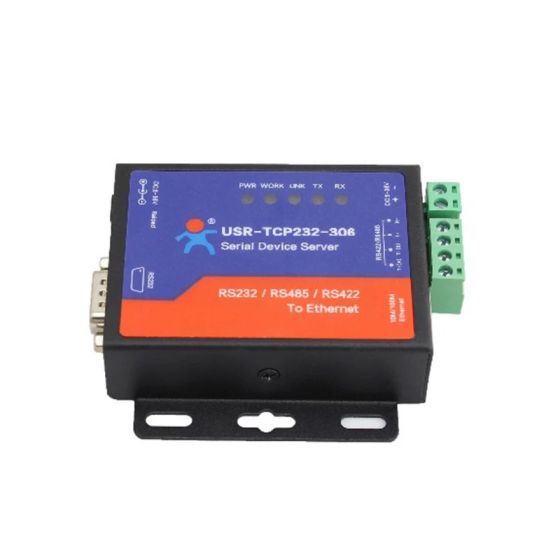

USR-TCP232-306 Ethernet to Serial Converters
Ethernet to serial converters USR-TCP232-306 support both interfaces RS232 and RS485, but can only use one at one time. Simple configuration and easy to use.
● RS232/RS485/RS422 (not use simultaneously)
● Wide power supply 5-36v DC
● httpsD client mode, sends serial data in https format
● Support TCP server/client, UDP server/client, Virtual COM
|
Hardware |
|
|
Work Volt |
DC 5.0～36.0 V |
|
Work Current |
116mA@5V/53mA@12V |
|
Ethernet Port |
10/100Mbps auto switch between cross and direct connection |
|
Baud rate |
600-230.4K bps |
|
Serial Port |
RS232*1 / RS485*1 / RS422*1
Can’t be used at one time
|
|
Software |
|
|
Network Protocol |
IP, TCP/UDP, ARP, ICMP, IPV4 |
|
IP Mode |
Static IP, DHCP |
|
DNS |
User-defined DNS server address |
|
Configure |
Software/Webpage/AT command |
|
Work Mode |
TCP Server/TCP Client/UDP Server/UDP Client |
|
RFC2217 |
Supports resemble RFC2217 |
|
httpsd Client |
Supports |
|
Connection Number |
Connection number with client can be randomly set from 1 to 16 under TCP server mode |
|
Network Buffer |
Send: 6Kbyte, Receive: 4Kbyte |
|
COM Buffer |
Receive: 2Kbyte |
|
Avg. Transmission Delay |
<10ms |
|
Software |
Virtual-COM, USR-Cloud, Setup software provided |
|
Packing mechanism |
4 bytes of packing time, 400 bytes of packing length |
|
Other |
|
|
Certificate |
CE & FCC & Rohs |
|
Reliability level |
2KV Electromagnetic isolation |
|
Size |
98.0*86.0*24.5 mm(L*W*H) |
|
Work Temp |
-25~75° |
|
Store Temp |
-40~105° |
|
Work Humidity |
5%~95% RH |
|
Store Humidity |
5%~95% RH |
|
Package |
Static Foam |
Basic Function of Ethernet to Serial Converters
RS232/485/422 Optional
Wide Voltage 5-36V
Suitable for all kinds of voltage requirements for the industrial control machine
Function Diagram
TCP Server
Ethernet to serial converters USR-TCP232-306 monitor the set port and wait for a TCP client connection. Data from the serial device will transmit to all successfully-connected TCP Clients via USR-TCP232-306.
TCP client mode
Ethernet to serial converters USR-TCP232-306 will initiate TCP connection to the destination IP address that configured by the user and USR-TCP232-306 will continuously try to reconnect if establishing TCP connection unsuccessfully. If the USR-TCP232-306 establishes TCP connection to TCP Server successfully, it can realize bidirectional data transparent transmission between TCP Server and the serial device.
UDP mode
Ethernet to serial converters USR-TCP232-306 will transmit serial data from serial device to target network device by UDP connection. USR-TCP232-306 will listen to port and transmit all received data to serial device.
httpsD Client
Ethernet to serial converters USR-TCP232-306 supports https Client mode which can transmit serial data to the https server in https format(GET/POST).
Virtual Com Software
Synchronous Baud Rate
Dynamically change baud rate, data bit, check bit and stop bit of USR-TCP232-306 via network command.
Serial & Network Heartbeat Packet
USR-TCP232-306 maintains the normal connection with the server by sending heartbeat packet regularly
USR Cloud
IOT Cloud platform that is developed by our company independently.
Application
Traffic Lights Management System
Connect Ethernet to serial converter USR-TCP232-306 and it can realize traffic data acquisition and processing by Ethernet in control center. It can also provide accurate quantitative basis for traffic dispatch management and urban transport planning Can implement the optimum control for transportation phenomena such as traffic jam, traffic accident, traffic capacity from a regional or global perspective.
| SKU | USR-TCP232-306 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight | 1.000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Customizable | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| With Built-in Battery | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Warranty | 1 Year Warranty | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Country Specific | Universal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| selling_potential | 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Order Quantity | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | USR-TCP232-306 Ethernet to Serial Converters
Ethernet to serial converters USR-TCP232-306 support both interfaces RS232 and RS485, but can only use one at one time. Simple configuration and easy to use.
Basic Function of Ethernet to Serial Converters
RS232/485/422 Optional
Wide Voltage 5-36V Suitable for all kinds of voltage requirements for the industrial control machine
Function Diagram
TCP Server Ethernet to serial converters USR-TCP232-306 monitor the set port and wait for a TCP client connection. Data from the serial device will transmit to all successfully-connected TCP Clients via USR-TCP232-306.
TCP client mode Ethernet to serial converters USR-TCP232-306 will initiate TCP connection to the destination IP address that configured by the user and USR-TCP232-306 will continuously try to reconnect if establishing TCP connection unsuccessfully. If the USR-TCP232-306 establishes TCP connection to TCP Server successfully, it can realize bidirectional data transparent transmission between TCP Server and the serial device.
UDP mode Ethernet to serial converters USR-TCP232-306 will transmit serial data from serial device to target network device by UDP connection. USR-TCP232-306 will listen to port and transmit all received data to serial device.
httpsD Client Ethernet to serial converters USR-TCP232-306 supports https Client mode which can transmit serial data to the https server in https format(GET/POST).
Virtual Com Software
Synchronous Baud Rate Dynamically change baud rate, data bit, check bit and stop bit of USR-TCP232-306 via network command.
Serial & Network Heartbeat Packet USR-TCP232-306 maintains the normal connection with the server by sending heartbeat packet regularly
USR Cloud IOT Cloud platform that is developed by our company independently.
Application
Traffic Lights Management System Connect Ethernet to serial converter USR-TCP232-306 and it can realize traffic data acquisition and processing by Ethernet in control center. It can also provide accurate quantitative basis for traffic dispatch management and urban transport planning Can implement the optimum control for transportation phenomena such as traffic jam, traffic accident, traffic capacity from a regional or global perspective.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
