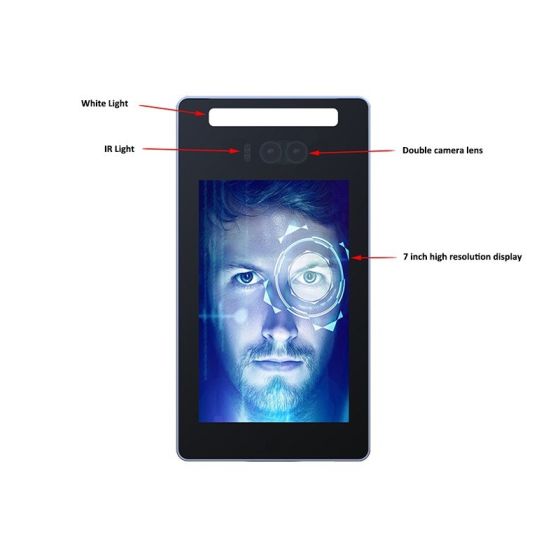

SKD Parts PCB Board Assembly Face Recognition Device Attendance Access Control System

SKU
WCAM101119340046
Special Price US$369.60 Regular Price US$410.67
In stock
Overview
SKD Parts PCB Board Assembly Face Recognition Device Attendance Access Control System
SKD parts pcb board assembly face recognition device attendance access control system
Product Description
Features&Advantages
Support Real Time Human Body Detection .
Using Linux operating system, better system stability.
Face recognition algorithm to accurately recognize faces, face recognition time is less than 1s.
Support free switching 1:N/1:1 (IC card, QR code, ID card) recognition mode 1: N with 0.8s comparison efficiency.
Support for AD file playback.
Support PIR human body sensing wake-up function.
Support TF card storage, pictures are stored continuously for 1 year, video is stored continuously for 7 days.
Support 65000+ face matching library and 500,000 face recognition records.
Rich interface protocol, support SDK and HTTP protocol under various platforms such as Windows/Linux.
Support tracking of personnel movements under strong backlight conditions.
The host supports an external ID card reader (For Chinese ID card).
The host supports the Wiegand interface to connect with the personnel gate and the access control host, and acts as a face recognition reader.
Specifications:
Hardware
Processor
Sextuple processor + 2G memory + 32G flash
Operating system
Linux Operating system
Storage
Support TF card storage
Camera module
U21R
Sensor
1/2.8" Progressive Scan CMOS
Lens
6mm(optional)
Performance
Recognition height
1.2~2.2 meters,Angle can be adjusted
Recognition distance
0.5~5 meters,depends on lens
Face angle
30 degrees left and right, 30 degrees up and down
Recognition time
Less than 1 second
Function
Support 500,000 capture library, real-time capture, support 65,000 list library
Product Images :
Company Information
Shenzhen Wellcam Co,Ltd being a branch company of Beward Co,Ltd in China (www.beward.ru) was established
in 2008 as a developer and manufacturer ,which is specialied  in ip video surveilance security camera products
with stong and rich experienced R&D team for moren than 10 years in security fields.
we protect our customers by manufacturing high-quality  and reliable products ,
provide special products customization services .
Our Service
1.  we can offer OEM&ODM services
2.  All software free provide , and technical support after-service
3.  long time warranty: 3 Years
4. 24 hours online service
Certification
Model NO. : B2002FR-CM-L06
Recognition Time : Less Than 1 Second
Recognition Distance : 0.5~5 Meters
Operating System : Linux Operating System
Protocols : HTTP and Sdk
Processor : Sextuple Processor + 2g Memory
Face Angle : 30 Degrees Left and Right, 30 Degrees up and Down
Face Capacity : More Than 65 000
Face Records : 500000
Effective Pixels : 2MP,1920*1080
Lens : 6mm(Optional)
Sensor : 1/2.8" Progressive Scan CMOS
Transport Package : Carton Packing
Specification : 7 inch screen
Trademark : wellcam
Origin : China
HS Code : 8543709990
Production Capacity : 1000PCS/Day
