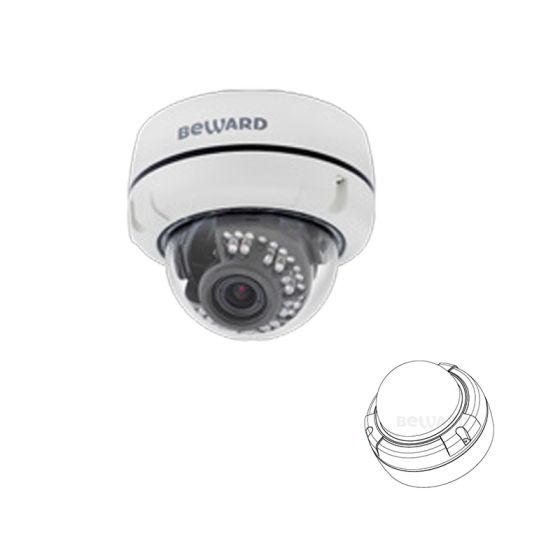

Vandalproof Infrared WDR Mini Dome Camera

Product Description
Vandalproof infrared WDR mini dome camera
The B2520DVZ vandal -
proof
professional IP camera  with a unique camera-in -camera design and
motorized lens is
easy to install and reliable in operation.
The 2MP
SONY Starvis
™ CMOS sensor and
motorized varifocal lens
provide superior clarity and color accuracy.The camera supports the "day / night" mode, has a built-in
IR illumination
and an electromechanical IR filter.
Features:
2 MP
Starvis
CMOS Progressive Scan
Unique
vandal
design "
cam chamber
"
Sealed
Ethernet
cable
connection inside the camera body, IP66 protection
Motorized lens
with ARD
Outdoor version,
from -45 to + 50 ° C
,
IP66
Up to 25 fps at any resolution
3D lens adjustment
IR illumination with a range of
up to 25 m
Day / Night and Electromechanical
IR Cut Filter
Dual encoding of video stream in
H.264 High Profile
and MJPEG formats
Dynamic Range
2xWDR
to
120 dB
Digital Noise Reduction (2D /
3DNR
)
2 power options, including
PoE
Technical Specification:
General characteristics
Sensor
2 MP, CMOS 1 / 2.8 '' SONY Starvis, Day / Night
Sensitivity
0.002 lux (day) / 0.001 lux (night)
Lens
Motorized, 2.7 - 12 mm, F1.3, ARD
Viewing angle
33 to 116 ° (horizontal), 19 to 62 ° (vertical)
Tilt angle adjustment
3D adjustment, mechanically,
-45 to 45 ° (horizontal), 0 to 100 ° (vertical)
Aperture control
DC drive
Focusing
Remotely via WEB
Magnification
Optical, 4x; digital
WDR
Hardware 2x (up to 120 dB)
Noise suppression
2D / 3DNR
Shutter speed
1/5 to 1/8000 sec. (automatic, setting max.value)
Additionally
Electromechanical IR cut filter, progressive scan
Video
Compression format
H.264 HP / MP / BP, Motion JPEG
Video stream
Dual encoding: H.264 / MJPEG, H.264 / H.264, MJPEG / MJPEG
Resolution
Main stream: 1920x1080 (Full HD), 1280x720 (HD)
Alternate Stream: 960x540, 640x360, 480x268, 320x176
Frame rate
Up to 25 fps for all resolutions
Transmission speed
32 kbps to 16 Mbps
Image options
Brightness, contrast, sharpness, saturation, gamma correction,
hue, HLC, BLC, video mask (up to 4 zones), rotate, flip, flip,
AGC, white balance (auto, manual)
Titles
Title, time / date, day of the week, frame rate,
video stream size, number of connections
Backlight
LEDs
IR LEDs (36 pcs.)
Control
3 operating modes
Turning on
By sensor, by video signal, by schedule
Wavelength
850 nm
Lighting angle
65 °
Range
Up to 25 m
Network and interfaces
Network interface
10Base-T / 100Base-TX Ethernet port
Network protocols
TCP / IP, IPv4 / v6, HTTP, HTTPS, FTP, SMTP, DNS, DDNS, DHCP, ARP,
PPPoE (CHAP, PAP), PPTP, UPnP, RTP, RTSP, SSL,
UDP, NTP, IGMP, ICMP, NAS (CIFS, NFS), Bonjour, ONVIF S
Compound
DHCP, static address
Security
Multi-level password protected access
Members
Up to 3 accounts
Company Profile
Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.
Model NO. : B2520DVZ
Kind : Autofocus Lens
Certification : CE, FCC, RoHS, ISO9001: 2000
Feature : Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC
Effective Distance : 10-30m
Sensor Size : 1/3 inch
Remote Control : With Remote Control
Transport Package : Box
Specification : 400g
Trademark : Beward
Origin : China
Production Capacity : 20000
Sensor : 2 MP, CMOS 1 / 2.8 '' SONY Starvis, Day / Night
Sensitivity : 0.002 lux (day) / 0.001 lux (night)
Lens : Motorized, 2.7 - 12 mm, F1.3, ARD
Viewing angle : 33 to 116 ° (horizontal), 19 to 62 ° (vertical)
Tilt angle adjustment : 3D adjustment, mechanically,
  : -45 to 45 ° (horizontal), 0 to 100 ° (vertical)
Aperture control : DC drive
Focusing : Remotely via WEB
Magnification : Optical, 4x; digital
WDR : Hardware 2x (up to 120 dB)
Noise suppression : 2D / 3DNR
Shutter speed : 1/5 to 1/8000 sec. (automatic, setting max.value)
Additionally : Electromechanical IR cut filter, progressive scan
Compression format : H.264 HP / MP / BP, Motion JPEG
Video stream : Dual encoding: H.264 / MJPEG, H.264 / H.264, MJPEG / MJPEG
Resolution : Main stream: 1920x1080 (Full HD), 1280x720 (HD)
  : Alternate Stream: 960x540, 640x360, 480x268, 320x176
Frame rate : Up to 25 fps for all resolutions
Transmission speed : 32 kbps to 16 Mbps
Image options : Brightness, contrast, sharpness, saturation, gamma correction,
  : hue, HLC, BLC, video mask (up to 4 zones), rotate, flip, flip,
  : AGC, white balance (auto, manual)
Titles : Title, time / date, day of the week, frame rate,
  : video stream size, number of connections
LEDs : IR LEDs (36 pcs.)
Control : 3 operating modes
Turning on : By sensor, by video signal, by schedule
Wavelength : 850 nm
Lighting angle : 65 °
Range : Up to 25 m
Network interface : 10Base-T / 100Base-TX Ethernet port
Network protocols : TCP / IP, IPv4 / v6, HTTP, HTTPS, FTP, SMTP, DNS, DDNS, DHCP, ARP,
  : PPPoE (CHAP, PAP), PPTP, UPnP, RTP, RTSP, SSL,
  : UDP, NTP, IGMP, ICMP, NAS (CIFS, NFS), Bonjour, ONVIF S
Compound : DHCP, static address
Security : Multi-level password protected access
Members : Up to 3 accounts
