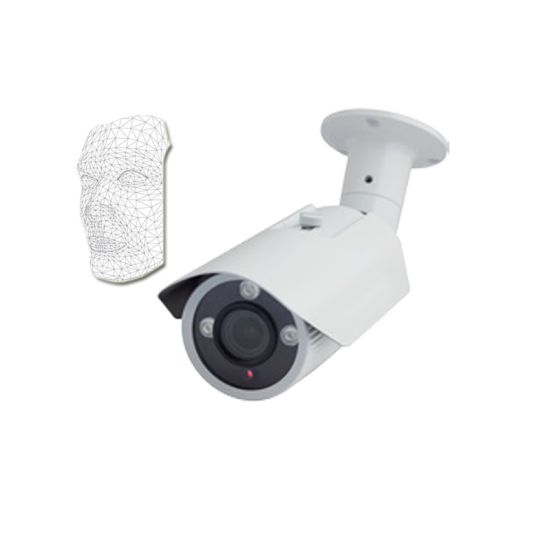

IR Motion Detection CCTV Surveillance Night Vision IP Security Camera for Home

Product Description
IR Motion Detection CCTV surveillance Night Vision IP Security Camera for Home
Professional
4MP
IP camera
B4230RVZ-B1
with
hardware WDR
and
motorized lens
is easy to install and operate. The camera supports the "day/night" mode, has a built-in
IR illumination
and an electromechanical IR filter. Compared to 2MP IP cameras,conventional higher resolution cameras,when switched to 2MP mode, have a smaller angle of view when using the same lens,and lower sensitivity at the same angle of view
Features:
4 MP
IP camera with hardware WDR
Hardware
2x high dynamic range
2xWDR up to 120dB
Revolutionary
H.265
Codec
:
Up to 50% Compression Efficiency
Higher video quality and half the video stream
Vandal-proof
outdoor
design
,
IP66
, from -45 to + 50 ° C
Motorized lens
with ARD
3rd generation IR LEDs, illumination range
up to 20 m
Day / Night and Electromechanical
IR Cut Filter
Digital Noise Reduction (2D /
3DNR
/ SmartNR)
Dual encoding of video stream in
H.265 / H.264
and
MJPEG
formats
2 power options: 12V (DC) or
PoE
Technical Specification:
General characteristics
Sensor
4 MP, CMOS 1/3 "OmniBSI-2, Day / Night
Sensitivity
0.05 lux (day) / 0.005 lux (night)
Lens
Motorized, 2.7-12mm, F.1.4
Viewing angle
30 to 94 ° (horizontal), 17 to 52 ° (vertical)
Aperture control
DC Drive
Magnification
Digital, web-based
WDR
Hardware (up to 120 dB)
Noise suppression
2DNR (3 modes of operation), 3DNR (level control), SmartNR
Shutter speed
1/25 to 1/8000 sec.
Shutter mode
Automatic (setting the maximum value)
Signal / Noise
Not less than 38 dB
Synchronization
With light source 50Hz / 60Hz
Additionally
Electromechanical IR cut filter, progressive scan
Video
Compression format
H.265 MP, H.264 MP / BP / HP, Motion JPEG
Video stream
Dual encoding: H.265 / H.265, H.265 / H.264, H.264 / H.264, H.265 / MJPEG,
H.264 / MJPEG, MJPEG / MJPEG
Resolution
Main stream: 2590x1520 (4MP), 2560x1440 (4MP), 2240x1260 (3MP),
1920x1080 (Full HD)
Alternative stream: 1280x750, 1280x720 (HD), 960x560, 640x540,
640x376, 640x360, 480x280, 480x268
Frame rate
Up to 25 fps for all resolutions
Transmission speed
32 kbps to 16 Mbps (VBR / CBR operating modes)
Image options
Brightness, contrast, sharpness, saturation, gamma correction,
tint, video mask (simple, up to 4 zones), flip, reflection, BLC, AGC,
white balance (auto, manual)
Titles
Title, date, time, frame rate, bit rate
Backlight
LEDs
3rd generation IR LEDs (3 pcs.)
Control
Automatic on / off.
Turning on
By sensor, by video signal, by schedule
Wavelength
850 nm
Lighting angle
60 °
Range
20 meters
Network and interfaces
Network interface
10Base-T / 100Base-TX Ethernet port
Network protocols
TCP / IP, IPv4 / v6, HTTP, HTTPS, FTP, SMTP, NAS (CIFS, NFS), DNS, DDNS, DHCP, PPPoE (CHAP, PAP),
PPTP, UPnP, RTP, RTSP, SSL, UDP, NTP, IGMP, ICMP, ARP, Bonjour, ONVIF 2.01
Compound
DHCP, static address
Security
Multi-level password protected access
Members
Up to 3 accounts
Non-volatile memory
Real time clock
Additionally
Support for microSDHC / microSDXC cards (up to 256 GB),
Recording and events
Events
Motion detection, network error
Motion Detector
Up to 4 detection zones, sensitivity adjustment, threshold adjustment
Sending by mail
Frames (resolution setting): by event, by schedule, periodically
FTP recording
Frames (resolution setting): by event, by schedule, periodically
Video (stream type selection): by event, by schedule
Recording to memory card, NAS
Frames (resolution setting): by event, by schedule, periodically
Video (stream type selection): by event, by schedule
Exploitation
Food
12V (DC); PoE IEEE 802.3 af (Class 2): End-Span, Mid-Span
Power consumption
Up to 6.2 W (DC), up to 7.8 W (PoE)
Working temperature range
From -45 to + 50 ° С
Protection class
IP66
Body material
Metal
Dimensions (wxhxd)
100х125х365 mm
The weight
1050 g (net)
Control
Web interface, professional freeware
Company Profile
Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.
Model NO. : B4230RVZ-B1
Kind : Autofocus Lens
Certification : CE, FCC, RoHS, ISO9001: 2000
Feature : Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC
Effective Distance : 10-30m
Sensor Size : 1/3 inch
Remote Control : With Remote Control
Transport Package : Standard Package
Specification : 400g
Trademark : Beward
Origin : China
Production Capacity : 20000
Sensor : 4 MP, CMOS 1/3 "OmniBSI-2, Day / Night
Sensitivity : 0.05 lux (day) / 0.005 lux (night)
Lens : Motorized, 2.7-12mm, F.1.4
Viewing angle : 30 to 94 ° (horizontal), 17 to 52 ° (vertical)
Aperture control : DC Drive
Magnification : Digital, web-based
WDR : Hardware (up to 120 dB)
Noise suppression : 2DNR (3 modes of operation), 3DNR (level control), SmartNR
Shutter speed : 1/25 to 1/8000 sec.
Shutter mode : Automatic (setting the maximum value)
Signal / Noise : Not less than 38 dB
Synchronization : With light source 50Hz / 60Hz
Additionally : Electromechanical IR cut filter, progressive scan
Compression format : H.265 MP, H.264 MP / BP / HP, Motion JPEG
Video stream : Dual encoding: H.265 / H.265, H.265 / H.264, H.264 / H.264, H.265 / MJPEG,
  : H.264 / MJPEG, MJPEG / MJPEG
Resolution : Main stream: 2590x1520 (4MP), 2560x1440 (4MP), 2240x1260 (3MP),
  : 1920x1080 (Full HD)
  : Alternative stream: 1280x750, 1280x720 (HD), 960x560, 640x540,
  : 640x376, 640x360, 480x280, 480x268
Frame rate : Up to 25 fps for all resolutions
Transmission speed : 32 kbps to 16 Mbps (VBR / CBR operating modes)
Image options : Brightness, contrast, sharpness, saturation, gamma correction,
  : tint, video mask (simple, up to 4 zones), flip, reflection, BLC, AGC,
  : white balance (auto, manual)
Titles : Title, date, time, frame rate, bit rate
LEDs : 3rd generation IR LEDs (3 pcs.)
Control : Automatic on / off.
Turning on : By sensor, by video signal, by schedule
Wavelength : 850 nm
Lighting angle : 60 °
Range : 20 meters
Network interface : 10Base-T / 100Base-TX Ethernet port
Network protocols : TCP / IP, IPv4 / v6, HTTP, HTTPS, FTP, SMTP, NAS (CIFS, NFS), DNS, DDNS, DHCP, PPPoE (CHAP, PAP),
  : PPTP, UPnP, RTP, RTSP, SSL, UDP, NTP, IGMP, ICMP, ARP, Bonjour, ONVIF 2.01
Compound : DHCP, static address
Security : Multi-level password protected access
Members : Up to 3 accounts
Non-volatile memory : Real time clock
Additionally : Support for microSDHC / microSDXC cards (up to 256 GB),
Events : Motion detection, network error
Motion Detector : Up to 4 detection zones, sensitivity adjustment, threshold adjustment
Sending by mail : Frames (resolution setting): by event, by schedule, periodically
FTP recording : Frames (resolution setting): by event, by schedule, periodically
  : Video (stream type selection): by event, by schedule
Recording to memory card, NAS : Frames (resolution setting): by event, by schedule, periodically
  : Video (stream type selection): by event, by schedule
Food : 12V (DC); PoE IEEE 802.3 af (Class 2): End-Span, Mid-Span
Power consumption : Up to 6.2 W (DC), up to 7.8 W (PoE)
Working temperature range : From -45 to + 50 ° С
Protection class : IP66
Body material : Metal
Dimensions (wxhxd) : 100х125х365 mm
The weight : 1050 g (net)
Control : Web interface, professional freeware
