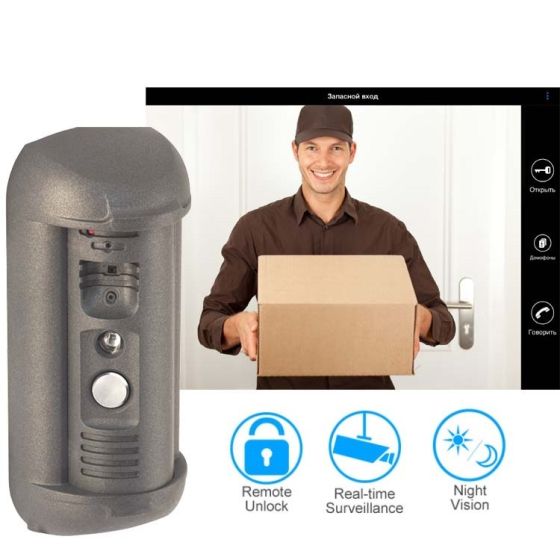

China Factory Water-Proof Villa Intercom System Video and Audio Door Phone

China Factory Water-proof Villa Intercom System Consists of Video and Audio Door Phone
The vandal-resistant Beward DS06A door station unit is designed to build  IP video intercom systems in an existing LAN,
There is no need to use additional wires and any equipment.
You just ought to install the Beward Intercom software on your PC, laptop, or mobile device and set it up.
The software is supplied with the door stations. There is no need to connect an internal display.
The solution has the advantages of competitive price, easy installation, real-time remote access to the door stations.
General
Image sensor
1,3 MP, Color, 1/3'' SONY Exmor, Day/Night
Sensitivity
0.01 lux (Day) / 0.003 lux (Night) / 0 lux (IR Illumination)
Lens
2
.
8
mm, F2.0
Field of view
80° (horizontal), 53° (vertical),
Field of view adjustment
-45 ~ 45°
Zoom
Digital, via the web-interface
WDR
Digital, 3 precets
Noise reduction
2D/3DNR (level adjustment), Smart
NR
Shutter time
1/25 ~ 1/8000 s (Auto, maximum value setting)
Signal/Noise ratio
50 dB or greater
Synchronization
Light source synchronization 50, 60 Hz
Ringing tone patterns
Set by the user
Other features
Electric Mechanical IR filter, Progressive Scanning
Video
Compression
H.264 BP/MP, Motion JPEG
Video streaming
Dual codec:: Н.264/MJPEG, H.264/H.264, MJPEG/MJPEG
Resolution
Main stream:
1280x960 (SXGA), 1280x720 (HD)
Sub stream:
720x576, 640х480, 320x240
Frame
rate
Up to 25 fps in all resolutions
Bit
rate
32 kbps ~ 16 Mbps
Image settings
Brightness, contrast, sharpness, saturation, exposure,
color grading, hue, quality, rotation,
flip (vertical/horizontal), ART, white balance,
exposure time (set gain and minimum value)
Subtitles
Title, date/time, weekday, bit
rate,
Frame
rate, number of connections
Audio
Audio output
Built-in speaker
Audio input
Built-in microphone
Compression
G.711 (a-law, u-law), G.726
Other features
Duplex
Illumination
IR illumination
IR LED (3rd generation, 1 pcs)
Control
Auto ON/OFF
Operating mode
By IR sensor, by video viewing, continuous
Wavelength
850 nm
IR distance
Up to 10 m
Network & Interfaces
Network interface
10Base-T/100Base-TX
Protocols
TCP/IP, SIP v.2.0, VPN, HTTP, HTTPS, FTP, SMTP,
DDNS, DHCP, PPPoE, RTP, RTSP, UDP, NTP,
ONVIF v.2.41, Modbus TCP, Camdrive
Alarm output
1 channel (NO mode)
Connection
DHCP, static IP address
Users
Up to 3 accounts
Recording & events
Events
Motion detection, network failure, call button pressing
Motion detection
Build-in video motion detector, up to 4 detection zones (sensitivity adjustment)
E-mail notification
At events: Images
FTP, memory card
At events: Images, video
Operation
Power
12 V 0.5 А (DC)
Power consumption
Max. 5 W
Commutation current
Up to 1 А
Operating temperature
-40°С ~ +50°С
Ingress protection
IP54
Housing
Vandal resistant
Hosing material
Metal
Dimensions
73х166х51 mm
Weight
570 g
Color
Dim black / Metallic grey
Control
Beward Intercom professional software (included)
System requirements
Microsoft Internet Explorer 9.0 Windows 8/7/Vista,
IOS 6.0-9, Android 4.0 later
Package contents
Units
Door station with installed memory card
Bracket (2 parts)
Secret screw
RJ-45 connectors (2pcs)
Junction box
Fixing set
Сlip connector
CD with manuals and software
Package
The video door station DS06AP-3L is equipped with a 3 channel controller.
It's possible to use the controller with previously purchased DS06AP door stations as well.
one controller allows you to connect to the IP video intercom up to 3 executive units,
there is available one of the following control functions:
1. The opening of doors, gates barriers
2. The lighting system activating
3. The system activating, etc.
We offer free management software and mobile apps, SDK/API files are available for Integration works.
FAQ:
Customer: What's your payment method?
We
accept payment by credit card and T/T on Alibaba Trade Assurance and Paypal, Western Union, or as the method of custom.
T/T: 30% deposit, the balance needs to be paid before delivery
L/C: the balance need to be irrevocable L/C at sight
Customer: How do you ensure your quality?
We are ISO 9001factory with a strict inspection for each process.
Customer: What is the lead time?
Depends on the order quantity and detailed OEM request, normally 2-3 days for sample(Non-customized), 5-15 days for mass production.
Customer: Your price is lowest in the market?
No, but the professional service and quick response will save a lot of your energy, quality is our culture.
Customer: Do you post-sale service?
Yes, we could provide on-line technical support, If any quality issue. We offer free repair during the warranty time.
Customer: How long is the warranty period?
2 years
Customer: What transformations are available?
By air, by sea or customer indicated agent
May I have a sample order?
Yes, a sample order is available.
Do you have any MOQ limit for orders?
MOQ 1 piece for sample test.
How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3- 9 days to arrive. Airline and sea shipping is optional.
How to proceed with an order?
Step 1: Let us know your requirements or application.
Step 2: We quote according to your requirements or our suggestions.
Step 3: The customer confirms the samples and places a deposit for the formal order.
Step 4: We arrange the production.
How to deal with the faulty?
Firstly, Our products are produced in a strict quality control system and the lowest defective rate is under control.
Secondly, during the guarantee period, for the defective unit, we
will repair them and resend them to you or we can discuss the solution including sending a new unit for replacing according to the real situation.
Do you offer OEM service?
Yes, We accept OEM both for hardware and software as well as packing box.
What's your MOQ for OEM service?
MOQ for software OEM is 100pcs.
MOQ for packing OEM box is 500pcs.
MOQ for hardware OEM is 500pcs, according to detailed requests.
Model NO. : DS06AP-3L
Power : DC12V or Poe
SIP : Asterisk 2.0
Onvif : 2.4.1
Face Recognition : 30 Pictures
Access Control : 3CH Relay
Mobile Apps : Free Android & Ios Apps
Two Way Talk : Full Duplex
Night Vision : IR Distance 5-10 Meters
Alarm : Motion Detection Alarm
Email Alarm : Sensor Alarm
SD Card Storage : 8GB by Default
Warranty : 2 Years
Brand : Beward
Transport Package : Carton Box
Specification : 0.8kgs
Trademark : Beward
Origin : China
HS Code : 851769900
Production Capacity : 500000/Year
Image sensor : 1,3 MP, Color, 1/3'' SONY Exmor, Day/Night
Sensitivity : 0.01 lux (Day) / 0.003 lux (Night) / 0 lux (IR Illumination)
Lens : 2.8 mm, F2.0
Field of view : 80° (horizontal), 53° (vertical),
Field of view adjustment : -45 ~ 45°
Zoom : Digital, via the web-interface
WDR : Digital, 3 precets
Noise reduction : 2D/3DNR (level adjustment), Smart NR
Shutter time : 1/25 ~ 1/8000 s (Auto, maximum value setting)
Signal/Noise ratio : 50 dB or greater
Synchronization : Light source synchronization 50, 60 Hz
Ringing tone patterns : Set by the user
Other features : Electric Mechanical IR filter, Progressive Scanning
Compression : H.264 BP/MP, Motion JPEG
Video streaming : Dual codec:: Н.264/MJPEG, H.264/H.264, MJPEG/MJPEG
Resolution : Main stream: 1280x960 (SXGA), 1280x720 (HD)
  : Sub stream: 720x576, 640х480, 320x240
Frame rate : Up to 25 fps in all resolutions
Bit rate : 32 kbps ~ 16 Mbps
Image settings : Brightness, contrast, sharpness, saturation, exposure,
  : color grading, hue, quality, rotation,
  : flip (vertical/horizontal), ART, white balance,
  : exposure time (set gain and minimum value)
Subtitles : Title, date/time, weekday, bit rate,
  : Frame rate, number of connections
Audio output : Built-in speaker
Audio input : Built-in microphone
Compression : G.711 (a-law, u-law), G.726
Other features : Duplex
IR illumination : IR LED (3rd generation, 1 pcs)
Control : Auto ON/OFF
Operating mode : By IR sensor, by video viewing, continuous
Wavelength : 850 nm
IR distance : Up to 10 m
Network interface : 10Base-T/100Base-TX
Protocols : TCP/IP, SIP v.2.0, VPN, HTTP, HTTPS, FTP, SMTP,
  : DDNS, DHCP, PPPoE, RTP, RTSP, UDP, NTP,
  : ONVIF v.2.41, Modbus TCP, Camdrive
Alarm output : 1 channel (NO mode)
Connection : DHCP, static IP address
Users : Up to 3 accounts
Events : Motion detection, network failure, call button pressing
Motion detection : Build-in video motion detector, up to 4 detection zones (sensitivity adjustment)
E-mail notification : At events: Images
FTP, memory card : At events: Images, video
Power : 12 V 0.5 А (DC)
Power consumption : Max. 5 W
Commutation current : Up to 1 А
Operating temperature : -40°С ~ +50°С
Ingress protection : IP54
Housing : Vandal resistant
Hosing material : Metal
Dimensions : 73х166х51 mm
Weight : 570 g
Color : Dim black / Metallic grey
Control : Beward Intercom professional software (included)
System requirements : Microsoft Internet Explorer 9.0 Windows 8/7/Vista,
  : IOS 6.0-9, Android 4.0 later
Units : Door station with installed memory card
  : Bracket (2 parts)
  : Secret screw
  : RJ-45 connectors (2pcs)
  : Junction box
  : Fixing set
  : Сlip connector
  : CD with manuals and software
  : Package
