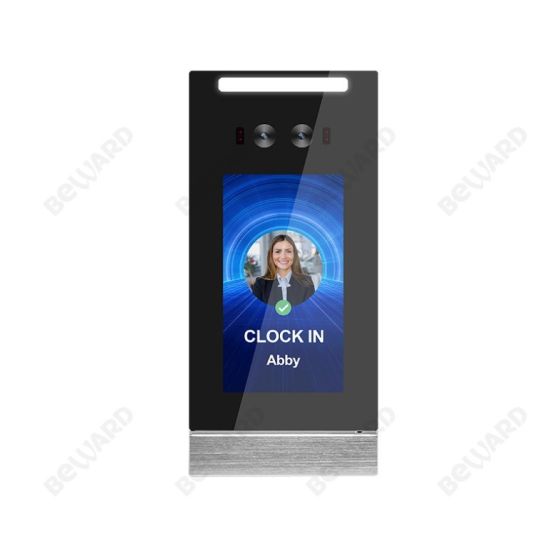

IP65 Waterproof Face Access Control System Electronic Turnstile

IP65 Waterproof face access control system electronic turnstile
Product Description
5 inch Standalone Face recognition terminal, IP54 (Plastic case)
1x B/W Camera lens,1x color camera lens.2MP
6MM focal lens
Support Real Time Living Detection
Real face recognized accuracy 99% and Speed lens than 0.8seconds
Using Linux operating system,security system stability
Outdoor IP66 waterproof and dustproof
ISP TFT monitor
From -30 ° C to + 60 ° C environment for long-term stable operation
ISP algorithm face partial exposure
Wiegand protocol( (WG26/WG34)) input/output & relay out
HISILICON Hi3516D CPU+1G memory+8G flash
Support 10000+ face matching library and 60,000+ face recognition records
SDK and HTTP protocol  Provided
Specifications:
Hardware
Processor
Sextuple processor + 2G memory + 32G flash
Operating system
Linux Operating system
Storage
Support TF card storage
Camera module
U21R
Sensor
1/2.8" Progressive Scan CMOS
Lens
4.9mm
(
optional
)
Performance
Recognition height
1.2~2.2 meters
,
Angle can be adjusted
Recognition distance
0.5~5 meters
,
depends on lens
Face angle
30 degrees left and right, 30 degrees up and down
Recognition time
Less than 1 second
Function
Support 60,000 capture library, real-time capture, support 10,000 list library
Interface
Switch  inputs
1ch switch input
Power
DV12V/3A
Network Interface
1x RJ45 10M / 100M Adaptive Ethernet port
Wiegand Interface
1ch Wiegand interface input/output
USB interface
1ch  USB interface
Camera Data
Camera
Two cameras: 1x B/W camera ; 1x color camera
Effective pixels
2MP
,
1920*1080
Min Illumination
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR
≥50db(AGC OFF)
WDR
≥120db
Video Coding
H.265 Main Profile /H.264 BP/MP/HP /MJPEG
Resolution
Main stream:50Hz: 25fps (1920×1080,1280×720)
60Hz: 30fps (1920×1080,1280×720)
Sub stream:720*576
,
1-25(30)fps/640*480
,
1-25(30)fps
320*240
,
1-25(30)fps
Product Images :
Company Information
Shenzhen Wellcam Co,Ltd being a branch company of Beward Co,Ltd in China (www.beward.ru) was established
in 2008 as a developer and manufacturer ,which is specialied  in ip video surveilance security camera products
with stong and rich experienced R&D team for moren than 10 years in security fields.
we protect our customers by manufacturing high-quality  and reliable products ,
provide special products customization services .
Our Service
1.  we can offer OEM&ODM services
2.  All software free provide , and technical support after-service
3.  long time warranty: 3 Years
4. 24 hours online service
Certification
Model NO. : B2002FR-5I-WM-L06
Recognition Time : Less Than 1 Second
Recognition Distance : 0.5~5 Meters
Operating System : Linux Operating System
Protocols : HTTP and Sdk
Processor : Sextuple Processor + 2g Memory
Face Angle : 30 Degrees Left and Right, 30 Degrees up and Down
Face Capacity : More Than 10 000
Face Records : 600000
Effective Pixels : 2MP,1920*1080
Lens : 4.9mm(Optional)
Sensor : 1/2.8" Progressive Scan CMOS
Transport Package : Carton Packing
Specification : 5 inch screen
Trademark : wellcam
Origin : China
HS Code : 8543709990
Production Capacity : 1000PCS/Day
