Access Control System Turnstile Open API Document Company Management Machine

Access Control System Turnstile Open API Document Company Management Machine
Product Advantage:
our own developed face tracking exposure algorithm(linear mode), WDR≥110DB
own patent protected file storage system (not Linux's original file system)
used all glass material aspheric lens
adopted own top-class face recogntion algorithm
Stable quality control, all electronic components choosed from
first-line suppliers, such as Samsung brand memory and Flash
Hardware&software Customerized service, protect customer own design and confidential data
In addition, We provide face recognition SDK for secondary development, making it easier for
partners who are professional at face recognition algorithm and Face search APP design.
Our self-developed face recognition platform (
FaceGateMngPlatform
) is also available for partners
who lack good enough development capabilities.

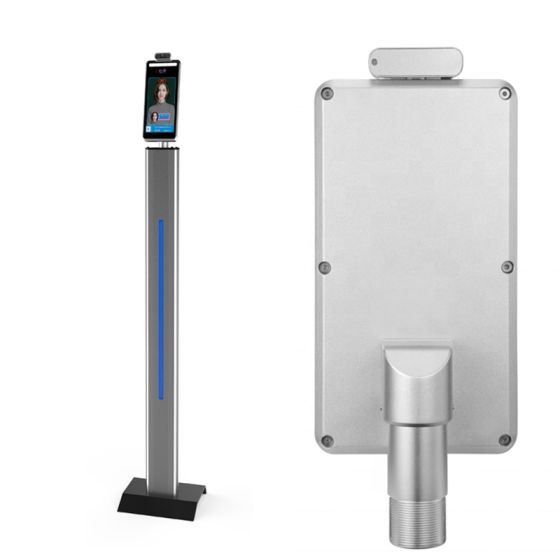

Detailed Photos
Product Parameters
Hardware
Processor
Sextuple processor + 2G memory + 32G flash
Operating system
Linux Operating system
Storage
Support TF card storage
Camera module
U21R
Sensor
1/2.8" Progressive Scan CMOS
Lens
6mm
(
optional
)
Performance
Recognition height
1.2~2.2 meters
,
Angle can be adjusted
Recognition distance
0.5~5 meters
,
depends on lens
Face angle
30 degrees left and right, 30 degrees up and down
Recognition time
Less than 1 second
Function
Support 250,000 capture library, real-time capture, support 65,000 list library
Interface
Switch  inputs
1ch switch input
Power
DV12V/3A
Network Interface
1x RJ45 10M / 100M Adaptive Ethernet port
Wiegand Interface
1ch Wiegand interface input/output
USB interface
1ch  USB interface
Camera Data
Camera
Two cameras: 1x B/W camera ; 1x color camera
Effective pixels
2MP
,
1920*1080
Min Illumination
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR
≥50db(AGC OFF)
WDR
≥120db
Video Coding
H.265 Main Profile /H.264 BP/MP/HP /MJPEG
Resolution
Main stream:50Hz: 25fps (1920×1080,1280×720)
60Hz: 30fps (1920×1080,1280×720)
Sub stream:720*576
,
1-25(30)fps/640*480
,
1-25(30)fps
320*240
,
1-25(30)fps
Company Profile
Our Advantages
Our advantages:
1.Make the reliable IP security surveillance cameras used for a professional surveillance project
2.Strong and experienced R&D engineer team, offer SDK&API for you, meanwhile, we can help and support you to develop, revise and integrate into your own system
3.As a developer of professional software and web applications for managing video surveillance systems, we developing competitive and reliable products that meet the requirement of our customers.
FAQ
Q: Do you sell at retail?
A: Sorry,we are factory and it's need technical person to install it,so we are not sell to personal user directly,thanks.
Q: Are you trading company or manufacturer?
A: We are manufacturer and provide factory price directly.
Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
Model NO. : B2002FR-8I-CM-BTH-L06
Transport Package : Paper Box
Specification : 2KG
Trademark : Beward
Origin : China
Production Capacity : 50000/Month
Hardware :
Processor : Sextuple processor + 2G memory + 32G flash
Operating system : Linux Operating system
Storage : Support TF card storage
Camera module : U21R
Sensor : 1/2.8" Progressive Scan CMOS
Lens : 6mm(optional)
Performance :
Recognition height : 1.2~2.2 meters,Angle can be adjusted
Recognition distance : 0.5~5 meters,depends on lens
Face angle : 30 degrees left and right, 30 degrees up and down
Recognition time : Less than 1 second
Function : Support 250,000 capture library, real-time capture, support 65,000 list library
Interface :
Switch  inputs : 1ch switch input
Power : DV12V/3A
Network Interface : 1x RJ45 10M / 100M Adaptive Ethernet port
Wiegand Interface : 1ch Wiegand interface input/output
USB interface : 1ch  USB interface
Camera Data :
Camera : Two cameras: 1x B/W camera ; 1x color camera
Effective pixels : 2MP,1920*1080
Min Illumination : Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR : ≥50db(AGC OFF)
WDR : ≥120db
Video Coding : H.265 Main Profile /H.264 BP/MP/HP /MJPEG
Resolution : Main stream:50Hz: 25fps (1920×1080,1280×720)                       60Hz: 30fps (1920×1080,1280×720)
