Product Description
Features&Advantages
Support real time live detection
Support human body tp measurement and high temperature alarm
Support tp data interface protocol docking
Support tracking of personnel movements under strong backlight conditions
Unique live face recognition algorithm to accurately recognize faces, face recognition time is less than 0.5s
Built-in domestic CPU
Using Linux operating system, better system stability
The camera uses H.265 Main Profile encoding, compatible with NVR and other storage devices through the ONVIF protocol
Support TF card storage, pictures are stored continuously for 1 year or longer (depends on TF card capacity)
Mean time between failures MTBF>50000 H
Support 24000 face matching library and 160,000 face recognition records
Rich interface protocol, support TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocol, Windows/Linux
Specifications:
Model
B2002FR-CM-TM-L06
Hardware
Processor
Dual Core Processor(Hi3516D V300)+ 1G memory + 16G flash
Operating system
Linux Operating system
Storage
Support TF card storage
Viewing angle
Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Sensor
1/2.8" Progressive Scan CMOS(IMX307)
Lens
6mm
Speaker
voice playback content can be customized
Tp measurement performance
Measurement range
16ºC - 40ºC (Indoor without wind)
Tp measurement
Sensor
Infrared Thermopile
Medical-grade sensor
Measurement accuracy
±0.3ºC
Tp resolution
0.1ºC
Tp measurement distance
≤40cm
Measurement response time
300ms
Performance
Recognition height
1.2~2.2 meters, angle adjustable
Recognition distance
0.5~1.5 meters, depends on lens
Recognition time
Less than 0.
5
second
s
Storage capacity
16
0,000 capture records
Face capacity
24
000pcs

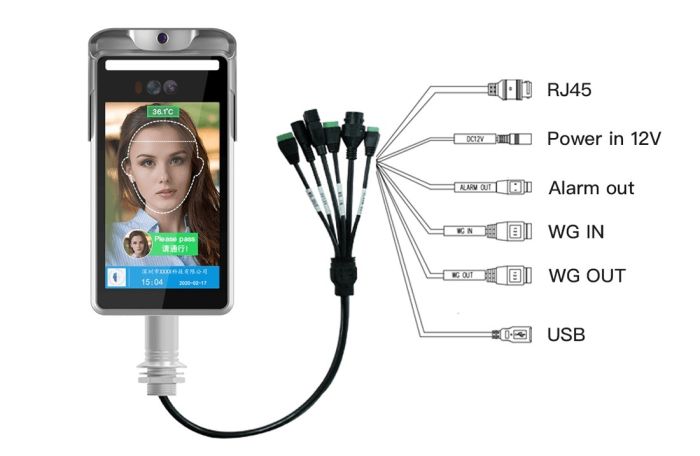

Product Images :
Company Information
Shenzhen Wellcam Co,Ltd being a branch company of Beward Co,Ltd in China (www.beward.ru) was established
in 2008 as a developer and manufacturer ,which is specialied  in ip video surveilance security camera products
with stong and rich experienced R&D team for moren than 10 years in security fields.
we protect our customers by manufacturing high-quality  and reliable products ,
provide special products customization services .
Our Service
1.  we can offer OEM&ODM services
2.  All software free provide , and technical support after-service
3.  long time warranty: 3 Years
4. 24 hours online service
Certification
Model NO. : B2002FR-8I-WM-VTM-L06
Recognition Time : Less Than 1 Second
Temperature Measurement Distance : Less Than 40cm
Measurement Accuracy : +-0.3
Face Records : 160000
Face Capacity : More Than 24000
Operating System : Linux Operating System
Protocols : HTTP and Sdk Mqtt HTTP
Processor : Sextuple Processor + 2g Memory
Face Angle : 30 Degrees Left and Right, 30 Degrees up and Down
Effective Pixels : 2MP,1920*1080
Lens : 6mm(Optional)
Sensor : 1/2.8" Progressive Scan CMOS
Transport Package : Carton Packing
Specification : 8 inch screen
Trademark : wellcam
Origin : China
HS Code : 8543709990
Production Capacity : 1000PCS/Day
