4MP WDR 120dB CCTV Hidden Security Cameras Support Remote Monitoring

Product Description

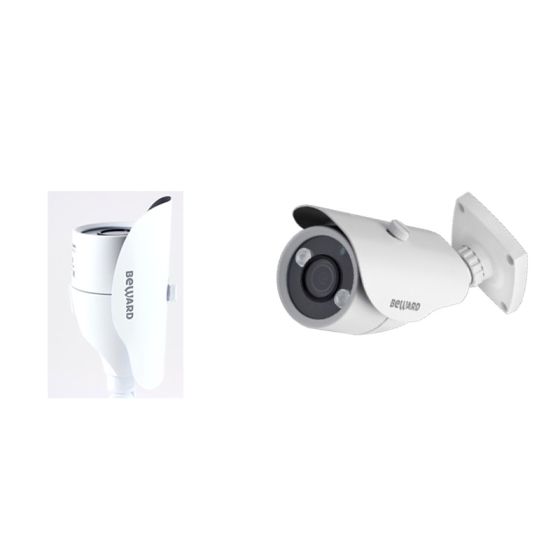

4MP WDR 120db CCTV Hidden Security Cameras Support Remote Monitoring
Outdoor
professional
4MP
IP camera
B4230RCVZ
with
hardware WDR
and
motorized lens
is convenient for installation and operation.The camera supports the "day / night" mode, has a built-in
IR illumination
and an electromechanical IR filter.Compared to 2MP IP cameras,conventional higher resolution cameras,when switched to 2MP mode,have a smaller angle of view when using the same lens, and lower sensitivity at the same angle of view.
The BEWARD B4230RCVZ model is free
from this drawback
:when switching to 2 megapixel mode,the
viewing angle does not change
,and the
sensitivity remains
close to 2MP cameras thanks to the advanced
OmniBSI-2 sensor
.
The B4230RCVZ
supports a variety of power connections,including
PoE
,to simplify the IP camera installation process and increase economic benefits.
Remote lens control
The presence of
a varifocal lens drive
with a focal length from 2.8 to 8.0 mm allows
remote adjustment of the camera's viewing angle
- both during commissioning of the system and during operation if it is necessary to change the field of view. And if for some reason the focus is lost (for example, due to vibration at the installation site),you can adjust the focus of the lens remotely manually using the software or via a web browser.This functionality greatly
speeds up installation
(you just need to position the IP-camera in the desired direction) and
makes it easier to use
,especially when installing the camera in hard-to-reach places and in difficult weather conditions.
Features:
4 MP
IP camera with hardware WDR
Hardware
2x high dynamic range
2xWDR up to 120dB
Revolutionary
H.265
Codec
:
Up to 50% Compression Efficiency
Higher video quality and half the video stream
Vandal-proof
outdoor
design
,
IP66
, from -45 to + 50 ° C
Motorized lens
3rd generation IR LEDs, illumination range
up to 20 m
Day / Night and Electromechanical
IR Cut Filter
Digital Noise Reduction (2D /
3DNR
/ SmartNR)
Dual encoding of video stream in
H.265 / H.264
and
MJPEG
formats
Motion and alarm detection
2 power options: 12V (DC) or
PoE
Technical Specification:
General characteristics
Sensor
4 MP, CMOS 1/3 "OmniBSI-2, Day / Night
Sensitivity
0.05 lux (day) / 0.005 lux (night)
Lens
Motorized, 2.8-8mm, F.1.4
Viewing angle
20 to 50 ° (horizontal), 34 to 83 ° (vertical)
Magnification
Digital, web-based
WDR
Hardware (up to 120 dB)
Noise suppression
2DNR (3 modes of operation), 3DNR (level control), SmartNR
Shutter speed
1/25 to 1/8000 sec.
Shutter mode
Automatic (setting the maximum value)
Signal / Noise
Not less than 50 dB
Additionally
Electromechanical IR cut filter, progressive scan
Video
Compression format
H.265 MP, H.264 MP / BP / HP, Motion JPEG
Video stream
Dual encoding: H.265 / H.265, H.265 / H.264, H.264 / H.264, H.265 / MJPEG,
H.264 / MJPEG, MJPEG / MJPEG
Resolution
Main stream: 2590x1520 (4MP), 2560x1440 (4MP), 2240x1260 (3MP),
1920x1080 (Full HD)
Alternate Stream: 1280x750, 1280x720 (HD), 960x560, 960x540,
640x540, 640x376, 640x360, 480x280, 480x268
Frame rate
Up to 25 fps for all resolutions
Transmission speed
32 kbps to 16 Mbps (VBR / CBR modes)
Image options
Brightness, contrast, sharpness, saturation, gamma correction,
tint, video mask (simple, up to 4 zones), flip, reflection, BLC, AGC,
white balance (auto, manual)
Titles
Title, date, time, frame rate, bit rate
Backlight
LEDs
3rd generation IR LEDs (3 pcs.)
Control
Automatic on / off.
Turning on
By sensor, by video signal, by schedule
Wavelength
850 nm
Lighting angle
60 °
Range
20 meters
Network and interfaces
Network interface
10Base-T / 100Base-TX Ethernet port
Network protocols
TCP / IP, IPv4 / v6, HTTP, HTTPS, FTP, SMTP, DNS, DDNS, DHCP, PPPoE (CHAP, PAP),
PPTP, UPnP, RTP, RTSP, SSL, UDP, NTP, IGMP, ICMP, ARP, Bonjour, ONVIF 2.01
Compound
DHCP, static address
Security
Multi-level password protected access
Users
Up to 3 accounts
Non-volatile memory
Real time clock
Company Profile
Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.
Model NO. : B4230RCVZ
Kind : Autofocus Lens
Certification : CE, FCC, RoHS, ISO9001: 2000
Feature : Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC
Effective Distance : 10-30m
Sensor Size : 1/3 inch
Remote Control : With Remote Control
Transport Package : Standard Package
Specification : 400g
Trademark : Beward
Origin : China
Production Capacity : 20000
Sensor : 4 MP, CMOS 1/3 "OmniBSI-2, Day / Night
Sensitivity : 0.05 lux (day) / 0.005 lux (night)
Lens : Motorized, 2.8-8mm, F.1.4
Viewing angle : 20 to 50 ° (horizontal), 34 to 83 ° (vertical)
Magnification : Digital, web-based
WDR : Hardware (up to 120 dB)
Noise suppression : 2DNR (3 modes of operation), 3DNR (level control), SmartNR
Shutter speed : 1/25 to 1/8000 sec.
Shutter mode : Automatic (setting the maximum value)
Signal / Noise : Not less than 50 dB
Additionally : Electromechanical IR cut filter, progressive scan
Compression format : H.265 MP, H.264 MP / BP / HP, Motion JPEG
Video stream : Dual encoding: H.265 / H.265, H.265 / H.264, H.264 / H.264, H.265 / MJPEG,
  : H.264 / MJPEG, MJPEG / MJPEG
Resolution : Main stream: 2590x1520 (4MP), 2560x1440 (4MP), 2240x1260 (3MP),
  : 1920x1080 (Full HD)
  : Alternate Stream: 1280x750, 1280x720 (HD), 960x560, 960x540,
  : 640x540, 640x376, 640x360, 480x280, 480x268
Frame rate : Up to 25 fps for all resolutions
Transmission speed : 32 kbps to 16 Mbps (VBR / CBR modes)
Image options : Brightness, contrast, sharpness, saturation, gamma correction,
  : tint, video mask (simple, up to 4 zones), flip, reflection, BLC, AGC,
  : white balance (auto, manual)
Titles : Title, date, time, frame rate, bit rate
LEDs : 3rd generation IR LEDs (3 pcs.)
Control : Automatic on / off.
Turning on : By sensor, by video signal, by schedule
Wavelength : 850 nm
Lighting angle : 60 °
Range : 20 meters
Network interface : 10Base-T / 100Base-TX Ethernet port
Network protocols : TCP / IP, IPv4 / v6, HTTP, HTTPS, FTP, SMTP, DNS, DDNS, DHCP, PPPoE (CHAP, PAP),
  : PPTP, UPnP, RTP, RTSP, SSL, UDP, NTP, IGMP, ICMP, ARP, Bonjour, ONVIF 2.01
Compound : DHCP, static address
Security : Multi-level password protected access
Users : Up to 3 accounts
Non-volatile memory : Real time clock
