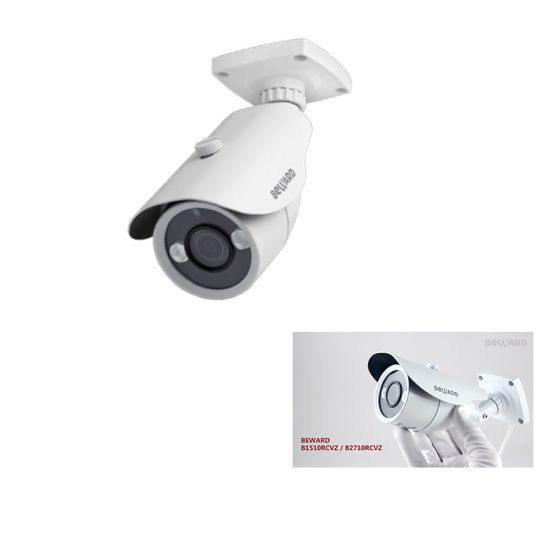

IP66 Mini Outdoor Bullet Security Intelligent CCTV IP Camera

Product Description
IP66 Mini Outdoor Bullet Security Intelligent CCTV IP Camera
The
B2710RCVZ outdoor
professional IP camera
with motorized lens
is convenient for installation and operation.
The 2MP
SONY Exmor
CMOS
sensor
with high sensitivity provides excellent clarity and accurate color reproduction.The camera supports the "day/night" mode,has a built-in IR illumination and an electromechanical
IR filter
.Signal processing systems such as
DWDR
and
2D/3DNR
have been successful in improving observation performance in contrasting or low light conditions.
B2710RCVZ
supports a variety of power connections, including
PoE
,which simplifies the IP camera installation process and increases the economic benefit.
Remote lens control
The presence of
a varifocal lens drive
with a focal length of 2.8 to 8 mm allows
remote adjustment of the camera's viewing angle
- both during commissioning of the system and during operation if it is necessary to change the field of view.And if for some reason the focus is lost (for example,due to vibration at the installation site),you can adjust the focus of the lens remotely manually using the software or via a web browser.This functionality greatly
speeds up installation
(you just need to position the IP-camera in the desired direction) and
makes it easier to use
,especially when installing the camera in hard-to-reach places and in difficult weather conditions.
Features:
Motorized lens
Excellent sensitivity,excellent color and detail
Outdoor version,
from -45 to + 50 ° C, IP66
2 MP
Progressive Scan
Exmor
CMOS sensor
Up to 25 fps at any resolution
3rd generation IR LEDs, illumination range
up to 20 m
Day / Night and Electromechanical
IR Cut Filter
Dual encoding of video stream in
H.264
and MJPEG formats
Digital
High
Dynamic Range (
DWDR
)
Digital Noise Reduction (2D/
3DNR
)
Image recording to
microSDHC
memory
card
(optional)
Two power options,including
PoE
Watching videos over the Internet,from mobile devices,through the cloud service CamDrive
Technical Specification:
General characteristics
Sensor
2 MP, CMOS 1 / 2.9 '' SONY Exmor, Day / Night
Sensitivity
0.01 lux (day) / 0.005 lux (night) / 0.001 lux (DSS @ 2fps) / 0 lux (with IR illumination on)
Lens
Motorized, 2.8 - 8mm, F1.6
Horizontal viewing angle
32 to 78 ° (horizontal), 24 to 62 ° (vertical)
Focusing
Manually via WEB interface
Magnification
Digital: on / off
WDR
Digital, 3 presets
Noise suppression
2D / 3DNR
Shutter speed
1/2 to 1/8000 sec. (automatic, setting max.value)
Additionally
Mechanical IR cut filter, progressive scan
Video
Compression format
H.264 MP / BP, Motion JPEG
Video stream
Dual encoding: H.264 / MJPEG, H.264 / H.264, MJPEG / MJPEG
Resolution
Main stream: 1920x1080 (Full HD), 1280x720 (720p)
Alternative stream: 960x528, 640x352, 480x256
Frame rate
Up to 25 fps for all resolutions
Transmission speed
32 kbps to 16 Mbps
Image options
Brightness, Contrast, Sharpness, Saturation, Gamma Correction, Hue,
video mask (up to 4 zones), rotate, flip, flip,
AGC, automatic white balance
Titles
Text, date, time, frame rate, bit rate
Backlight
LEDs
3rd generation IR LEDs (2 pcs.)
Turning on
By sensor, by video signal, by schedule
Wavelength
850 nm
Range
Up to 20 m
Network and interfaces
Network interface
10Base-T / 100Base-TX Ethernet port
Network protocols
TCP / IP, IPv4 / v6, HTTP, HTTPS, FTP, SMTP, DNS, DDNS, DHCP,
PPPoE (CHAP, PAP), PPTP, RTP, RTSP, SSL, UDP, NTP, ICMP, ARP, ONVIF v2.01
Compound
DHCP, static address
Security
Multi-level password protected access
Members
Up to 3 accounts
Additionally
Support for microSDHC cards (up to 32 GB) optional
Recording and events
Events
Motion detection, network error
Motion detection
Built-in detector, up to 4 detection zones (sensitivity adjustment)
Sending by mail
Frames (with indication of resolution)
FTP recording
Frames (with indication of resolution),
video (optionally from the main or alternative stream)
Writing to a memory card
Frames (with indication of resolution),
video (optionally from the main or alternative stream)
Exploitation
Food
12 V 0.38 A (DC), PoE IEEE 802.3 af (Class 0)
Power consumption
Up to 4.6 W (DC), up to 6.6 W (PoE)
Working temperature range
From -45 to + 50 ° С
Protection class
IP66
Dimensions (wxd)
85x200 mm
The weight
380 g (net)
Control
Web interface, professional freeware
System requirements
2.8 GHz, Pentium 4 or AMD, 256 MB RAM video card,
1 GB RAM, network card
Microsoft Internet Explorer 9.0 or higher under Microsoft Windows 8/7 / Vista
Company Profile
Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.
Model NO. : B2710RCVZ
Kind : Autofocus Lens
Certification : CE, FCC, RoHS, ISO9001: 2000
Feature : Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC
Effective Distance : 10-30m
Sensor Size : 1/3 inch
Remote Control : With Remote Control
Transport Package : Standard Package
Specification : 400g
Trademark : Beward
Origin : China
Production Capacity : 20000
Sensor : 2 MP, CMOS 1 / 2.9 '' SONY Exmor, Day / Night
Sensitivity : 0.01 lux (day) / 0.005 lux (night) / 0.001 lux (DSS @ 2fps) / 0 lux (with IR illumination on)
Lens : Motorized, 2.8 - 8mm, F1.6
Horizontal viewing angle : 32 to 78 ° (horizontal), 24 to 62 ° (vertical)
Focusing : Manually via WEB interface
Magnification : Digital: on / off
WDR : Digital, 3 presets
Noise suppression : 2D / 3DNR
Shutter speed : 1/2 to 1/8000 sec. (automatic, setting max.value)
Additionally : Mechanical IR cut filter, progressive scan
Compression format : H.264 MP / BP, Motion JPEG
Video stream : Dual encoding: H.264 / MJPEG, H.264 / H.264, MJPEG / MJPEG
Resolution : Main stream: 1920x1080 (Full HD), 1280x720 (720p)
  : Alternative stream: 960x528, 640x352, 480x256
Frame rate : Up to 25 fps for all resolutions
Transmission speed : 32 kbps to 16 Mbps
Image options : Brightness, Contrast, Sharpness, Saturation, Gamma Correction, Hue,
  : video mask (up to 4 zones), rotate, flip, flip,
  : AGC, automatic white balance
Titles : Text, date, time, frame rate, bit rate
LEDs : 3rd generation IR LEDs (2 pcs.)
Turning on : By sensor, by video signal, by schedule
Wavelength : 850 nm
Range : Up to 20 m
Network interface : 10Base-T / 100Base-TX Ethernet port
Network protocols : TCP / IP, IPv4 / v6, HTTP, HTTPS, FTP, SMTP, DNS, DDNS, DHCP,
  : PPPoE (CHAP, PAP), PPTP, RTP, RTSP, SSL, UDP, NTP, ICMP, ARP, ONVIF v2.01
Compound : DHCP, static address
Security : Multi-level password protected access
Members : Up to 3 accounts
Additionally : Support for microSDHC cards (up to 32 GB) optional
Events : Motion detection, network error
Motion detection : Built-in detector, up to 4 detection zones (sensitivity adjustment)
Sending by mail : Frames (with indication of resolution)
FTP recording : Frames (with indication of resolution),
  : video (optionally from the main or alternative stream)
Writing to a memory card : Frames (with indication of resolution),
  : video (optionally from the main or alternative stream)
Food : 12 V 0.38 A (DC), PoE IEEE 802.3 af (Class 0)
Power consumption : Up to 4.6 W (DC), up to 6.6 W (PoE)
Working temperature range : From -45 to + 50 ° С
Protection class : IP66
Dimensions (wxd) : 85x200 mm
The weight : 380 g (net)
Control : Web interface, professional freeware
System requirements : 2.8 GHz, Pentium 4 or AMD, 256 MB RAM video card,
  : 1 GB RAM, network card
  : Microsoft Internet Explorer 9.0 or higher under Microsoft Windows 8/7 / Vista
