Keypad Access Control Doorbell Intercom Camera

Keypad Access Control Doorbell Intercom Camera

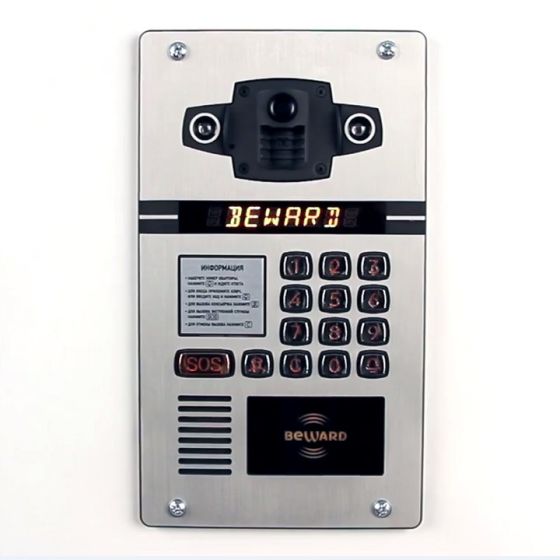

Vandal-proof IP Video door station DKS15120 with SIP support allows to creat an IP intercom system, based on a standard local IP network, without any additional applications, communications, and equipment. Multiple subscriber SIP door station Beward DKS15120 can be easily integrated into an Ethernet network and into a multi-apartment analog network.
Main Features
Ø
Intelligent echo cancellation
Ø
Vandal-proof design
Ø
Ste emergency call and concierge button
Ø
Support for RFID 125 kHz and 13.56 MHz
Ø
Video transmission 1.3 megapixels
Ø
Ability to replace the video module without removing or disassembling the doorphone
Ø
False lens
Ø
Duplex audio
Ø
SIPv2 protocol support
Ø
IR illumination up to 10 meters
Ø
Operating temperature range from -50 to + 60 ° С
Ø
Support for 9999 subscribers
Ø
8500 RFID keys
Ø
Opening the door according to the individual code of the subscriber
Ø
Registration of an RFID key for an individual user code
Ø
5 calling directions per one subscriber
Ø
Possibility of calling up to 600 subscribers via coordinate-matrix analog networks (option)
Ø
Backup storage for 8500 RFID keys and 1500 codes for firmware or restart of the doorphone
Ø
Removable memory with all settings (USB, pre-installed)
Ø
Installed microSDHC card at least 4 GB, write to a memory card
Ø
Readiness for working off the basic functionality 1 second after the power is applied (access to the entrance, call to analog
pipes)
Ø
Frost resistant 8-character LED display
Ø
Tamper switch
Ø
Possibility of connecting an additional door and a 1-Wire reader for it
Ø
Power relay output
General
Image sensor
1,3 MP, Color, 1/3'' SONY Exmor, Day/Night
Sensitivity
0.01 lux (Day) / 0.003 lux (Night) / 0 lux (IR illumation)
Lens
2 mm, F2.0
Field of view
137° (horizontal), 103° (vertical)
Zoom
Digital, via the WEB UI
WDR
Digital, 3 Presets
Noise reduction
2D/3DNR (level adjustment), SmartNR
Shutter time
1/25 ~1/8000 s (Auto, maximum value setting)
Signal/ Noise ratio
50 dB or greater
Synchronization
Light source synchronization 50, 60 Hz
Other features
Elecretic Mechanical IR filter, Progressive Scaning
Video
Compression
H.264 BP/MP, Motion JPEG
Video streaming
Dual codec: H.264/MJPEG, H.264/H.264, MJPEG/MJPEG
Resolution
Main Stream: 1280x960 (SXGA), 1280x720 (HD)
Sub Stream: 720x576, 640x480, 320x240
Framerate
Up to 25 fps for all resolutions
Bitrate
32 kbps ~ 16 Mbps, CBR, VBR
Image settings
Brightness, contrast, sharpness, saturation, exposure, color grading, hue,
quality, rotation, flip (vertical/horizontal), ART, white balance, exposure
time (set gain and minimum value)
Subtitles
Title, date, time, weekday, bitrate, framerate,
number of connections
Audio
Audio output
Built-in speaker
Audio input
Built-in microphone
Compression
G.711 (a-law, u-law), G.726
Other features
Duplex
Illumination
IR illumination
IR LED (3rd generation, 2 pcs)
Control
Auto, ON/OFF
Operating mode
IR sensor, video signal, continuous
Wavelength
850 nm
IR distance
Up to 10 m
Network & interfaces
Network interface
10Base-T/100Base-TX
Network protocols
TCP/IP, SIP v.2.0, VPN, HTTP, HTTPS, FTP, SMTP, DDNS, DHCP, PPPoE,
RTP, RTSP, UPnP, UDP, NTP, ONVIF v.2.41, Modbus TCP
Connection
DHCP, static IP address
Users
Up to 3 accounts
Number of doors
2 pcs.
Number of door opening sensors
2 pcs.
IP intercom break sensor
Yes
Power relay
1 pcs.
Analog video output
PAL/NTSC 720H
Other features
Supports microSDHC (up to 32GB), USB2.0, RS-232TTL or 1-wire
Recording & events
Events
Motion detection, network failure, call button pressing
Motion detection
Build-in video motion detector, up to 4 detection zones (sensitivity adjustment)
E-mail notification
At events: Images
FTP, memory card
At events: Images, video
Operation
Power
12 V 1 A (DC)
Power consumption
12 W
Switching current
Up to 1 A
Operating temperature
-50°C ~ +60°С
Ingress protection
IP66
Housing
Vandal-resistant
Housing material
Metal
Weight
1100 g
Dimensions (WxHxD)
External panel: 262x150 mm
Inner part of the housing - mounting hole: 224x129 mm
Housing Depth (Flush) 32 mm
System requirements
Microsoft Internet Explorer 9.0 Windows 8/7/Vista
Package contents
Package contents
IP Door Station
Terminal blocks
Package
We offer free management software and mobile apps, SDK/API files are available for Integration works.
Our advantages:
1.Make the reliable IP security surveillance cameras used for a professional surveillance project
2.Strong and experienced R&D engineer team, offer SDK&API for you, meanwhile, we can help and support you to develop, revise and integrate into your own system
3.As a developer of professional software and web applications for managing video surveillance systems, we developing competitive and reliable products that meet the requirement of our customers.
FAQ:
Customer: What's your payment method?
We accept payment by credit card and T/T on Alibaba Trade Assurance and Paypal, Western Union, or as the method of custom.
T/T: 30% deposit, the balance needs to be paid before delivery
L/C: the balance need to be irrevocable L/C at sight
Customer: How do you ensure your quality?
We are ISO 9001factory with a strict inspection for each process.
Customer: What is the lead time?
Depends on the order quantity and detailed OEM request, normally 2-3 days for sample(Non-customized), 5-15 days for mass production.
Customer: Your price is lowest in the market?
No, but the professional service and quick response will save a lot of your energy, quality is our culture.
Customer: Do you post-sale service?
Yes, we could provide on-line technical support, If any quality issue. We offer free repair during the warranty time.
Customer: How long is the warranty period?
2 years
Customer: What transformations are available?
By air, by sea or customer indicated agent
May I have a sample order?
Yes, a sample order is available.
Do you have any MOQ limit for orders?
MOQ 1 piece for sample test.
How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3- 9 days to arrive. Airline and sea shipping is optional.
How to proceed with an order?
Step 1: Let us know your requirements or application.
Step 2: We quote according to your requirements or our suggestions.
Step 3: The customer confirms the samples and places a deposit for the formal order.
Step 4: We arrange the production.
How to deal with the faulty?
Firstly, Our products are produced in a strict quality control system and the lowest defective rate is under control.
Secondly, during the guarantee period, for the defective unit, we will repair them and resend them to you or we can discuss the solution including sending a new unit for replacing according to the real situation.
Do you offer OEM service?
Yes, We accept OEM both for hardware and software as well as packing box.
What's your MOQ for OEM service?
MOQ for software OEM is 100pcs.
MOQ for packing OEM box is 500pcs.
MOQ for hardware OEM is 500pcs, according to detailed requests.
Model NO. : DKS15122
Name : Building Intercom
Functionccess : Access Control
Water-Proof : IP54
Subscriber : 9999
IR : 10 Meters
RFID : 8500 RFID Keys
Emergency Call Button : Supports
Duplex : Two Way Talk
Working Temperature : -60 - +50
SIP : Sipv2
Vandal-Proof : Ik10
Resolution : 1.3 Megapixel
Call Forwarding : Supports
RFID 125 kHz : 13, 56MHz
Mobile Apps : Andorid/ Ios
Transport Package : Carton Box
Specification : 1.5kgs
Trademark : Beward
Origin : Russia
HS Code : 8517699000
Production Capacity : 100000/Year
Image sensor : 1,3 MP, Color, 1/3'' SONY Exmor, Day/Night
Sensitivity : 0.01 lux (Day) / 0.003 lux (Night) / 0 lux (IR illumation)
Lens : 2 mm, F2.0
Field of view : 137° (horizontal), 103° (vertical)
Zoom : Digital, via the WEB UI
WDR : Digital, 3 Presets
Noise reduction : 2D/3DNR (level adjustment), SmartNR
Shutter time : 1/25 ~1/8000 s (Auto, maximum value setting)
Signal/ Noise ratio : 50 dB or greater
Synchronization : Light source synchronization 50, 60 Hz
Other features : Elecretic Mechanical IR filter, Progressive Scaning
Compression : H.264 BP/MP, Motion JPEG
Video streaming : Dual codec: H.264/MJPEG, H.264/H.264, MJPEG/MJPEG
Resolution : Main Stream: 1280x960 (SXGA), 1280x720 (HD)
  : Sub Stream: 720x576, 640x480, 320x240
Framerate : Up to 25 fps for all resolutions
Bitrate : 32 kbps ~ 16 Mbps, CBR, VBR
Image settings : Brightness, contrast, sharpness, saturation, exposure, color grading, hue,
  : quality, rotation, flip (vertical/horizontal), ART, white balance, exposure
  : time (set gain and minimum value)
Subtitles : Title, date, time, weekday, bitrate, framerate,
  : number of connections
Audio output : Built-in speaker
Audio input : Built-in microphone
Compression : G.711 (a-law, u-law), G.726
Other features : Duplex
IR illumination : IR LED (3rd generation, 2 pcs)
Control : Auto, ON/OFF
Operating mode : IR sensor, video signal, continuous
Wavelength : 850 nm
IR distance : Up to 10 m
Network interface : 10Base-T/100Base-TX
Network protocols : TCP/IP, SIP v.2.0, VPN, HTTP, HTTPS, FTP, SMTP, DDNS, DHCP, PPPoE,
  : RTP, RTSP, UPnP, UDP, NTP, ONVIF v.2.41, Modbus TCP
Connection : DHCP, static IP address
Users : Up to 3 accounts
Number of doors : 2 pcs.
Number of door opening sensors : 2 pcs.
IP intercom break sensor : Yes
Power relay : 1 pcs.
Analog video output : PAL/NTSC 720H
Other features : Supports microSDHC (up to 32GB), USB2.0, RS-232TTL or 1-wire
Events : Motion detection, network failure, call button pressing
Motion detection : Build-in video motion detector, up to 4 detection zones (sensitivity adjustment)
E-mail notification : At events: Images
FTP, memory card : At events: Images, video
Power : 12 V 1 A (DC)
Power consumption : 12 W
Switching current : Up to 1 A
Operating temperature : -50°C ~ +60°С
Ingress protection : IP66
Housing : Vandal-resistant
Housing material : Metal
Weight : 1100 g
Dimensions (WxHxD) : External panel: 262x150 mm
  : Inner part of the housing - mounting hole: 224x129 mm
  : Housing Depth (Flush) 32 mm
System requirements : Microsoft Internet Explorer 9.0 Windows 8/7/Vista
Package contents : IP Door Station
  : Terminal blocks
  : Package
