RFID Non-Contact Facial Time Recording Face Recognition Device Time Attendance Terminal

Product Description
RFID Non-Contact Facial Time Recording Face Recognition Device Time Attendance terminal
Description of Face Recognition Attendance Device
Face reader attendance machine with an infrared sensor and Beward Bi-Scan facial recognition technology.Which makes the recognition quickly and accurately with 0.3 seconds.The Bi-Scan facial recognition algorithm allow you to check if is the person wearing a mask and prevent walking via photo or video.
Functions of AI Face Recognition Time Attendance Machine
1. Attendcance check it
2. Multiple access verification(face recognition and RIFD card)
3. Mask Detection
4. Attendance report
5. Living detection

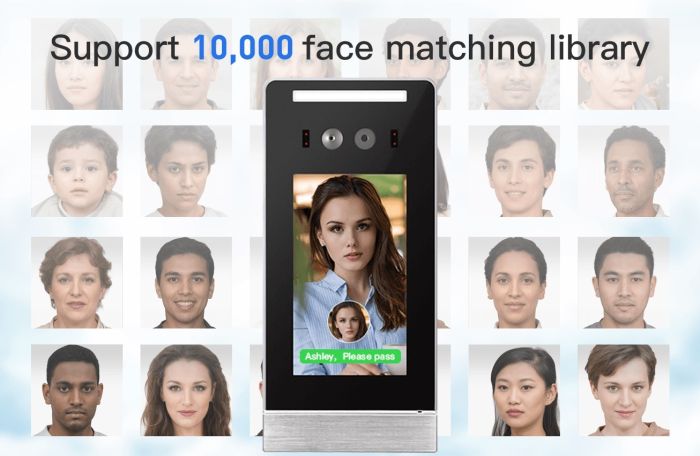

6. Support 10,000 face user capacity
7.. Work with RFID card reader through wiegand
Features of Time Attendance Access Control Terminal
1.
Using LINUX operating system,the system is stable
2.
5-inch IPS full-view high-definition display
3. Provide HTTP API for secondary development
4.
Configuration via the web interface for small objects
5. Support for human face tracking exposure in strong backlighting
6.
High safety,support living detection,anti false photo authentication
Technical Specification:
Chipset
Chipset: Hisilicon
OS: Linux
CPU: Dual-core
Memory: 1GB,8GB eMMC
Display
5-inch,1280*720
Sensor
Infrared Sensor
Two Camera
Dual-lens Camera (RGB+IR)
Fill Light
White LED
RFID Card Reader
Mifare S50,Mifare S70,ISO14443 TYPE-A ect compatible
Communications
Relay, WG26,WG34,RJ45
Face recognition
Distance : 0.5-1.5M
Height :1.2-2.2M
Time:less than 0.5s
Angle:30 degrees left and right, 30 degrees up and down
Capacity:10,000 users
Capture capacity:60,000 capture records
Camera
Two cameras,all-glass lens,visible light and near-infrared,supports live detection
Effective pixels
2.1MP effective pixels,1920*1080
SNR
≥50db(AGC OFF)
WDR
110db,ISP algorithm
Minimum illumination
Color 0.01Lux @F1.2(ICR);black white 0.001Lux @F1.2 (ICR)
Audio
Digital Audio Speaker
Operating temperature
-30ºC - +60ºC
Power Supply
12V/2A
Bracket (Optional)
Wall Mount Bracket
Dimensions (mm)
205(L) * 95(W) *20(H)mm
Company Profile
Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.
FAQ
Q: Do you sell at retail?
A: Sorry,we are factory and it's need technical person to install it,so we are not sell to personal user directly,thanks.
Q: Are you trading company or manufacturer?
A: We are manufacturer and provide factory price directly.
Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
Model NO. : B2002FR-5I-WM-L06
Sensor : 1/2.8" Progressive Scan CMOS
Recognition Distance : 0.5-1.5m
Recognition Time : 0.3-05.S
Face Capacity : 10, 000 Users
Capture Capacity : 60, 000 Records
WDR : 110dB
Screen Size : 5 Inch
Transport Package : Standard Package
Specification : 900g
Trademark : Beward
Origin : China
Production Capacity : 20000
  Chipset : Chipset: HisiliconOS: LinuxCPU: Dual-coreMemory: 1GB,8GB eMMC
Display : 5-inch,1280*720
Sensor : Infrared Sensor
Two Camera : Dual-lens Camera (RGB+IR)
Fill Light : White LED
RFID Card Reader : Mifare S50,Mifare S70,ISO14443 TYPE-A ect compatible
Communications : Relay, WG26,WG34,RJ45
 Face recognition : Distance : 0.5-1.5MHeight :1.2-2.2MTime:less than 0.5sAngle:30 degrees left and right, 30 degrees up and downCapacity:10,000 usersCapture capacity:60,000 capture records
Camera : Two cameras,all-glass lens,visible light and near-infrared,supports live detection
Effective pixels : 2.1MP effective pixels,1920*1080
SNR : ≥50db(AGC OFF)
WDR : 110db,ISP algorithm
Minimum illumination : Color 0.01Lux @F1.2(ICR);black white 0.001Lux @F1.2 (ICR)
Audio : Digital Audio Speaker
Operating temperature : -30ºC - +60ºC
Power Supply : 12V/2A
Bracket (Optional) : Wall Mount Bracket
Dimensions (mm) : 205(L) * 95(W) *20(H)mm
