Beward Vandalproof SIP IP Video Intercom

Product Description

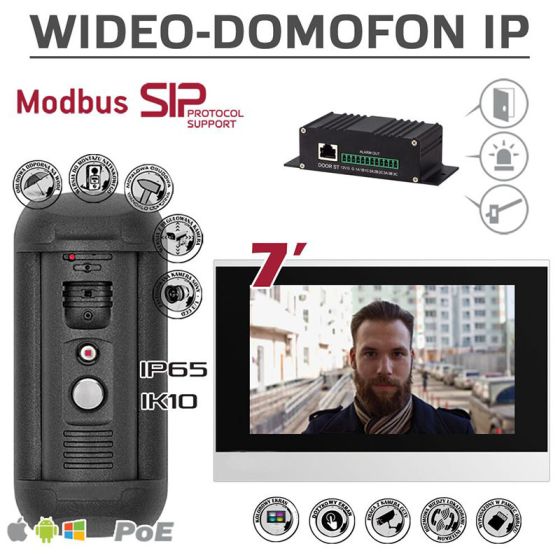

Beward Vandalproof SIP IP video intercom
1.
Why need video intercom?
Because it's will always help you to know who is at your door/gate,even you're outside,keepingyour company,home and property safety.You can see,hear and speak to visitors from anywhere and answer from your smartphone,tablet,sip ip phone(DTMF) or PC client software ect.So why not protect your safety?
2. How the ONVIF are helpful for system integrators?
Lots of surveillance security manufactures provide their products as ONVIF now,so it's very easy and flexible integrate them together into existing system.It's could save much time and cost.
Our this sip ip intercom support ONVIF,it's could compatible with any other support onvif NVR software/third software/device
3. How to registered sip ip phone with ip sip intercom system?
It's support SIP 2.0,can work with sip ip phone,sip pbx,sip server,sip application......Open door/lock via
DTMF.Also the SIP devices can call to door phone intercom via IP address
4. Built-in face recognition function,which is face access/open door,lock.....
5. Installation of some projects:
A.
DS06A(P) intercom used as a help point in the parking lot in Malaysia,when visitors press call button through intercom the call will be connected to the control center,which is our VMS center management software,and they will get help from the control center.
B.To help the people who need help on the high speed road or at the entrance of parking lot.
Technical Specification:
Image sensor
1,3 MP, Color, 1/3'' Exmor, Day/Night
Sensitivity
0.01 lux (Day) / 0.003 lux (Night) / 0 lux (IR Illumination)
Lens
3.7 mm, F2.0
WDR
Digital, 3 precets
Shutter time
1/25 ~ 1/8000 s (Auto, maximum value setting)
Compression
H.264 BP/MP, Motion JPEG
Video streaming
Dual codec:: H.264/MJPEG, H.264/H.264, MJPEG/MJPEG
Resolution
Main stream: 1280x960 (SXGA), 1280x720 (HD)
Sub stream: 720x576, 640х480, 320x240
Audio output
Built-in speaker
Audio input
Built-in microphone
Compression
G.711 (a-law, u-law), G.726
Other features
Full-Duplex
IR illumination
IR LED (3rd generation, 1 pcs)
Wavelength
850 nm
IR distance
Up to 10 m
Protocols
TCP/IP,SIP v.2.0,VPN,HTTP, HTTPS,FTP,SMTP,DDNS,DHCP,PPPoE,RTP,RTSP,UDP,NTP,
ONVIF v.2.41, Modbus TCP,Camdrive
Alarm output
1 channel (NO mode)
Events
Motion detection, network failure,call button pressing
Motion detection
Build-in video motion detector,up to 4 detection zones (sensitivity adjustment)
E-mail notification
At events: Images
FTP, memory card
At events: Images,video
Dimensions
73x166x51 mm
Weight
1kg
Company Profile
Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.
FAQ
Q: Do you sell at retail?
A: Sorry,we are factory and it's need technical person to install it,so we are not sell to personal user directly,thanks.
Q: Are you trading company or manufacturer?
A: We are manufacturer and provide factory price directly.
Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
Model NO. : DS06AP-3L
Resolution : 1280 X 960
SIP : Compatible with SIP PBX Ect
Onvif : Compatible with NVR Third Software
WDR : Digital WDR
Facial Recognition : Ion: Face Access/Unlock
Transport Package : Standard Package
Specification : 900g
Trademark : Beward
Origin : China
Production Capacity : 20000
Image sensor : 1,3 MP, Color, 1/3'' Exmor, Day/Night
Sensitivity : 0.01 lux (Day) / 0.003 lux (Night) / 0 lux (IR Illumination)
Lens : 3.7 mm, F2.0
WDR : Digital, 3 precets
Shutter time : 1/25 ~ 1/8000 s (Auto, maximum value setting)
Compression : H.264 BP/MP, Motion JPEG
Video streaming : Dual codec:: H.264/MJPEG, H.264/H.264, MJPEG/MJPEG
Resolution : Main stream: 1280x960 (SXGA), 1280x720 (HD)Sub stream: 720x576, 640х480, 320x240
Audio output : Built-in speaker
Audio input : Built-in microphone
Compression : G.711 (a-law, u-law), G.726
Other features : Full-Duplex
IR illumination : IR LED (3rd generation, 1 pcs)
Wavelength : 850 nm
IR distance : Up to 10 m
Protocols : TCP/IP,SIP v.2.0,VPN,HTTP, HTTPS,FTP,SMTP,DDNS,DHCP,PPPoE,RTP,RTSP,UDP,NTP,ONVIF v.2.41, Modbus TCP,Camdrive
Alarm output : 1 channel (NO mode)
Events : Motion detection, network failure,call button pressing
Motion detection : Build-in video motion detector,up to 4 detection zones (sensitivity adjustment)
E-mail notification : At events: Images
FTP, memory card : At events: Images,video
Dimensions : 73x166x51 mm
Weight : 1kg
