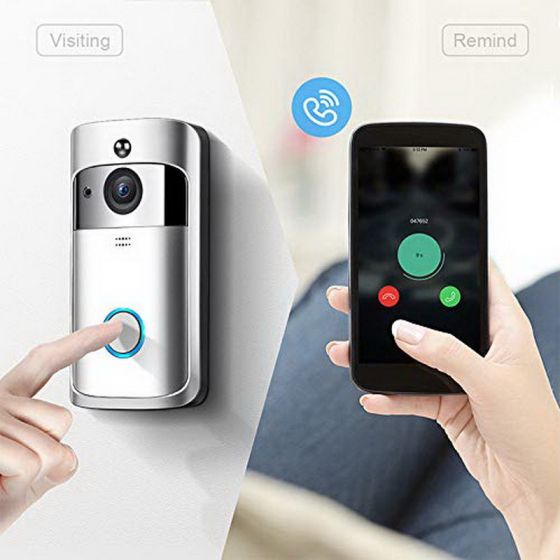

720p Smart Doorbell WiFi Wireless Video Intercom Door Ring Security Camera Bell

Detailed Photos
Product Parameters
Master control (CPU)
Hisilicon Hi3518EV200, built-in ARM926 Max.440MHz Fast Video Coprocessor
Sensor
1/4 inch 720p OV9732 CMOS sensor
Lens
1.7mm F2.4 166 ° wide-angle lens
Sensor performance
Supports automatic dynamic balance, automatic gain control, automatic backlight compensation
S / N
≥39dB
Minimum illumination
0.8Lux / F1.4 (color mode), 0.3Lux / F1.4 (mode)
Night vision
Night vision
Automatic switching of dual filters, 6 850nmΦ28Mil high power infrared lights, night vision 10m
Video format
720P30fps
Video mode
1. Motion detection video doorbell; 2. 2. Press the button to trigger recording; 3. Automatic recording
Battery discharge time
Three quarters 3-4 months
Network protocol
TCP / IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, RTSP, P2P, etc.
WIFI connection
Support (802.11 b / g / n)
record
Free cloud recording
Operating Voltage
AC: 8-12V; DC: 5V 1.5A
Working current
200mA
Charging voltage
DC 5V / 1.5A
Storage temperature (ºC)
(0ºC~50ºC)
Operating temperature (ºC)
Operation temperature: -10 ~ 50 ºC, operation humidity <95%
Wake-up
1. Doorbell button wakes up, 2. PIR detection wakes up, 3. Active wakeup
Application
Visitors can enter video language calls, and enter short-term video recordings. The host must open the door to inform visitors
Features
WiFi connection, ultra-low power consumption, remote active wake-up, can support 6 pointer users to watch online at the same time
Company Profile
Our Advantages
1.Make the reliable IP security surveillance cameras used for a professional surveillance project
2.Strong and experienced R&D engineer team, offer SDK&API for you, meanwhile, we can help and support you to develop, revise and integrate into your own system
3.As a developer of professional software and web applications for managing video surveillance systems, we developing competitive and reliable products that meet the requirement of our customers.
FAQ
Q: Do you sell at retail?
A: Sorry,we are factory and it's need technical person to install it,so we are not sell to personal user directly,thanks.
Q: Are you trading company or manufacturer?
A: We are manufacturer and provide factory price directly.
Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
Model NO. : V5
Sensor Type : 1/3" CMOS
Pixel : 2.0mega
Min Illuminance : Color [email protected] Black and White [email protected]
View Angle : 130
Shutter : 1/25~1/100, 000 Per Second
IR : High Power LED with Icr
WDR : Digtal WDR
Video Compression Standard : H.264, H.265
Max Picture Size : 1280 X 720
Frame Rate : 1~25 Per Second
Audio : Full Duplex Audio
Storage : Support Micro SD Card (Max. 128g)Cloud Storage
Image Setting : Support HD/SD Support Mirror
Reset : Support
Communication Protocol : TCP/IP, HTTP, DHCP, DNS, Rtsp
Transport Package : Retail Box
Specification : 90g
Trademark : Beward
Origin : China
Production Capacity : 50000/Month
Master control (CPU) : Hisilicon Hi3518EV200, built-in ARM926 Max.440MHz Fast Video Coprocessor
Sensor : 1/4 inch 720p OV9732 CMOS sensor
Lens : 1.7mm F2.4 166 ° wide-angle lens
Sensor performance : Supports automatic dynamic balance, automatic gain control, automatic backlight compensation
S / N : ≥39dB
Minimum illumination : 0.8Lux / F1.4 (color mode), 0.3Lux / F1.4 (mode)
Night vision : Night visionAutomatic switching of dual filters, 6 850nmΦ28Mil high power infrared lights, night vision 10m
Video format : 720P30fps
Video mode : 1. Motion detection video doorbell; 2. 2. Press the button to trigger recording; 3. Automatic recording
Battery discharge time : Three quarters 3-4 months
Network protocol : TCP / IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, RTSP, P2P, etc.
WIFI connection : Support (802.11 b / g / n)
record : Free cloud recording
Operating Voltage : AC: 8-12V; DC: 5V 1.5A
Working current : 200mA
Charging voltage : DC 5V / 1.5A
Storage temperature (ºC) : (0ºC~50ºC)
Operating temperature (ºC) : Operation temperature: -10 ~ 50 ºC, operation humidity <95%
Wake-up : 1. Doorbell button wakes up, 2. PIR detection wakes up, 3. Active wakeup
Application : Visitors can enter video language calls, and enter short-term video recordings. The host must open the door to inform visitors
Features : WiFi connection, ultra-low power consumption, remote active wake-up, can support 6 pointer users to watch online at the same time
