Face Reader with Access Control

MQTT/HTTP 8 Inch Temperature Measurement Face Recognition Unit Face Access Control System

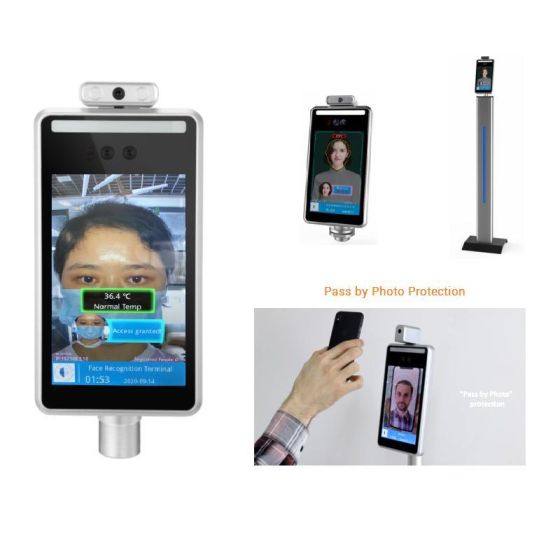

Description of Face Recognition Attendance Device
Face reader attendance machine with an infrared sensor and Beward Bi-Scan facial recognition technology.Which makes the
recognition quickly and accurately with 0.3 seconds.The Bi-Scan facial recognition algorithm allow you to check if is the person
wearing a mask and prevent walking via photo or video.
Functions of AI Face Recognition Time Attendance Machine
1. Attendcance check it
2. Multiple access verification(face recognition and RIFD card)
3. Mask Detection
4. Attendance report
5. Living detection
6. Support 10,000 face user capacity
7.. Work with RFID card reader through wiegand
Features of Time Attendance Access Control Terminal
1. Using LINUX operating system,the system is stable
2. 5-inch IPS full-view high-definition display
3. Provide HTTP API for secondary development
4. Configuration via the web interface for small objects
5. Support for human face tracking exposure in strong backlighting
6.High safety,support living detection,anti false photo authentication
Model
B2002FR-8I-CM-BTH-L06
Hardware
Processor
Dual Core Processor(Hi3516D V300)+ 1G memory + 8G flash
Operating system
Linux Operating system
Storage
Support TF card storage in the future ( only hardware interface reserved)
Viewing angle
Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Sensor
1/2.8" Progressive Scan CMOS(IMX307)
Lens
6mm
Speaker
voice playback content can be customized
Temperature measurement performance
Measurement
Environment
16ºC - 40ºC (Indoor without wind, please refer to the end of the file)
Temperature measurement
Lens
European original lens
Sensors type
European imported sensors
Measurement accuracy
±0.3ºC
Temperature resolution
0.1ºC
Temperature measurement distance
≤40cm
Measurement response time
300ms
Performance
Recognition height
1.2~2.2 meters, angle adjustable
Recognition distance
0.3~1.5 meters, depends on lens
Recognition time
Less than 0.5 seconds
Storage capacity
80,000 capture records
Face capacity
10000pcs
Screen brightness
≥400 cd/m2
Interface
Switching output
1 way switch output, other GPIO port can be customized
Network interface
1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface
1ch Wiegand interface input/output
RS485
There is an RS485 interface on the PCB board, but no lead
USB interface
1ch USB interface
Camera
Camera
Dual cameras
Effective pixels
2MP, 1920*1080
Min Illumination
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR
≥50db(AGC OFF)
WDR
120db, ISP algorithm face partial exposure
Resolution
Main Stream: 50HZ: 25fps (1920*1080,1280*720)
60HZ: 30fps (1950*1080,1280*720)
Sub Stream: 720*576, 1-25(30)fps;  640*480, 1-25(30)fps;
320*240,1-25(30)fps;
Function
Web side configuration
support
remote upgrade
support
Regular
Working humidity
0~90%
relative humidity, no condensation
Salt spray
level Rp6 or above
Antistatic
contact ±6KV, air ±8KV
Powered
DC12V/2A
Device power
20W(MAX)
Column aperture
36mm
Equipment size
252 (L) * 136 (W) * 26 (T) mm
Screen size
8 inches IPS HD screen
Weight
1.7 kg
Shenzhen Wellcam Co., Ltd. being Beward Co.,LTD (www.beward.ru)supported company in China, was founded in 2004, "Wellcam" is our own logo brand. we are professional in digital video solutions for IP surveillance applications, IP Intercom cameras and video server,ip video door phone products. With an industry-leading experienced R&D team and manufacturing head offices in Hong Kong, we have achieved a good reputation as a reliable partner and supplier of CCTV systems from installation companies and bulk suppliers. We welcome OEM or ODM partners and guarantee to provide the best quality...
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010,sell to North America(50.00%),Eastern Europe(20.00%),Northern Europe(10.00%),Western Europe(10.00%),Southern Europe(5.00%).
2. how can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
IP Video Intercom,video door phone,sip intercom,face capture camera,face recognition terminal
4. why should you buy from us, not from other suppliers?
14 years experience only about face recognition IP surveillance SIP intercom camera Design and manufacturer, innovation and stably quality is our aim worked for. 1. provide SDK &API Command to customize; 2.developed own face recognition algorithm
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Chinese
Our Free Software
Packing and Contact Details
Model NO. : B2002FR-8I-WM-BTH-L06
Transport Package : Carton Box
Specification : 2KG
Trademark : Beward
Origin : China
HS Code : 85437099
Production Capacity : 50000/Month
Model : B2002FR-8I-CM-BTH-L06
Hardware :
Processor : Dual Core Processor(Hi3516D V300)+ 1G memory + 8G flash
Operating system : Linux Operating system
Storage : Support TF card storage in the future ( only hardware interface reserved)
Viewing angle : Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Sensor : 1/2.8" Progressive Scan CMOS(IMX307)
Lens : 6mm
Speaker : voice playback content can be customized
Measurement Environment : 16ºC - 40ºC (Indoor without wind, please refer to the end of the file)
 Temperature measurementLens  :  European original lens
 Sensors type  :  European imported sensors
 Measurement accuracy  :  ±0.3ºC
 Temperature resolution  :  0.1ºC
 Temperature measurement distance  :  ≤40cm
 Measurement response time  :  300ms
 Performance  :
 Recognition height  :  1.2~2.2 meters, angle adjustable
 Recognition distance  :  0.3~1.5 meters, depends on lens
 Recognition time  :  Less than 0.5 seconds
 Storage capacity  :  80,000 capture records
 Face capacity  :  10000pcs
 Screen brightness  :  ≥400 cd/m2
 Interface  :
 Switching output  :  1 way switch output, other GPIO port can be customized
 Network interface  :  1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
 Wiegand interface  :  1ch Wiegand interface input/output
 RS485  :  There is an RS485 interface on the PCB board, but no lead
 USB interface  :  1ch USB interface
 Camera  :
 Camera  :  Dual cameras
 Effective pixels  :  2MP, 1920*1080
 Min Illumination  :  Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
 SNR  :  ≥50db(AGC OFF)
 WDR  :  120db, ISP algorithm face partial exposure
 Resolution  :  Main Stream: 50HZ: 25fps (1920*1080,1280*720)            60HZ: 30fps (1950*1080,1280*720)
 Function  :
 Web side configuration  :  support
 remote upgrade  :  support
 Regular  :
 Working humidity  :  0~90% relative humidity, no condensation
 Salt spray  :  level Rp6 or above
 Antistatic  :  contact ±6KV, air ±8KV
 Powered  :  DC12V/2A
 Device power  :  20W(MAX)
 Column aperture  :  36mm
 Equipment size  :  252 (L) * 136 (W) * 26 (T) mm
 Screen size  :  8 inches IPS HD screen
 Weight  :  1.7 kg
