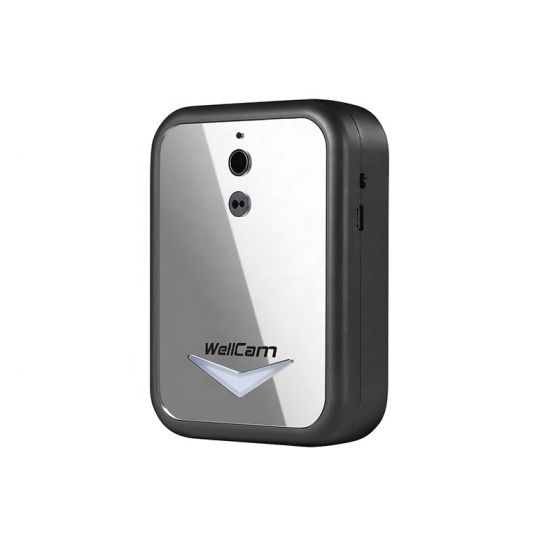

Plug and Play Hospital School Use Fever Detection Temperature Detector

Hospital School Use Fever Detection Temperature Detector
Application: It can be used in hospitals, schools, hotels, supermarkets, enterprises, and other entrances and exits that need to monitor body temperature and control the flow of people.
Product Features:
1.
Laser range and long-range temperature detection sensor accurate to 1cm temperature compensation, and can be accurate long-range temperature measurement up to 50cm.
2.
Forehead temperature detection more accurate, temperature detection accuracy: ± 0.3 ° C (medical grade)
3.Friendly human-computer interaction, you can adjust the position of the face through the positive mirror to confirm the laser fixed forehead test position.
4.Quick test by status light and buzzer sound prompts to indicate whether the temperature is normal
5.Easy to use, no personnel on duty. With high performance, low power consumption, high stability, and other characteristics.
Specifications:
Temperature measurement parameter
Forehead temperature measurement range
35~43ºC(No wind)
Accuracy
±0.3ºC
Distance
1-50cm
Get the temperature ways
IIC
Performance parameter
Thermopile resistance
170±20%KΩ
,
Conditions: temp=25ºC
Noise voltage
42±2nV/Hz1/2
,
Conditions: temp=25ºC
R
esponsibility
60±10V/W
,
Conditions: 500K,5.5μm,
long-wave
Time constant
16±4ms
Detection
(0.60±0.8) E08cmHz1/2/W     Conditions: 500K, 1Hz
NTC
100 ± 1
%
KΩ                Conditions: 25ºC
NTC BETA
3950 ± 1
%
K                Conditions: 25ºC/50ºC
Power supply
Dry cell
/Battery
5AA*4
USBinterface
Powered via USB (without battery)
General parameter
S
torage temperature
-20±60ºC
Environment temperature
0-40ºC
Power consumption
≤ 0.2W, W
orking current
≤ 40mA
Size
110mm(Length)*90mm(Width)*30mm(Height)
Model NO. : BO-01
Power : Battery or DC 12V
High Temperature Alarm : Yes
Temperature Detection Accuracy : ± 0.3 °
Transport Package : Paper Box
Specification : 0.5kg
Trademark : OEM
Origin : China
HS Code : 8517699000
Production Capacity : 50000/Month
Forehead temperature measurement range : 35~43ºC(No wind)
Accuracy : ±0.3ºC
Distance : 1-50cm
Get the temperature ways : IIC
Thermopile resistance : 170±20%KΩ,             Conditions: temp=25ºC
Noise voltage : 42±2nV/Hz1/2,           Conditions: temp=25ºC
Responsibility : 60±10V/W,         Conditions: 500K,5.5μm,long-wave
Time constant : 16±4ms
Detection : (0.60±0.8) E08cmHz1/2/W     Conditions: 500K, 1Hz
NTC : 100 ± 1%KΩ                Conditions: 25ºC
NTC BETA : 3950 ± 1%K                Conditions: 25ºC/50ºC
Dry cell/Battery : 5AA*4
USBinterface : Powered via USB (without battery)
Storage temperature : -20±60ºC
Environment temperature : 0-40ºC
Power consumption : ≤ 0.2W, Working current≤ 40mA
Size : 110mm(Length)*90mm(Width)*30mm(Height)
