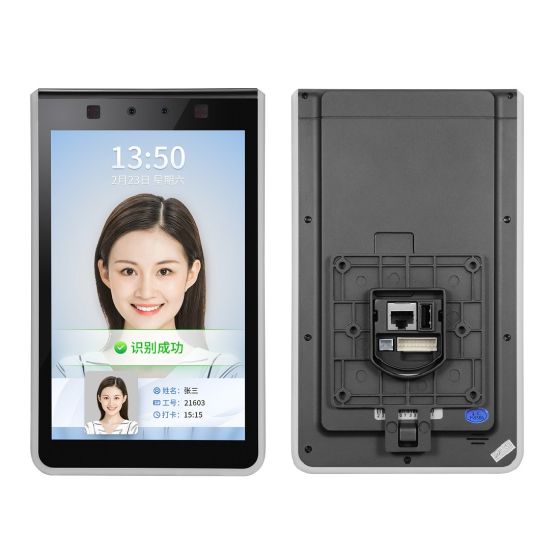

WiFi NFC Card Reader Facial Recognition Terminal with Wall Bracket

Product Description
Wifi NFC Card Reader Facial Recognition Terminal With Wall Bracket
Description of Face Recognition Attendance Access Control Machine
Facial recognition terminal with 8 inch touch screen display.It's built-in face recognition algorithm to accurately recognize faces,face recognition time is less than 0.5s.It's has 24,000 face template capacity.Face recognition reader can be used in smart communities,access control channels,face attendance,hotels,office buildings,schools,shopping malls and other places,which helps to achieve intelligent security control.
Functions of AI Face Recognition Attendance Machine
1. Touch screen
2. Face recognition and mask detection
3. Support Living detection
4. Intelligent Time Attendence
5. White LED backlight for night work
7. Export Attendance report from face recognition software
6. Unique face recognition algorithm,accurately recognizes faces
Features of Time Attendance Terminal
1. Support Real Time Human Body Detection
2. 8-inch IPS touch screen,resolution 800*1280
3. Support for human face tracking exposure in strong backlighting
4. Support device side registration of faces and configuration of device functions
5. Support 24,000 face users and 160,000+ face recognition records.
6. The device supports connect to an external access control host or Wiegand reader through the international standard Wiegand
7.
Rich interface protocol,support SDK and HTTP protocol under various platforms such as Linux/Windows TCP/IP, UDP, RTP, RTSP, RTCP, HTTP,DNS,DDNS,DHCP,MQTT
Technical Specification:
Model
B2002FR-8I-UTS-RF-WM(WIFI)
Hardware
Processor
Dual Core Processor+ 1G memory + 16G flash
Operating system
Linux Operating system
Sensor
1/2.8" Progressive Scan CMOS
Lens
4.5mm
WiFi module
2.4GHz frequency band, IEEE802 b/g/n protocol; 5GHz frequency band, IEEE802 a/n/ac protocol
4G module (optional)
Support LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS and other network standards, the maximum downlink rate is 160Mbps, and the maximum uplink rate is 60Mbps
Bluetooth module
GFSK, DQPSK, 8DPSK, LE (1Mbps), 2LE (2Mbps) technical specifications
Speaker
voice playback content can be customized
Performance
Recognition height
1.2~2.3 meters, angle adjustable
Recognition distance
0.5~1.5 meters, depends on lens
Recognition angle
Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Recognition time
Less than 0.3 seconds
Storage capacity
160,000 capture records
Face capacity
24,000pcs
Screen brightness
≥400 cd/m2
Card type
Support reading 13.56MHz, 125KHz, 915MHz frequency band signals, the type of card reading includes Mifare, CPU card
Interface
Power out
DC12V/2A
Network interface
1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface
1ch Wiegand interface input/output
Alarm interface
1ch alarm interface input
Door senor interface
1ch magnetic interface input
Open interface
1ch open door interface input
Doorbell interface
1ch doorbell interface output
Lock interface
1ch lock interface output
Communication interface
1ch RS485 interface
Camera
Camera
Dual cameras
Effective pixels
2MP, 1920*1080
Min Illumination
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR
≥50db(AGC OFF)
WDR
120db, ISP algorithm face partial exposure
Resolution
Main Stream
50Hz: 25fps (1920×1080,1280×720)
60Hz: 30fps (1920×1080,1280×720)
Sub Stream
704*576,
1-
25 frames/second
,
640*480,
1-
25 frames/second
,
352*288,
1-
25 frames/second
Function
Web side configuration
support
Remote upgrade
support
Regular
Operating temperature
-10ºC - +55ºC
Working humidity
0~90%
relative humidity, no condensation
Salt spray
level Rp6 or above
Antistatic
contact ±6KV, air ±8KV
Power
DC12V/2A
Waterproof
IP42
Power
20W(MAX)
Equipment size
215.22 (L) * 130 (W) * 15 (T) mm
Screen size
8 inches IPS HD screen
Company Profile
Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.
FAQ
Q: Do you sell at retail?
A: Sorry,we are factory and it's need technical person to install it,so we are not sell to personal user directly,thanks.
Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
Model NO. : B2002FR-8I-UTS-RF-WM(Wifi)
Function : Face and Mask Detection, Door Entry
Size : 8 Inch Touch Screen
Face Capacity : 24000+ Face
Record Capacitry : 160000 Face
Bluetooth : Supports
Transport Package : Standard Package
Specification : 900g
Trademark : OEM
Origin : China
HS Code : 851769900
Production Capacity : 20000
Model : B2002FR-8I-UTS-RF-WM(WIFI)
Hardware :
Processor : Dual Core Processor+ 1G memory + 16G flash
Operating system : Linux Operating system
Sensor : 1/2.8" Progressive Scan CMOS
Lens : 4.5mm
WiFi module : 2.4GHz frequency band, IEEE802 b/g/n protocol; 5GHz frequency band, IEEE802 a/n/ac protocol
4G module (optional) : Support LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS and other network standards, the maximum downlink rate is 160Mbps, and the maximum uplink rate is 60Mbps
Bluetooth module : GFSK, DQPSK, 8DPSK, LE (1Mbps), 2LE (2Mbps) technical specifications
Speaker : voice playback content can be customized
Performance :
Recognition height : 1.2~2.3 meters, angle adjustable
Recognition distance : 0.5~1.5 meters, depends on lens
Recognition angle : Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Recognition time : Less than 0.3 seconds
Storage capacity : 160,000 capture records
Face capacity : 24,000pcs
Screen brightness : ≥400 cd/m2
Card type : Support reading 13.56MHz, 125KHz, 915MHz frequency band signals, the type of card reading includes Mifare, CPU card
Interface :
Power out : DC12V/2A
Network interface : 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface : 1ch Wiegand interface input/output
Alarm interface : 1ch alarm interface input
Door senor interface : 1ch magnetic interface input
Open interface : 1ch open door interface input
Doorbell interface : 1ch doorbell interface output
Lock interface : 1ch lock interface output
Communication interface : 1ch RS485 interface
Camera :
Camera : Dual cameras
Effective pixels : 2MP, 1920*1080
Min Illumination : Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR : ≥50db(AGC OFF)
WDR : 120db, ISP algorithm face partial exposure
Resolution : Main Stream
Sub Stream : 704*576, 1-25 frames/second, 640*480, 1-25 frames/second, 352*288, 1-25 frames/second
Function :
Web side configuration : support
Remote upgrade : support
Regular :
Operating temperature : -10ºC - +55ºC
Working humidity : 0~90% relative humidity, no condensation
Salt spray : level Rp6 or above
Antistatic : contact ±6KV, air ±8KV
Power : DC12V/2A
Waterproof : IP42
Power : 20W(MAX)
Equipment size : 215.22 (L) * 130 (W) * 15 (T) mm
Screen size : 8 inches IPS HD screen
