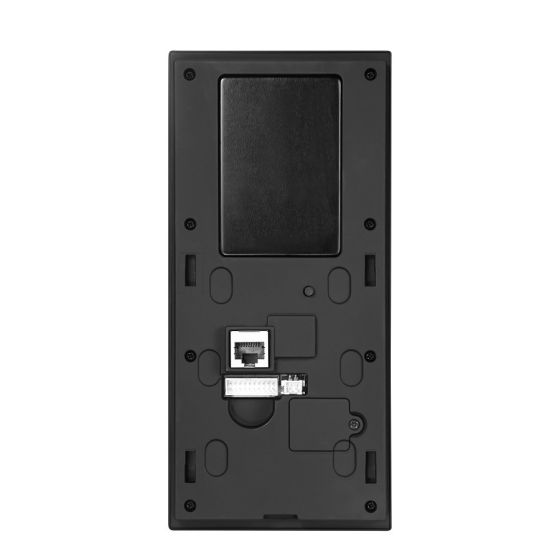

Face Reader with Doorbell

SKU
WCAM101119340541
Special Price US$120.03 Regular Price US$133.37
In stock
Overview
Face Reader with Doorbell
Face Reader with Doorbell
Face reader attendance machine with an infrared sensor and Beward Bi-Scan facial recognition technology.Which makes the
recognition quickly and accurately with 0.3 seconds.The Bi-Scan facial recognition algorithm allow you to check if is the person
wearing a mask and prevent walking via photo or video.
Functions of AI Face Recognition Time Attendance Machine
1. Attendance check it
2. Multiple access verifications (face recognition and RIFD card)
3. Mask Detection
4. Attendance report
5. Living detection
6. Support 10,000 face user capacity
7.. Work with RFID card reader through Wiegand
Features of Time Attendance Access Control Terminal
1. Using the LINUX operating system, the system is stable
2. 5-inch IPS full-view high-definition display
3. Provide HTTP API for secondary development
4. Configuration via the web interface for small objects
5. Support for human face tracking exposure in strong backlighting
6.High safety, support living detection, anti false photo authentication
Model
B2002FR-5I-WM-DB-L06
Hardware
Processor
Dual Core Processor + 1G memory + 8G EMMC
Operating system
Linux Operating system
Storage
Support TF card storage
Viewing angle
Vertical viewing angle: 30°
,
Horizontal viewing angle: 30°
Sensor
1/2.8" Progressive Scan CMOS
Lens
MTV
4.9mm
Speaker
V
oice playback content can be customized
Performance
Recognition height
1.2~2.2 meters, angle adjustable
Recognition distance
0.5~1.5 meters, depends on lens
Recognition time
Less than 0.
5
second
s
Storage capacity
8
0,000 capture records
Face capacity
10,
000pcs
Support card type
(Optional)
13. 56MHz, support Mifare S50, S70 card, ultraltinght card, NTAG card, DESFire D21, D41, D81, contactless CPU card
Wifi
module
(Optional)
IEEE 802.11b/g/n standard, 2.4Ghz frequency band
Interface
Power out
DC12V/2A
Network interface
1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface
1ch Wiegand interface input/output
Alarm
interface
1ch alarm
interface
Door senor
interface
1ch m
agnetic interface
O
pen interface
1ch o
pen d
oor
interface
D
oor
bell
interface
1ch
door
bell
interface
Lock
interface
1ch lock
interface
Communication interface
1ch RS485
interface
Camera
Camera
Dual
cameras
Effective pixels
2MP
,
1920*1080
Min Illumination
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR
≥50db(AGC OFF)
WDR
1
2
0db,
ISP
algorithm face partial exposure
Main Stream
50Hz: 25fps (1920×1080,1280×720)
60Hz: 30fps (1920×1080,1280×720)
Sub Stream
704*576, 25 frames/second
,
640*480, 25 frames/second
,
352*288, 25 frames/second
Function
Web side configuration
S
upport
R
emote upgrade
S
upport
Regular
Operating temperature
-30ºC - +60ºC
Working humidity
0~90%
relative humidity, no condensation
Salt spray
L
evel Rp6 or above
Antistatic
C
ontact ±
6
KV, air ±8KV
Power
DC12V/
2
A
Waterproof
IP
42
Power
15
W(MAX)
Equipment size
2
05
(
L
) *
95
(
W
) * 2
4.5
(
T
) mm
Screen size
5
inch
es
IPS HD screen
Shenzhen Wellcam Co., Ltd. being Beward Co.,LTD (www.beward.ru)supported company in China, was founded in 2004, "Wellcam" is our own logo brand. we are professional in digital video solutions for IP surveillance applications, IP Intercom cameras and video server,ip video door phone products. With an industry-leading experienced R&D team and manufacturing head offices in Hong Kong, we have achieved a good reputation as a reliable partner and supplier of CCTV systems from installation companies and bulk suppliers. We welcome OEM or ODM partners and guarantee to provide the best quality...
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010,sell to North America(50.00%),Eastern Europe(20.00%),Northern Europe(10.00%),Western Europe(10.00%),Southern Europe(5.00%).
2. how can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
IP Video Intercom,video door phone,sip intercom,face capture camera,face recognition terminal
4. why should you buy from us, not from other suppliers?
14 years experience only about face recognition IP surveillance SIP intercom camera Design and manufacturer, innovation and stably quality is our aim worked for. 1. provide SDK &API Command to customize; 2.developed own face recognition algorithm
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Chinese
Our Free Software
Packing and Contact Details
Model NO. : B2002FR-5I-WM-DB-L06
Specification : 205(L) * 95 (W) * 24.5(T) mm
Trademark : Beward
Origin : China
HS Code : 8525801390
Production Capacity : 50000/Month
Model : B2002FR-5I-WM-DB-L06
Hardware :
Processor : Dual Core Processor + 1G memory + 8G EMMC
Operating system : Linux Operating system
Storage : Support TF card storage
Viewing angle : Vertical viewing angle: 30°, Horizontal viewing angle: 30°
Sensor : 1/2.8" Progressive Scan CMOS
Lens : MTV4.9mm
Speaker : Voice playback content can be customized
Performance :
Recognition height : 1.2~2.2 meters, angle adjustable
Recognition distance : 0.5~1.5 meters, depends on lens
Recognition time : Less than 0.5 seconds
Storage capacity : 80,000 capture records
Face capacity : 10,000pcs
Support card type(Optional) : 13. 56MHz, support Mifare S50, S70 card, ultraltinght card, NTAG card, DESFire D21, D41, D81, contactless CPU card
Wifi module(Optional) : IEEE 802.11b/g/n standard, 2.4Ghz frequency band
Interface :
Power out : DC12V/2A
Network interface : 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface : 1ch Wiegand interface input/output
Alarm interface : 1ch alarm interface
Door senor interface : 1ch magnetic interface
Open interface : 1ch open door interface
Doorbell interface : 1ch doorbell interface
Lock interface : 1ch lock interface
Communication interface : 1ch RS485 interface
Camera :
Camera : Dual cameras
Effective pixels : 2MP, 1920*1080
Min Illumination : Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR : ≥50db(AGC OFF)
WDR : 120db, ISP algorithm face partial exposure
Image : Main Stream
Sub Stream : 704*576, 25 frames/second, 640*480, 25 frames/second, 352*288, 25 frames/second
Function :
Web side configuration : Support
Remote upgrade : Support
Regular :
Operating temperature : -30ºC - +60ºC
Working humidity : 0~90% relative humidity, no condensation
Salt spray : Level Rp6 or above
Antistatic : Contact ±6KV, air ±8KV
Power : DC12V/2A
Waterproof : IP42
Power : 15W(MAX)
Equipment size : 205(L) * 95 (W) * 24.5(T) mm
Screen size : 5 inches IPS HD screen
