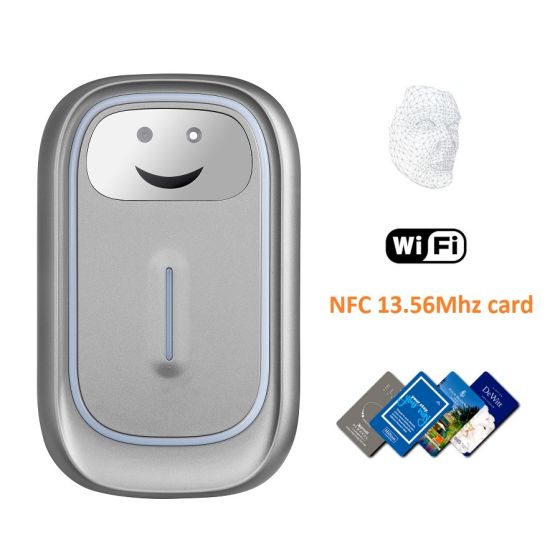

13.56MHz Time Attendance Face Access with RFID Reader for Office

Model : B2002FR-RF-WF-WM-E

Hardware :

• Processor : Dual-Core ARM Cortex-A7, @1.0GHz
• Operating system : Linux Operating system
• Sensor : 1/2.8" Progressive Scan CMOS
• Lens : 4.5mm
• Card swiping module(Optional) : Support reading 13.56MHz, 125KHz, 915MHz frequency band signals, the type of card reading includes Mifare, CPU card
• WiFi module : IEEE 802.11b/g/n standard, support 2.4GHz
• frequency band, speed range 1Mbps-150Mbps
• Speaker : Voice playback content can be customized


Performance :

• Recognition height : 1.2~2.3 meters, angle adjustable
• Recognition distance : 0.3~1meter
• Viewing angle : Vertical viewing angle: 30°, horizontal viewing angle: 30°
• Recognition time : Less than 0.5 seconds
• Storage capacity : 60,000 capture records
• Face capacity : 24,000pcs


Interface :

• Power out : DC12V/2A
• Network interface : 1 RJ45 10M / 100M adaptive Ethernet port,
• Gigabit Ethernet port can be customized
• Wiegand interface : 1ch Wiegand interface input/output
• Alarm interface : 1ch alarm interface
• Door sensor interface : 1ch magnetic interface
• Open interface : 1ch open door interface
• Doorbell interface : 1ch doorbell interface
• Lock interface : 1ch lock interface
• Communication interface : 1ch RS485 interface

Camera :

1. Camera : Dual cameras
2. Effective pixels : 2MP, 1920*1080
3. Min Illumination : Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
4. SNR : ≥50db(AGC OFF)


Regular :

• Operating temperature : -20ºC - +55ºC
• Working humidity : 0~90% relative humidity, no condensation
• Salt spray : Level Rp6 or above
• Antistatic : Contact ±6KV, air ±8KV
• Power : DC12V/2A
• Waterproof : IP42
• Power : 10W(MAX)
• Equipment size : 159(L) * 98 (W) * 25(T) mm
• Indicator light : Red, Yellow, and Green
