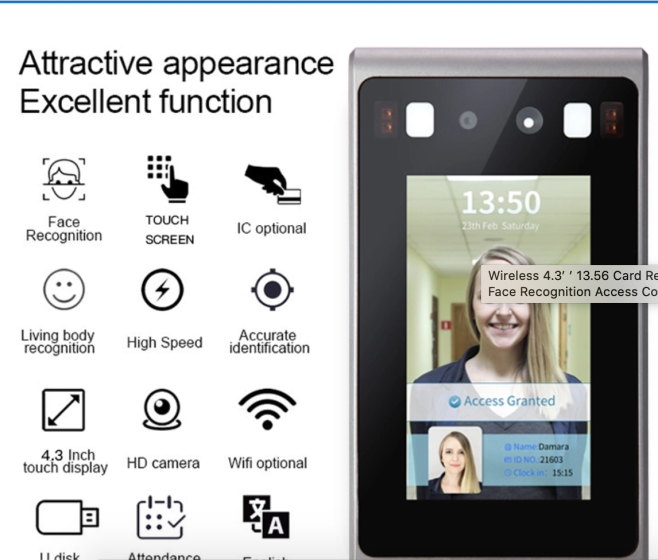

Wireless 4.3"13.56 Card Reader Touch Screen Face Recognition Access Control Terminal

Hardware :

• Processor : Dual-Core ARM Cortex-A7, @1.0GHz
• Operating system : Linux Operating system
• Sensor : 1/2.8" Progressive Scan CMOS
• Lens : 4.5mm
• Card swiping module(Optional) : Support reading 13.56MHz, 125KHz, 915MHz frequency band signals, the type of card reading includes Mifare, CPU card
• WiFi module : IEEE 802.11b/g/n standard, support 2.4GHz frequency band, speed range 1Mbps-150Mbps
• Touch screen : Support, capacitance multi-touch screen
• Speaker : Voice playback content can be customized

Performance :

• Recognition height : 1.2~2.2 meters, angle adjustable
• Recognition distance : 0.3~1.5 meters
• Viewing angle : Vertical viewing angle: 30°, horizontal viewing angle: 30°
• Recognition time : Less than 0.5 seconds
• Storage capacity : 60,000 capture records
• Face capacity : 24,000pcs


Interface :

• Power out : DC12V/2A
• Network interface : 1 RJ45 10M / 100M adaptive Ethernet port,
• Gigabit Ethernet port can be customized
• Wiegand interface : 1ch Wiegand interface input/output
• Alarm interface : 1ch alarm interface
• Door senor interface : 1ch magnetic interface
• Open interface : 1ch open door interface
• Doorbell interface : 1ch doorbell interface
• Lock interface : 1ch lock interface
• Communication interface : 1ch RS485 interface

Camera :

• Camera : Dual cameras
• Effective pixels : 2MP, 1920*1080
• Min Illumination : Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)SNR : ≥50db(AGC OFF)
• Screen resolution : 480*272


Regular :

• Operating temperature : -20ºC - +55ºC
• Working humidity : 0~90% relative humidity, no condensation
• Salt spray : Level Rp6 or above
• Antistatic : Contact ±6KV, air ±8KV
• Power : DC12V/2A
• Waterproof : IP42
• Power : 10W(MAX)
• Equipment size : 160(L) * 88 (W) * 17(T) mm
• Screen size : 4.3-inch capacitance multi-touch screen
