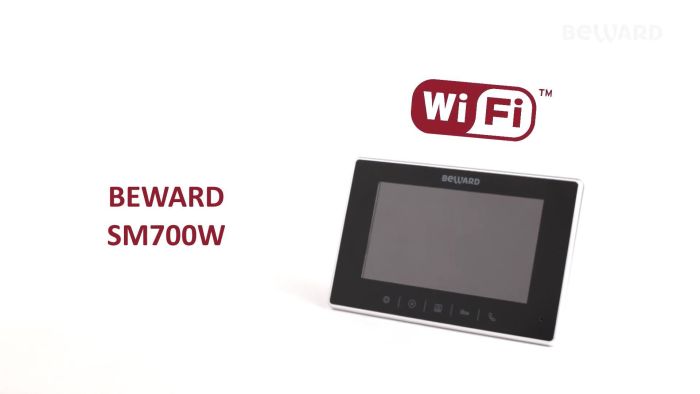

SIP 2.0 IP Monitor for Video Door Phone

Model NO. : SM700

• SIP : 2.0
• Screen Size : 7"
• Screen Resolution : 800*480
• Wi-Fi : IEEE 802.11bgn (Sm700W Only)
• Speaker : Built-in Speaker
• Microphone : Built-in Microphone
• Transport Package : Carton Box
• Specification : 218x141x20 mm
• Trademark : Beward
• Origin : China
• HS Code : 8525801390
• Production Capacity : 50000PCS/Year
• Screen diagonal : 7"
• Screen resolution : 800x480
• Design : "Hands free"
• Function Keys : 5 function touch keys
• Functions : Viewing video from an IP camera, saving photos when making calls,
    : call log (500 entries), silent mode
• Codec support : H.264 BP/MP/HP
• Supported Resolutionsvideo call : 1920x1080 and below
• Microphone : Built-in microphone
• Speaker : Built-in speaker
• Conversation mode : Full duplex
• Codec support : G.711
• Noise suppression : Active noise cancellation
• Ringtones : Customizable ringtones
• Network interface : 1x 10BASE-T / 100BASE-TX
• USB : USB 2.0 interface for saving photos when making calls,
    : up to 5000 entries
• Network protocols : SIP 2.0 (RFC3261), TCP / IP, IPv4 / v6, UDP, RTP, RTSP, RTCP, HTTP,
    : https,ssl,dns,ddns,dhcp,arp,pppoe,ntp,upnp,bonjour,pptp,
    : STUN
• DTMF modes : DTMF-Relay(RFC2833),SIP Info,In-Audio
• Wi-Fi : IEEE 802.11bgn (SM700W only)
• Safety : Password protected user access
• Integration : CGI API
• Food : 12V (DC)
• Power consumption : Up to 12 W
• Working temperature range : From -10 ° to + 50 ° С
• Acceptable humidity level : 10% to 90% (non-condensing)
• Protection class : IP30
• Body material : Plastic, Acrylic
• Dimensions (LxWxH) : 218x141x20 mm
• Weight : 0.8KG
• Colour : Black
• Control : Web interface, CGI API, local interface
• Mount type : Wall mount
