Wireless 7" SIP IP Indoor Monitor for Access Control and Two Way Talk
SKU
WCAM101119340553
Overview
Wireless 7" SIP IP Indoor Monitor for Access Control and Two Way Talk
- Wireless 7" SIP IP Indoor Monitor for Access Control and Two Way Talk

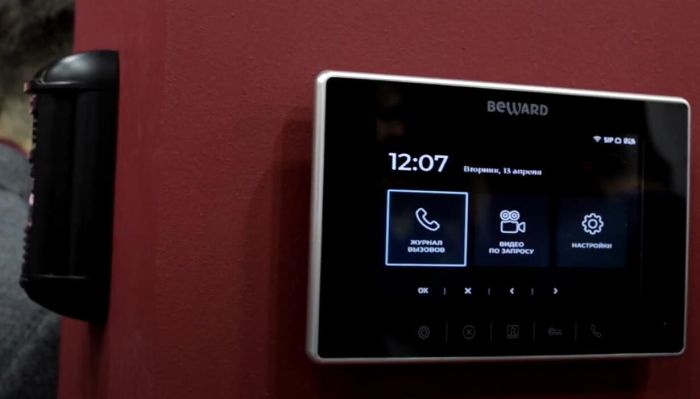

BEWARD SM700 (W) is a high performance SIP monitor designed for office and residential use. The SM700 (W) is equipped with a 7-inch screen. The main functions of the monitor are controlled by touch-sensitive function keys.
BEWARD SM700 (W) is easy to handle and easy to use. It allows you to receive SIP calls, conducts full-duplex conversations in real-time,and also watch video from an IP-video camera connected to it by pressing hotkeys. For a comfortable stay, the SIP monitor supports the silent mode functionality.
External USB memory support allows you to reliably save 7 "SIP monitor event log records. If there is no external USB memory, the event log records are saved in the internal memory of the 7 "SIP monitor. Users can view photos of the caller if the call was missed.
SIP monitor SM700 (W) supports SIP 2.0 protocol with RFC3261 compliance, as well as various door opening modes, including DTMF-Relay RFC2833. This ensures compatibility with BEWARD outdoor panels, and also makes it possible to receive calls directly via SIP P2P, through an IP-PBX, or through the BEWARD KtoTam cloud SIP server, which makes the use of the SIP monitor SM700 (W) universal for both private,and for the corporate sector.
There are two options for connecting a BEWARD 7 "SIP monitor to an Ethernet network:
For model SM700 - using a 10BASE-T / 100BASE-TX wired interface
For SM700W - using 10BASE-T / 100BASE-TX wired interface and built-in WiFi IEEE 802.11bgn (2.4 GHz)
For ease of installation, an optional 12V power supply and a power adapter for quick connection of the monitor are included in the delivery set of the SIP monitor SM700 (W).
Model NO. : SM700 - Certification : CE, RoHS
- Interface Type : HDMI
- Horizontal Resolution : 480tvl
- Screen : General Screen
- Scanning : Interlacing
- Material : Plastic
- Sensor : CMOS
- SIP : 2.0
- Screen Size : 7"
- Screen Resolution : 800*480
- Wi-Fi : IEEE 802.11bgn (Sm700W Only)
- Speaker : Built-in Speaker
- Microphone : Built-in Microphone
- Transport Package : Carton Box
- Trademark : Beward
- Origin : China
- HS Code : 8525801390
- Production Capacity : 50000PCS/Year
- Design : "Hands free"
- Function Keys : 5 function touch keys
- Functions : Viewing video from an IP camera, saving photos when making calls, call log (500 entries), silent mode
- Codec support : H.264 BP/MP/HP
- Supported Resolutionsvideo call : 1920x1080 and below
- Microphone : Built-in microphone
- Speaker : Built-in speaker
- Conversation mode : Full duplex
- Codec support : G.711
- Noise suppression : Active noise cancellation
- Ringtones : Customizable ringtones
- Network interface : 1x 10BASE-T / 100BASE-TX
- USB : USB 2.0 interface for saving photos when making calls,
: up to 5000 entries - Network protocols : SIP 2.0 (RFC3261), TCP / IP, IPv4 / v6, UDP, RTP, RTSP, RTCP, HTTP,
: https,ssl,dns,ddns,dhcp,arp,pppoe,ntp,upnp,bonjour,pptp,
: STUN - DTMF modes : DTMF-Relay(RFC2833),SIP Info,In-Audio
- Wi-Fi : IEEE 802.11bgn (SM700W only)
- Safety : Password protected user access
- Integration : CGI API
- Food : 12V (DC)
- Power consumption : Up to 12 W
- Working temperature range : From -10 ° to + 50 ° С
- Acceptable humidity level : 10% to 90% (non-condensing)
- Protection class : IP30
- Body material : Plastic, Acrylic
- Dimensions (LxWxH) : 218x141x20 mm
- Weight : 0.8KG
- Colour : Black
- Control : Web interface, CGI API, local interface
- Mount type : Wall mount
