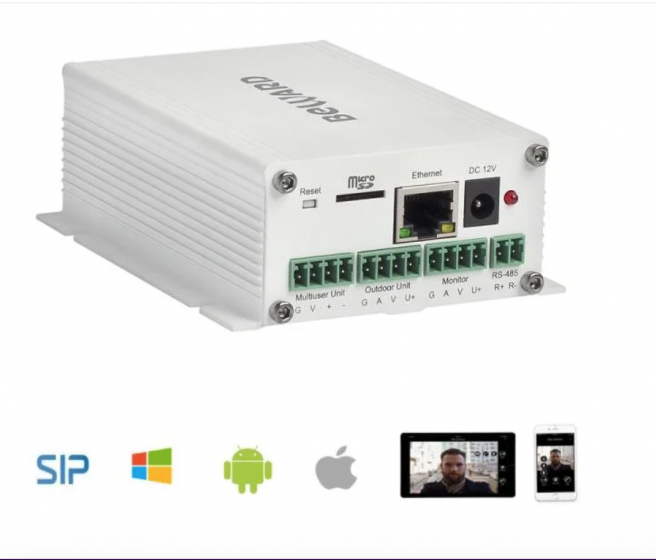

Video SIP Analog to IP SIP Converter Onvif Motion Detection 4 Wires Analog Video Doorphone Converter

Video Sip Analog To IP SIP Converter ONVIF Motion Detection 4 Wires Analog Video Doorphone Converter
DK103 analog to IP converter, which is converting 4-wires analog video door phone/doorbell. Then you could talk and see the visitors from your mobile phone app or remote access control any time, anywhere when visitors call from an analog outdoor panel. Don't worry about missing the call again, it's very convenient and secure.
Features of Analog Video Door Phone Converter
1. Real time video
2. Resolution 960x576, 720x576, 704x576
3. Encoding type H.264 BP / MP,Motion JPEG
4. SIP standard 2.0 supported
5. Multiple clients simultaneous access
6. Onvif standard 2.4.1 version supported
SIP protocol: integration of an video intercom into an IP network
The DK103M sip intercom analog to ip converter support SIP open source protocol,analog intercom can be turned into a SIP video intercom,which connects to other SIP devices(SIP intercoms,SIP IP phones,SIP monitors,SIP IP handsets,SIP PBX,SIP clients and so on)
Analog video intercom via SIP IP PBX can work with other SIP device directly,DK103M can receive a call and open the door(DTMF) when forwarding to a regular mobile or landline phone.At the same time,the SIP STUN technology allow you to connect the call panel via the Internet without using a static address.

FAQ:
Q: Do you sell at retail?
A: Sorry,we are factory and it's need technical person to install it,so we are not sell to personal user directly,thanks.
Q: Are you trading company or manufacturer?
A: We are manufacturer and provide factory price directly.
Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.

• Model NO. : DK103M
• Function : Analog to IP
• SIP : 2.0
• Poe : Optional
• Power : DC12V
• Converter : Analog Video Doorphone to IP
• Compatible : 4 Wires Video Doorphone
• Transport Package : Carton Box
• Specification : 05kgs
• Trademark : Beward
• Origin : China
• HS Code : 8525801390
• Production Capacity : 5000PCS/Year
• Compression format : H.264 BP / MP, Motion JPEG
• Video stream : Dual encoding: H.264 / MJPEG, H.264 / H.264, MJPEG / MJPEG
• Resolution : Main stream: 960x576 (960H), 720x576 (D1), 704x576 (4CIF)
    : Alternative stream: 704x576 (4CIF), 704x288 (2CIF),
    : 352x288 (CIF), 176x144 (QCIF)
• Frame rate : Up to 25 fps for all resolutions
• Transmission speed : 32 kbps to 16 Mbps
• Image options : Brightness, contrast, saturation, hue
• Titles : Title, date / time, stream size, frame rate
• Compression : G.711, G.726
• Additionally : Duplex
• Network interface : 10Base-T / 100Base-TX Ethernet port
• Network protocols : TCP / IP, IPv4 / v6, SIP v.2.0, VPN, STUN, HTTP,
    : HTTPS, FTP, SMTP, DNS, DDNS, UPnP,
    : DHCP, PPPoE, RTP, RTSP, UDP, NTP, ONVIF v.2.41
• Compound : DHCP, static address
• Safety : Multi-level password protected access
• Users : Up to 3 accounts
• Data port : RS-485
• Additionally : MicroSDHC card support (up to 32GB)
• Number of SIP accounts : 2
• SIP Call Subscribers : Up to 5
• DTMF modes : RFC2833, SIP INFO, in-band
• Events : Motion detection, network error
• Motion detection : Built-in detector, up to 4 detection zones (sensitivity adjustment)
• Sending by mail : Personnel
• FTP recording, memory card : Frames, video
• Food : 12 V 1 A (DC)
• Power consumption : Up to 12 W
• Working temperature range : 0 to + 50 ° С
• Body material : Aluminium alloy
• Dimensions (wxhxd) : 88x118x40 mm
• Weight : 320 g (net)
• System requirements : Microsoft Internet Explorer 9.0 or higher on Windows 8/7 / Vista, IOS 6.0-9, Android 4.0 and above
