7 Inch Touch Screen WiFi IP Video Intercom SIP Monitor

Product Description
7 Inch Touch Screen WIFI IP Video Intercom SIP Monitor
The BEWARD SM700
W
is a high performance SIP monitor designed for office and residential use.
The SM700W is
equipped with a 7 inch screen. The main functions of the monitor are controlled by touch-sensitive function keys.
BEWARD SM700W
is easy to handle and convenient to use. It allows you to receive SIP calls, conduct full-duplex conversations in real time, as well as view video from IP cameras connected to it by pressing hot keys. For a comfortable stay, the SIP monitor supports the silent mode functionality. For ease of installation, an optional 12V power supply and a power adapter for quick connection of the monitor are included in the delivery set of the
SM700W
SIP monitor.
Technical Specification:
General characteristics
Screen diagonal
7 "
Screen resolution
800x480
Design
"Hands free"
Function Keys
5 function touch keys
Functions
Viewing video from an IP camera, saving
photos during calls, call log
(500 entries), silent mode
Video
Codec support
H.264 BP / MP / HP
Video call permissions
1920x1080 and below
Audio
Microphone
Built-in microphone
Speaker
Built-in speaker
Conversation mode
Full duplex
Codec support
G.711
Noise suppression
Active noise cancellation
Ringtones
Customizable ringtones
Network
Network interface
1x 10BASE-T / 100BASE-TX, 1x Wi-Fi IEEE 802.11bgn
USB
USB 2.0 interface for saving photos when
calls, up to 5000 entries
Network protocols

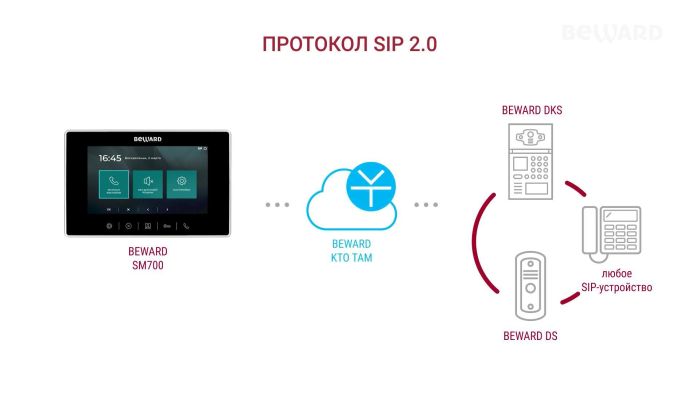

SIP 2.0 (RFC3261), TCP / IP, IPv4 / v6, UDP, RTP, RTSP,
RTCP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, ARP,
PPPoE, NTP, UPnP, Bonjour, PPTP, STUN, WPS
DTMF modes
DTMF-Relay (RFC2833), SIP INFO, in-audio
Security
Password protected user access
Integration
CGI API
Exploitation
Nutrition
12V (DC)
Power consumption
12 watts
Working temperature range
-10 to + 50 ° C
Acceptable humidity level
10% to 90% (non-condensing)
Protection class
IP30
Body material
Plastic, Acrylic
Dimensions (LxWxH)
218x141x20 mm
The weight
0.8KG
Colour
Black
Control
Web interface, CGI API, local interface
Mount type
Wall mount
Company Profile
Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.
FAQ
Q: Do you sell at retail?
A: Sorry,we are factory and it's need technical person to install it,so we are not sell to personal user directly,thanks.
Q: Are you trading company or manufacturer?
A: We are manufacturer and provide factory price directly.
Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
Screen : 7 Inch
Screen Resolution : 800X480
Function Keys : 5 Function Touch Keys
Codec : H.264 Bp/MP/HP
Microphone : Built-in Microphone
Speaker : Built-in Speaker
Conversation Mode : Full Duplex
Codec Support : G.711
Dtmf Modes : Dtmf-Relay (Rfc2833), SIP Info, in-Audio
Transport Package : Standard Package
Specification : 900g
Trademark : Beward
Origin : China
Production Capacity : 20000
Screen diagonal : 7 "
Screen resolution : 800x480
Design : "Hands free"
Function Keys : 5 function touch keys
Functions : Viewing video from an IP camera, saving
  : photos during calls, call log
  : (500 entries), silent mode
Codec support : H.264 BP / MP / HP
Video call permissions : 1920x1080 and below
Microphone : Built-in microphone
Speaker : Built-in speaker
Conversation mode : Full duplex
Codec support : G.711
Noise suppression : Active noise cancellation
Ringtones : Customizable ringtones
Network interface : 1x 10BASE-T / 100BASE-TX, 1x Wi-Fi IEEE 802.11bgn
USB : USB 2.0 interface for saving photos when
  : calls, up to 5000 entries
Network protocols : SIP 2.0 (RFC3261), TCP / IP, IPv4 / v6, UDP, RTP, RTSP,
  : RTCP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, ARP,
  : PPPoE, NTP, UPnP, Bonjour, PPTP, STUN, WPS
DTMF modes : DTMF-Relay (RFC2833), SIP INFO, in-audio
Security : Password protected user access
Integration : CGI API
Nutrition : 12V (DC)
Power consumption : 12 watts
Working temperature range : -10 to + 50 ° C
Acceptable humidity level : 10% to 90% (non-condensing)
Protection class : IP30
Body material : Plastic, Acrylic
Dimensions (LxWxH) : 218x141x20 mm
The weight : 0.8KG
Colour : Black
Control : Web interface, CGI API, local interface
Mount type : Wall mount
