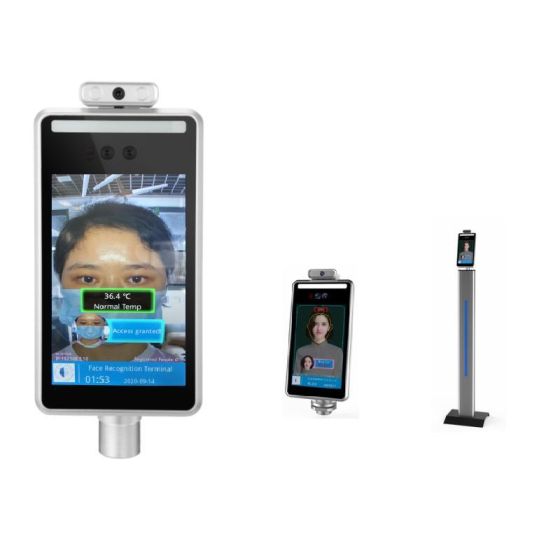

RFID Qr Code High Temper Alarm Detection Face Recognition Temperature Attendance

Turnstile Use Human Body Face Recognition Temperature Measurement Detection Time Attendance Access Control System
RFID QR Code High Temper Alarm Detection Face Recognition Temperature Attendance
Product Advantage:
our own developed face tracking exposure algorithm(linear mode), WDR≥110DB
own patent-protected file storage system (not Linux's original file system)
used all glass material aspheric lens
adopted own top-class face recognition algorithm
Stable quality control, all electronic components chosen from
first-line suppliers, such as Samsung brand memory and Flash
Hardware&software Customerized service, protect customer own design and confidential data

Model NO. : B2002FR-8I-BTH
Transport Package : Paper Box
Specification : 2KG
Trademark : Beward
Origin : China
Production Capacity : 50000/Month
Model : B2002FR-8I-CM-BTH-L06
Hardware : Processor : Dual-Core Processor(Hi3516D V300)+ 1G memory + 8G flash
Operating system : Linux Operating system
Storage : Support TF card storage in the future ( only hardware interface reserved)
Viewing angle : Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Sensor : 1/2.8" Progressive Scan CMOS(IMX307)
Lens : 6mm
Speaker : voice playback content can be customized
Measurement Environment : 16ºC - 40ºC (Indoor without wind, please refer to the end of the file)
Temperature measurementLens : European original lens
Sensors type : European imported sensors
Measurement accuracy : ±0.3ºC
Temperature resolution : 0.1ºC
Temperature measurement distance : ≤40cm
Measurement response time : 300ms
Performance :
Recognition height : 1.2~2.2 meters, angle adjustable
Recognition distance : 0.3~1.5 meters, depends on lens
Recognition time : Less than 0.5 seconds
Storage capacity : 80,000 capture records
Face capacity : 10000pcs
Screen brightness : ≥400 cd/m2
Interface :
Switching output : 1-way switch output, other GPIO port can be customized
Network interface : 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface : 1ch Wiegand interface input/output
RS485 : There is an RS485 interface on the PCB board, but no lead
USB interface : 1ch USB interface
Camera :
Camera : Dual cameras
Effective pixels : 2MP, 1920*1080
Min Illumination : Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR : ≥50db(AGC OFF)
WDR : 120db, ISP algorithm face partial exposure
Resolution : Main Stream: 50HZ: 25fps (1920*1080,1280*720)            60HZ: 30fps (1950*1080,1280*720)
Function :
Web side configuration : support
remote upgrade : support
Regular :
Working humidity : 0~90% relative humidity, no condensation
Salt spray : level Rp6 or above
Antistatic : contact ±6KV, air ±8KV
Powered : DC12V/2A
Device power : 20W(MAX)
Column aperture : 36mm
Equipment size : 252 (L) * 136 (W) * 26 (T) mm
Screen size : 8 inches IPS HD screen
Weight : 1.7 kg
