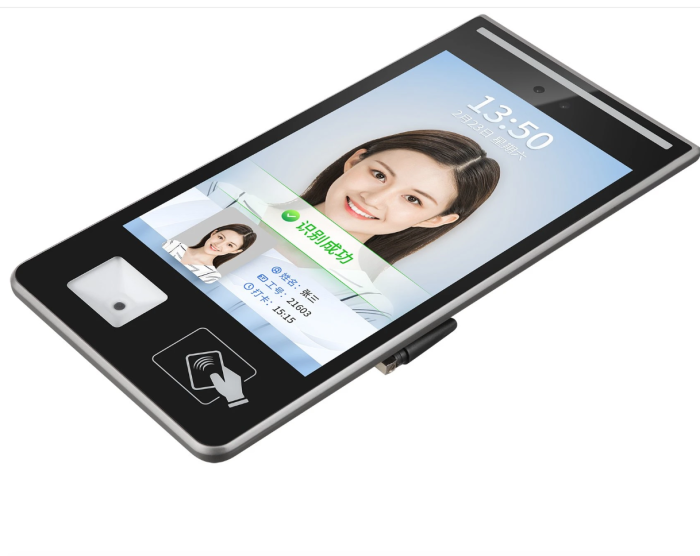

HTTP/Mqtt Free Sdk/API Software 10 Inch Qr+RFID Face Recognition Access Control Outdoor

HTTP/MQTT Free SDK/API Software 10 Inch QR+RFID Face Recognition Access Control Outdoor

Model NO. : face recognition access control outdoor

• Free Software : HTTP/ Mqtt
• Screen Size : 10.1 Inch
• Card Reader : 13.56MHz
• Qr Code Reader : Supports
• Vms Software : Free
• White List : 30000
• Transport Package : Carton Box
• Specification : 319*157*25.2mm
• Trademark : Beward
• Origin : China
• HS Code : 8525801390
• Production Capacity : 50000PCS/Year

hardware :

• processor : Dual-core processor + 1G RAM + 8G EMMC
• operating system : Linux
• storage : Support TF card storage (optional)
• Camera : Binocular, 2.1 million effective pixels, 1920*1080
• Imaging device : 1/2.8" Progressive Scan CMOS
• Lens : 4.5mm focal length
• Swipe module : mifare one (M1), S50, S70, NTAG2xx, etc. 13.56MHz frequency band cards, TK, EM series and other 125KHz frequency band cards (both IC/ID are supported)
• QR code reading module : Support QR Code, PDF417, ECC200, EAN13, Code128 and other two-dimensional codes and one-dimensional codes
• Touch screen module : Capacitive multi-touch screenspeaker : Voice playback content can be customized

performance :

• Recognition height : 1.2~2.3 meters, adjustable angle
• Recognition distance : 0.5~2.5 meters
• Face angle : 30 degrees left and right, 30 degrees up and down
• Recognition time : Less than 0.5 seconds
• storage : 80,000 snapshot records
• Face capacity : 30000

power input : DC12V/3A

• Network Interface : 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
• Wiegand interface : 1 Wiegand interface output, 1 Wiegand interface input
• Door sensor interface : 1 channel door sensor interface input
• Door opening interface : 1 door open interface input
• GPIO : GPIO interface
• Door lock interface : 1 way door lock interface output
• Communication Interface : 1 RS485 communication interface


Function :
Web configuration : Support
Remote upgrade of equipment : Support
Deployment method : Support public network and local area network use
Camera parameters :
Video camera : Binocular camera, full glass lens, visible light and near infrared, support live detection
Effective Pixels : 2.1 million effective pixels, 1920*1080
Minimum illumination : Color 0.01Lux @F1.2 (ICR); black and white 0.001Lux @F1.2 (ICR)
Signal-to-noise ratio : ≥50db(AGC OFF)
Wide dynamic : 120db, partial exposure of ISP algorithm face
Video encoding : H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding
Dual stream resolution : Main stream
Secondary stream : 720*576, 1-25(30) frames/sec/640*480, 1-25(30) frames/sec 320*240, 1-25(30) frames/sec
General parameters :
Operating temperature : -30ºC - 70ºC
Working humidity : 0~90% relative humidity, non-condensing
equipment power : 20W(MAX)
Salt spray grade : Rp6 level or above
Antistatic : Contact ±6KV, air ±8KV
powered by : DC12V/2A
Protection level : IP66
Screen specifications : 10.1 inch HD IPS screen
Equipment size : 319*157*25.2mm

Company Profile
Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.

FAQ
Q: Do you sell at retail?
A: Sorry,we are factory and it's need technical person to install it,so we are not sell to personal user directly,thanks.
Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
