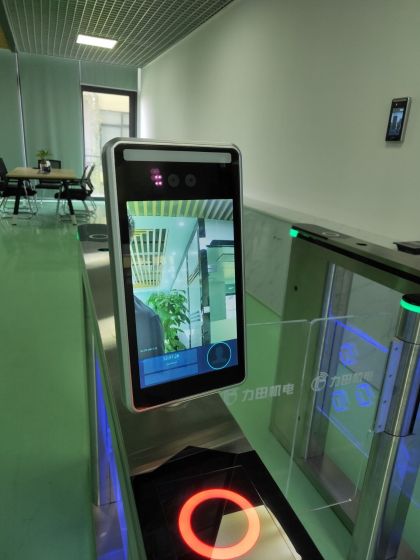

4G Time Attendance Access Control Wireless Face Recognition Terminal Unit

4G Time Attendance Access Control Wireless Face Recognition Terminal Unit

Model NO. : B2002FR-8I-WM-4G-RK
Screen Size : 7 Inch
Wiegand : 26/34 Bits
Function : Face Acess
Transport Package : Carton Box
Specification : 1.7kg
Trademark : Beward
Origin : China
HS Code : 8543709990
Production Capacity : 1000PCS/Month
Model : B2002FR-8I-WM-4G-RK
Hardware : Hi3516D CPU+1G memory+16G EMMC flash
Processor : Dual Core Processor(Hi3516D V300)+ 1G memory + 16G flash
Operating system : Linux Operating system
Viewing angle : Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Sensor : 1/2.8" Progressive Scan CMOS
Lens : 6mm
4G module : Supports LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE, supports max 150mbps downloading and max 50Mbps uploading speed rate.
Wifi module : IEEE 802.11 b/g/n , 2.4Ghz Frequency
Speaker  :  voice playback content can be customized


Performance  :
 Recognition height  :  1.2~2.2 meters, angle adjustable
 Recognition distance  :  0.5~1.5 meters, depends on lens
 Recognition time  :  Less than 0.5 second
 Storage capacity  :  160,000+ capture records
 Face capacity  :  24000pcs
 Screen brightness  :  ≥400 cd/m2
 Network interface  :  1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
 Door sensor interface  :  1ch
 Door open interface  :  1ch
 Door lock interface  :  1ch
 Wiegand interface  :  1ch Wiegand interface input/output
 RS485  :  1ch
 Camera  :  2MP CMOS CAMERA
 Camera  :  Two cameras
 Effective pixels  :  2MP,1920*1080
 Min Illumination  :  Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
 SNR  :  ≥50db(AGC OFF)
 WDR  :  120db, ISP algorithm face partial exposure
 Video Encoding  :  H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding
 Resolution   :  Main stream : 50 hz: 25fps (1920x1080, 1280x720) 60 hz : 30fps (1920x1080, 1280x720)Sub stream: 720x576, 1-25(30)fps/s /640x480, 1-25(30)fps/s, 320x240, 1-25(30)fps/s
 Function  :
 Web side configuration  :  support
 remote upgrade  :  support


Regular  :
 Operating temperature  :  -30ºC - +60ºC
 Working humidity  :  0~90%relative humidity, no condensation
 Salt spray  :  level Rp6 or above
 Antistatic  :  contact ±4KV, air ±8KV
 Power  :  DC12V/3A
 Vandal-proof   :  IK06
 Waterproof  :  IP65
 Power  :  20W(MAX)
 Equipment size  :  252 (length) * 136 (width) * 26 (thickness) mm
 Screen size  :  8 inch IPS screen
 Weight  :  1.7 kg
