HTTP/Mqtt Free Software Sdk Wiegand 26/34 4G Face Access Reader

8 Inch HTTP/MQTT Free Software SDK Wiegand 26/34 4G Face Access Reader

Model : B2002FR-8I-WM-4G-RK

• Hardware : Hi3516D CPU+1G memory+16G EMMC flash
• Processor : Dual Core Processor(Hi3516D V300)+ 1G memory + 16G flash
• Operating system : Linux Operating system
• Viewing angle : Vertical viewing angle: 30°; Horizontal viewing angle: 30°
• Sensor : 1/2.8" Progressive Scan CMOS
• Lens : 6mm
• 4G module : Supports LTE-TDD/LTE
• FDD/HSPA+/GSM/GPRS/EDGE, supports max 150mbps downloading and max 50Mbps uploading speed rate.
  Wifi module : IEEE 802.11 b/g/n , 2.4Ghz Frequency
• Speaker : voice playback content can be customized

Performance :
Recognition height : 1.2~2.2 meters, angle adjustable
Recognition distance : 0.5~1.5 meters, depends on lens
Recognition time : Less than 0.5 second
Storage capacity : 160,000+ capture records
Face capacity : 24000pcs
Screen brightness : ≥400 cd/m2
Network interface : 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Door sensor interface : 1ch
Door open interface : 1ch
Door lock interface : 1ch
Wiegand interface : 1ch Wiegand interface input/output
RS485 : 1ch
Camera : 2MP CMOS CAMERA
Camera : Two cameras
Effective pixels : 2MP,1920*1080
Min Illumination : Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR : ≥50db(AGC OFF)
WDR : 120db, ISP algorithm face partial exposure
Video Encoding : H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding
Resolution : Main stream : 50 hz: 25fps (1920x1080, 1280x720) 60 hz : 30fps (1920x1080, 1280x720)Sub stream: 720x576, 1-25(30)fps/s /640x480, 1-25(30)fps/s, 320x240, 1-25(30)fps/s
Function :
Web side configuration : support
remote upgrade : support
Regular :
Operating temperature : -30ºC - +60ºC
Working humidity : 0~90%relative humidity, no condensation
Salt spray : level Rp6 or above
Antistatic : contact ±4KV, air ±8KV
Power : DC12V/3A
Vandal-proof : IK06
Waterproof : IP65
Power : 20W(MAX)
Equipment size : 252 (length) * 136 (width) * 26 (thickness) mm
Screen size : 8 inch IPS screen
Weight : 1.7 kg

Main Features:
Support Real Time Human Body Detection
Unique live face recognition algorithm to accurately recognize faces, face recognition time is less than 0.5s
Mean time between failures MTBF>50000H
Support for human face tracking exposure in strong backlighting

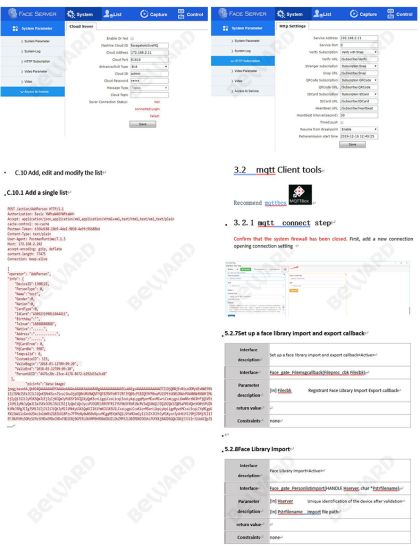

Rich interface protocol, support SDK and HTTP protocol under various platforms such as Linux/Windows TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, MQTT
Using Linux operating system, better system stability.
Support 30000+ face matching library and 80,000+ face recognition records.
Support TF card storage, pictures are stored continuously for 1 year or longer (depends on TF card capacity)
Operating temperature: -30 ° C - +60 ° C
Outdoor IP65 waterproof and dust proof
The device supports local login to manage, query, and configure
8-inch IPS touch screen, resolution 800*1280
Rich hardware interface (I/O, WG26, WG34, RJ45, Door Sensor, Door Open, Door Lock, RS485)
