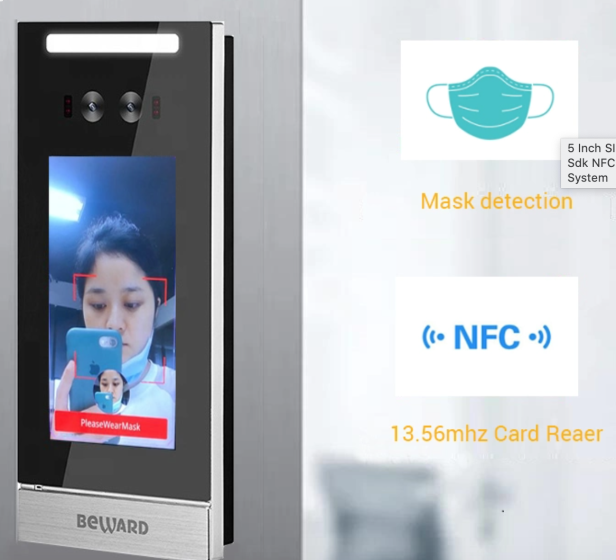

5 Inch SIP Two Way Talk Face Reader Free API Sdk NFC Time Attendance Door Access Control System
- Model NO. : B2002FR-5I-WM-L06
- Transport Package : Paper Box
- Specification : 0.8KGS
- Trademark : Beward
- Origin : China
- Production Capacity : 50000/Month
- Chipset: HisiliconOS: LinuxCPU: Dual-coreMemory: 1GB,8GB eMMC
- Display : 5-inch,1280*720
- Sensor : Infrared Sensor
- Two Camera : Dual-lens Camera (RGB+IR)
- Fill Light : White LED
- RFID Card Reader : Mifare S50,Mifare S70,ISO14443 TYPE-A ect compatible
- Communications : Relay, WG26,WG34,RJ45
- Face recognition : Distance : 0.5-1.5MHeight :1.2-2.2MTime:less
- than 0.5sAngle:30 degrees left and right, 30 degrees up and
- downCapacity:10,000 usersCapture capacity:60,000 capture records
- Camera : Two cameras,all-glass lens,visible light and near-infrared,supports live detection
- Effective pixels : 2.1MP effective pixels,1920*1080
SNR : ≥50db(AGC OFF)
WDR : 110db,ISP algorithm
- Minimum illumination : Color 0.01Lux @F1.2(ICR);black white 0.001Lux @F1.2 (ICR)
- Audio : Digital Audio Speaker
- Operating temperature : -30ºC - +60ºC
- Power Supply : 12V/2A
- Bracket (Optional) : Wall Mount Bracket
- Dimensions (mm) : 205(L) * 95(W) *20(H)mm
Features of Time Attendance Access Control Terminal
1.Using LINUX operating system,the system is stable
2.5-inch IPS full-view high-definition display
3. Provide HTTP API for secondary development
4.Configuration via the web interface for small objects
5. Support for human face tracking exposure in strong backlighting
6High safety,support living detection,anti false photo authentication Detailed Photos Factory&Development
Q: Do you sell at retail?
A: Sorry,we are factory and it's need technical person to install it,so we are not sell to personal user directly,thanks.
Q: Are you trading company or manufacturer?
A: We are manufacturer and provide factory price directly.
Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
|With Built-in Battery||No|
