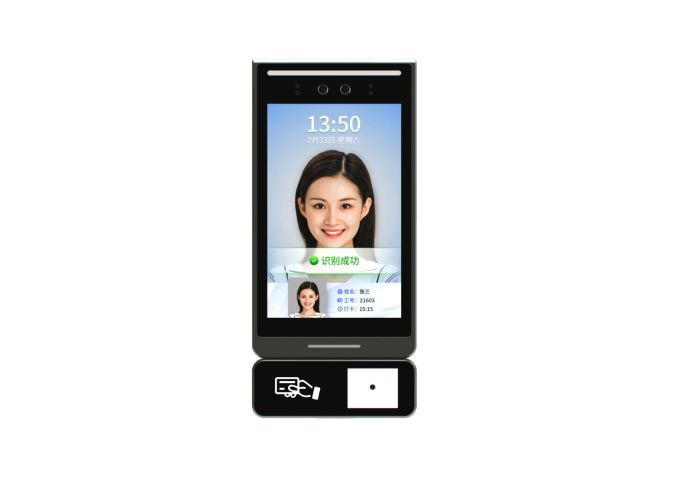

Free Software API Sdk Face Recognition Camera with Qr and Card Reader

SKU
WCAM101119340630
Special Price US$189.05 Regular Price US$210.06
In stock
Overview
Free Software API Sdk Face Recognition Camera with Qr and Card Reader


Model NO. : B2002FR-8I-UTS-RF-WM(WIFI)
System : Linux
Door Sensor : Supports
Name : Terminal with Face Recognition Software
Function : Face and Mask Detection, Door Entry
Size : 8 Inch Touch Screen
Face Capacity : 30000+ Face
Record Capacitry : 80000 Face
Bluetooth : Supports
Transport Package : Standard Package
Specification : 900g
Trademark : OEM
Origin : China
HS Code : 851769900
Production Capacity : 20000

Hardware :

  • Processor : Dual Core ARM Cortex-A7 and RISC-V MCU
  • Operating system : Linux Operating system
  • Memory : 1G+8G
  • Camera : Dual camera, 2MP, 1920*1080
  • Sensor : 1/2.8" Progressive Scan CMOS
  • Lens : 4.5mm

WiFi module : 2.4GHz frequency band, IEEE802 b/g/n protocol; 5GHz frequency band, IEEE802 a/n/ac protocol
Bluetooth module : GFSK, DQPSK, 8DPSK, LE (1Mbps), 2LE (2Mbps) technical specifications
Card swiping module (optional) : 13. 56MHz, support Mifare S50, S70 card, ultralinght card, NTAG card, DESFire D21, D41, D81, non-contact CPU card
4G module (optional) : Support LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS and other network standards, the maximum downlink rate is 160Mbps, and the maximum uplink rate is 60Mbps
QR code Scanning module (optional) : 640 (horizontal) X 480 (vertical) CMOS, horizontal viewing angle 31°, support QR code, PDF417, EAN13, EAN8, UPC-A and other one-dimensional codes, two-dimensional codes
Touch screen module : Multi-touch capacitive touch screen
Speaker : voice playback content can be customized

Performance :
Recognition height : 1.2~2.3 meters, angle adjustable
Recognition distance : 0.5~2.5 meters
Recognition angle : Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Recognition time : Less than 0.3 seconds
Storage capacity : 80,000 capture records
Face capacity : 30,000pcs

Interface :
Power out : DC12V/2A
Network interface : 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface : 1ch Wiegand interface input/output
Alarm interface : 1ch alarm interface
Door senor interface : 1ch magnetic interface
Open interface : 1ch open door interface
Doorbell interface : 1ch doorbell interface
Lock interface : 1ch lock interface
Communication interface : 1ch RS485 interface

Camera :
Camera : Dual cameras, G+P lens, visible light and near infrared, support liveness detection
Effective pixels : 2MP, 1920*1080
Min Illumination : Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR : ≥50db(AGC OFF)
WDR : 120db, ISP algorithm face partial exposure
Video encoding : H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding
Image : Main Stream
Sub Stream : 704*576, 25 frames/second, 640*480, 25 frames/second, 352*288, 25 frames/second

Regular :
Operating temperature : -40ºC - +70ºC
Working humidity : 0~90% relative humidity, no condensation
Salt spray : level Rp6 or above
Antistatic : contact ±6KV, air ±8KV
Power : DC12V/2A
Waterproof : IP66
Power : 20W(MAX)
Screen size : 8 inches IPS HD screen, Resolution: 1280*800
Equipment size : 242 (L) * 133 (W) * 22 (T) mm

More Information
Description


Model NO. : B2002FR-8I-UTS-RF-WM(WIFI)
System : Linux
Door Sensor : Supports
Name : Terminal with Face Recognition Software
Function : Face and Mask Detection, Door Entry
Size : 8 Inch Touch Screen
Face Capacity : 30000+ Face
Record Capacitry : 80000 Face
Bluetooth : Supports
Transport Package : Standard Package
Specification : 900g
Trademark : OEM
Origin : China
HS Code : 851769900
Production Capacity : 20000

Hardware :

  • Processor : Dual Core ARM Cortex-A7 and RISC-V MCU
  • Operating system : Linux Operating system
  • Memory : 1G+8G
  • Camera : Dual camera, 2MP, 1920*1080
  • Sensor : 1/2.8" Progressive Scan CMOS
  • Lens : 4.5mm

WiFi module : 2.4GHz frequency band, IEEE802 b/g/n protocol; 5GHz frequency band, IEEE802 a/n/ac protocol
Bluetooth module : GFSK, DQPSK, 8DPSK, LE (1Mbps), 2LE (2Mbps) technical specifications
Card swiping module (optional) : 13. 56MHz, support Mifare S50, S70 card, ultralinght card, NTAG card, DESFire D21, D41, D81, non-contact CPU card
4G module (optional) : Support LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS and other network standards, the maximum downlink rate is 160Mbps, and the maximum uplink rate is 60Mbps
QR code Scanning module (optional) : 640 (horizontal) X 480 (vertical) CMOS, horizontal viewing angle 31°, support QR code, PDF417, EAN13, EAN8, UPC-A and other one-dimensional codes, two-dimensional codes
Touch screen module : Multi-touch capacitive touch screen
Speaker : voice playback content can be customized

Performance :
Recognition height : 1.2~2.3 meters, angle adjustable
Recognition distance : 0.5~2.5 meters
Recognition angle : Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Recognition time : Less than 0.3 seconds
Storage capacity : 80,000 capture records
Face capacity : 30,000pcs

Interface :
Power out : DC12V/2A
Network interface : 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface : 1ch Wiegand interface input/output
Alarm interface : 1ch alarm interface
Door senor interface : 1ch magnetic interface
Open interface : 1ch open door interface
Doorbell interface : 1ch doorbell interface
Lock interface : 1ch lock interface
Communication interface : 1ch RS485 interface

Camera :
Camera : Dual cameras, G+P lens, visible light and near infrared, support liveness detection
Effective pixels : 2MP, 1920*1080
Min Illumination : Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR : ≥50db(AGC OFF)
WDR : 120db, ISP algorithm face partial exposure
Video encoding : H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding
Image : Main Stream
Sub Stream : 704*576, 25 frames/second, 640*480, 25 frames/second, 352*288, 25 frames/second

Regular :
Operating temperature : -40ºC - +70ºC
Working humidity : 0~90% relative humidity, no condensation
Salt spray : level Rp6 or above
Antistatic : contact ±6KV, air ±8KV
Power : DC12V/2A
Waterproof : IP66
Power : 20W(MAX)
Screen size : 8 inches IPS HD screen, Resolution: 1280*800
Equipment size : 242 (L) * 133 (W) * 22 (T) mm

SKU WCAM101119340630
Weight 1.000000
selling_potential 3
With Built-in Battery No
Condition New
