HTTP WiFi 4G Qr IC&ID Card Reader Terminal with Free Software Face Access

Wifi 4G QR IC&ID Card Reader Facial Recognition Reader Terminal With Free Software
Description of Face Recognition Attendance Access Control Machine

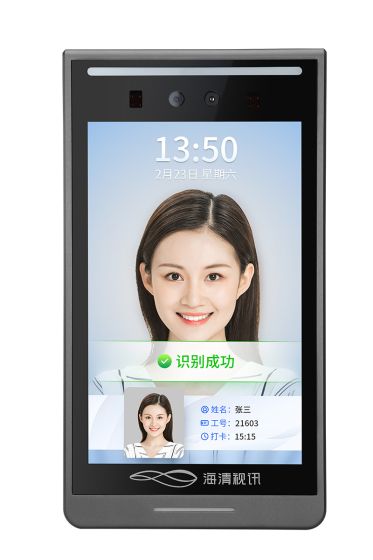

Facial recognition terminal with 8 inch touch screen display.It's built-in face recognition algorithm to accurately recognize faces,face recognition time is less than 0.5s.It's has 30,000 face template capacity.Face recognition reader can be used in smart communities,access control channels,face attendance,hotels,office buildings,schools,shopping malls and other places,which helps to achieve intelligent security control.
Functions of AI Face Recognition Attendance Machine
1. Touch screen
2. Face recognition and mask detection
3. Support Living detection
4. Intelligent Time Attendence
5. White LED backlight for night work
7. Export Attendance report from face recognition software

Features of Time Attendance Terminal
1. Support Real Time Human Body Detection
2. 8-inch IPS touch screen,resolution 800*1280
3. Support for human face tracking exposure in strong backlighting
4. Support device side registration of faces and configuration of device functions
5. Support 30,000 face users and 80,000+ face recognition records.
6. The device supports connect to an external access control host or Wiegand reader through the international standard Wiegand
7.Rich interface protocol,support SDK and HTTP protocol under various platforms such as Linux/Windows TCP/IP, UDP, RTP, RTSP, RTCP, HTTP,DNS,DDNS,DHCP,MQTT

Model NO. : B2002FR-8I-UTS-RF-WM(WIFI)
Function : Face and Mask Detection, Door Entry
Size : 8 Inch Touch Screen
Face Capacity : 30000+ Face
Record Capacitry : 80000 Face
Bluetooth : Supports
Transport Package : Standard Package
Specification : 900g
Trademark : OEM
Origin : China
HS Code : 851769900
Production Capacity : 20000
Hardware :
Processor : Dual Core ARM Cortex-A7 and RISC-V MCU
Operating system : Linux Operating system
Memory : 1G+8G
Camera : Dual camera, 2MP, 1920*1080
Sensor : 1/2.8" Progressive Scan CMOS
Lens : 4.5mm
WiFi module : 2.4GHz frequency band, IEEE802 b/g/n protocol; 5GHz frequency band, IEEE802 a/n/ac protocol
Bluetooth module : GFSK, DQPSK, 8DPSK, LE (1Mbps), 2LE (2Mbps) technical specifications
Card swiping module (optional) : 13. 56MHz, support Mifare S50, S70 card, ultralinght card, NTAG card, DESFire D21, D41, D81, non-contact CPU card
4G module (optional) : Support LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS and other network standards, the maximum downlink rate is 160Mbps, and the maximum uplink rate is 60Mbps
QR code Scanning module (optional) : 640 (horizontal) X 480 (vertical) CMOS, horizontal viewing angle 31°, support QR code, PDF417, EAN13, EAN8, UPC-A and other one-dimensional codes, two-dimensional codes
Touch screen module : Multi-touch capacitive touch screen
Speaker : voice playback content can be customized
Performance :
Recognition height : 1.2~2.3 meters, angle adjustable
Recognition distance : 0.5~2.5 meters
Recognition angle : Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Recognition time : Less than 0.3 seconds
Storage capacity : 80,000 capture records
Face capacity : 30,000pcs
Interface :
Power out : DC12V/2A
Network interface : 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface : 1ch Wiegand interface input/output
Alarm interface : 1ch alarm interface
Door senor interface : 1ch magnetic interface
Open interface : 1ch open door interface
Doorbell interface : 1ch doorbell interface
Lock interface : 1ch lock interface
Communication interface : 1ch RS485 interface
Camera :
Camera : Dual cameras, G+P lens, visible light and near infrared, support liveness detection
Effective pixels : 2MP, 1920*1080
Min Illumination : Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR : ≥50db(AGC OFF)
WDR : 120db, ISP algorithm face partial exposure
Video encoding : H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding
Image : Main Stream
Sub Stream : 704*576, 25 frames/second, 640*480, 25 frames/second, 352*288, 25 frames/second
Regular :
Operating temperature : -40ºC - +70ºC
Working humidity : 0~90% relative humidity, no condensation
Salt spray : level Rp6 or above
Antistatic : contact ±6KV, air ±8KV
Power : DC12V/2A
Waterproof : IP66
Power : 20W(MAX)
Screen size : 8 inches IPS HD screen, Resolution: 1280*800
Equipment size : 242 (L) * 133 (W) * 22 (T) mm

Company Profile
Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.
FAQ
Q: Do you sell at retail?
A: Sorry,we are factory and it's need technical person to install it,so we are not sell to personal user directly,thanks.
Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
