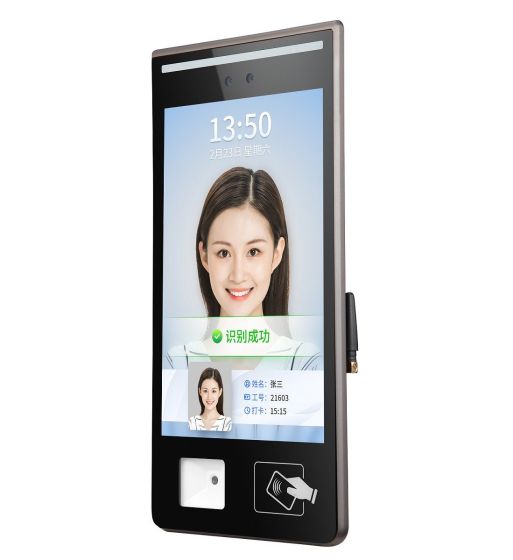

4G WiFi Qr RFID Touch Screen Face Access Terminal Unit for School Bus

Free SDK/API Software 10 Inch QR+RFID Face Recognition Access Control Outdoor With 4G for Bus

• Main features
• Support binocular live detection
• Supports movement and face tracking exposure of people in strong backlight environment
• Unique face recognition algorithm, accurate face recognition, face recognition time is less than 0.5s
• Support extended temperature measurement module to measure body temperature at close range, and high temperature alarm, support temperature data interface protocol docking
• Using LINUX operating system, the system is stable
• 265 encoding format video stream is directly connected to storage devices such as NVR through ONVIF protocol and GB28181 protocol
• Support TF card local storage, continuous storage of pictures for 1 year, continuous storage of videos for 1 month or longer (related to the optional TF card capacity)
• Mean time between failures MTBF>50000h
• Support 30,000+ face comparison library and 80,000 recognition records
• Rich interface protocols, supporting TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocols under multiple platforms such as Windows/Linux
• Operating temperature::-30ºC-70ºC
• Support anti-dismantling alarm
• Built-in QR code reader
• Built-in IC card reader
• Abundant hardware interfaces (I/O, WG26, WG34, RJ45, door sensor, door opening, RS485)
• 1 inch IPS capacitive touch screen, no image smear, no delay
• Automatic gain, automatic white balance, so that the true color of the image can be restored naturally
• Built-in black light sensor for video surveillance, low-light recognition is more accurate
• 3D noise reduction and fog penetration technology make the monitoring picture under low illumination more clear and delicate
• Support partial shielding of video area
• Automatic white balance, manual white balance
• Support maximum exposure time setting
• Support mobile phone monitoring settings
• Support 2D noise reduction, 3D noise reduction
• Support recording plan time period and upload method setting
• Support video brightness, contrast, hue, saturation, gamma adjustment
• Support setting the longest automatic exposure time
• Support smart face exposure and face smart enhancement settings
  Free Sotware



Specifications:

• hardware:processor Dual-core processor + 1G RAM + 8G EMMC
• operating system:Linux
• storage:Support TF card storage (optional)
  Camera:Binocular, 2.1 million effective pixels, 1920*1080
• Imaging device:1/2.8" Progressive Scan CMOS
• Lens:4.5mm focal length
• Swipe module:mifare one (M1), S50, S70, NTAG2xx, etc. 13.56MHz frequency band cards, TK, EM series and other 125KHz frequency band cards (both IC/ID are supported)
• QR code reading module:Support QR Code, PDF417, ECC200, EAN13, Code128 and other two-dimensional codes and one-dimensional codes
• Touch screen module:Capacitive multi-touch screen
• Speaker:Voice playback content can be customized
  performance:Recognition
• Height:1.2~2.3 meters, adjustable angle
• Recognition distance0.5~2.5 meters
• Face angle:30 degrees left and right, 30 degrees up and down
• Recognition time:Less than 0.5 seconds
• Storage:80,000 snapshot records
• Face capacity:30000

Interface

• power input:DC12V/3A
• Network Interface:1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
• Wiegand interface:1 Wiegand interface output, 1 Wiegand interface input
• Door sensor interface:1 channel door sensor interface input
  Door opening interface:1 door open interface input
  GPIO
  GPIO interface
  Door lock interface
  1 way door lock interface output
  Communication Interface
  1 RS485 communication interface
• Function:Web configuration
  Support:Remote upgrade of equipment
  Support
  Deployment method:Support public network and local area network use
  Camera parameters
  Video camera:Binocular camera, full glass lens, visible light and near infrared, support live detection
  Effective Pixels:2.1 million effective pixels, 1920*1080
  Minimum illumination:Color 0.01Lux @F1.2 (ICR); black and white 0.001Lux @F1.2 (ICR)
  Signal-to-noise ratio:≥50db(AGC OFF)
  Wide dynamic:120db, partial exposure of ISP algorithm face
  Video encoding:H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding
  Dual stream resolution
  Main stream
  50Hz: 25fps (1920×1080,1280×720)
  60Hz: 30fps (1920×1080,1280×720)
  Secondary stream
  720*576, 1-25(30) frames/sec/640*480, 1-25(30) frames/sec 320*240, 1-25(30) frames/sec

  General parameters
  Operating temperature:-30ºC - 70ºC
  Working humidity:0~90% relative humidity, non-condensing
  equipment power:20W(MAX)
  Salt spray grade:Rp6 level or above
  Antistatic:Contact ±6KV, air ±8KV
  powered by:DC12V/2A
  Protection level:IP66
  Screen specifications:10.1 inch HD IPS screen
  Equipment size:319*157*25.2mm
  FAQ
  Q: Do you sell at retail?
  A: Sorry,we are factory and it's need technical person to install it,so we are not sell to personal user directly,thanks.
  Q: Do you provide SDK/API for secondary development?
  A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
  Q: What's the MOQ of product?
  A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
  Q: What are your terms of payment?
  A: We accept Paypal,Western Union and TT before production.
  Q: Could you provide OEM/ODM for customers?
  A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
  Q: What's the delivery time?
  A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
  Q: What's the warranty and support?
  A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
  We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
  Model NO. : B2002FR-10I-UTS-WM-RK
  White List : 30000
  Transport Package : Carton Box
  Specification : 319*157*25.2mm
  Trademark : Beward
  Origin : China
  HS Code : 8525801390
  Production Capacity : 50000PCS/Year
  hardware :
  processor : Dual-core processor + 1G RAM + 8G EMMC
  operating system : Linux
  storage : Support TF card storage (optional)
  Camera : Binocular, 2.1 million effective pixels, 1920*1080
  Imaging device : 1/2.8" Progressive Scan CMOS
  Lens : 4.5mm focal length
  Swipe module : mifare one (M1), S50, S70, NTAG2xx, etc. 13.56MHz frequency band cards, TK, EM series and other 125KHz frequency band cards (both IC/ID are supported)
  QR code reading module : Support QR Code, PDF417, ECC200, EAN13, Code128 and other two-dimensional codes and one-dimensional codes
  Touch screen module : Capacitive multi-touch screen
  speaker : Voice playback content can be customized
  performance :
  Recognition height : 1.2~2.3 meters, adjustable angle
  Recognition distance : 0.5~2.5 meters
  Face angle : 30 degrees left and right, 30 degrees up and down
  Recognition time : Less than 0.5 seconds
  storage : 80,000 snapshot records
  Face capacity : 30000
  interface :
  power input : DC12V/3A
  Network Interface : 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
  Wiegand interface : 1 Wiegand interface output, 1 Wiegand interface input
  Door sensor interface : 1 channel door sensor interface input
  Door opening interface : 1 door open interface input
  GPIO : GPIO interface
  Door lock interface : 1 way door lock interface output
  Communication Interface : 1 RS485 communication interface
  Function :
  Web configuration : Support
  Remote upgrade of equipment : Support
  Deployment method : Support public network and local area network use
  Camera parameters :
  Video camera : Binocular camera, full glass lens, visible light and near infrared, support live detection
  Effective Pixels : 2.1 million effective pixels, 1920*1080
  Minimum illumination : Color 0.01Lux @F1.2 (ICR); black and white 0.001Lux @F1.2 (ICR)
  Signal-to-noise ratio : ≥50db(AGC OFF)
  Wide dynamic : 120db, partial exposure of ISP algorithm face
  Video encoding : H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding
  Dual stream resolution : Main stream
  Secondary stream : 720*576, 1-25(30) frames/sec/640*480, 1-25(30) frames/sec 320*240, 1-25(30) frames/sec
  General parameters :
  Operating temperature : -30ºC - 70ºC
  Working humidity : 0~90% relative humidity, non-condensing
  equipment power : 20W(MAX)
  Salt spray grade : Rp6 level or above
  Antistatic : Contact ±6KV, air ±8KV
  powered by : DC12V/2A
  Protection level : IP66
  Screen specifications : 10.1 inch HD IPS screen
  Equipment size : 319*157*25.2mm
