School Bus 4G Face Access Camera Time Attendance Machine with Free Software and Sdk

`

Time Attendance Machine 10 Inch QR+RFID Face Recognition Access Control Outdoor With 4G for Bus

• Main featuresSupport binocular live detection
  Supports movement and face tracking exposure of people in strong backlight environment
• Unique face recognition algorithm, accurate face recognition, face recognition time is less than 0.5s
• Support extended temperature measurement module to measure body temperature at close range, and high temperature alarm, support temperature data interface protocol docking
• Using LINUX operating system, the system is stable
  265 encoding format video stream is directly connected to storage devices such as NVR through ONVIF protocol and GB28181 protocol
  Support TF card local storage, continuous storage of pictures for 1 year, continuous storage of videos for 1 month or longer (related to the optional TF card capacity)
• Mean time between failures MTBF>50000h
• Support 30,000+ face comparison library and 80,000 recognition records
• Rich interface protocols, supporting TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS,

DDNS, DHCP, SMTP, UPNP, MQTT protocols under multiple platforms such as Windows/Linux

• Operating temperature:-30ºC-70ºC
• Support anti-dismantling alarm
• Built-in QR code reader
• Built-in IC card reader
• bundant hardware interfaces (I/O, WG26, WG34, RJ45, door sensor, door opening, RS485)
• 1 inch IPS capacitive touch screen, no image smear, no delay
  Automatic gain, automatic white balance, so that the true color of the image can be restored naturally
• Built-in black light sensor for video surveillance, low-light recognition is more accurate
• 3D noise reduction and fog penetration technology make the monitoring picture
• under low illumination more clear and delicate
• Support partial shielding of video area
• Automatic white balance, manual white balance
• Support maximum exposure time setting
• Support mobile phone monitoring settings
• Support 2D noise reduction, 3D noise reduction
• Support recording plan time period and upload method setting
• Support video brightness, contrast, hue, saturation, gamma adjustment
• Support setting the longest automatic exposure time
• Support smart face exposure and face smart enhancement settings

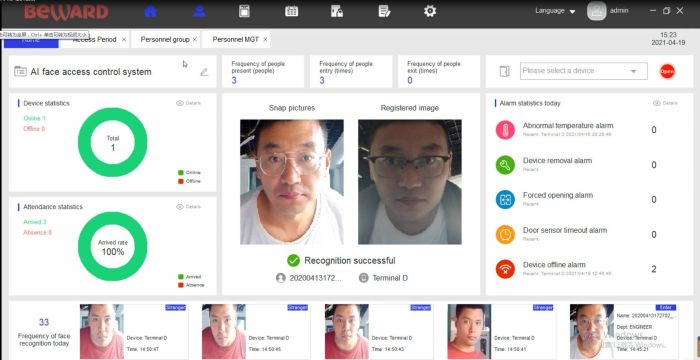

  Free Sotware



Specifications:
hardware
processor:Dual-core processor + 1G RAM + 8G EMMC
operating system:Linux
storage:Support TF card storage (optional)
Camera:Binocular, 2.1 million effective pixels, 1920*1080
Imaging device:1/2.8" Progressive Scan CMOS
Lens:4.5mm focal length
Swipe module:mifare one (M1), S50, S70, NTAG2xx, etc. 13.56MHz frequency band cards, TK, EM series and other 125KHz frequency band cards (both IC/ID are supported)
QR code reading module:Support QR Code, PDF417, ECC200, EAN13, Code128 and other two-dimensional codes and one-dimensional codes
Touch screen module:Capacitive multi-touch screen
speaker:Voice playback content can be customized
performance:Recognition height 1.2~2.3 meters, adjustable angle
Recognition distance:0.5~2.5meters
Face angle:30 degrees left and right, 30 degrees up and down
Recognition time:Less than 0.5 seconds
storage:80,000 snapshot records
Face capacity:30000

interface

power input:DC12V/3A
Network Interface:1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface:1 Wiegand interface output, 1 Wiegand interface input
Door sensor interface:1 channel door sensor interface input
Door opening interface:1 door open interface input GPIO interface
Door lock interface:1 way door lock interface output
Communication Interface:1 RS485 communication interface
Function
Web configuration:Support
Remote upgrade of equipment:Support
Deployment method:Support public network and local area network use
Camera parameters:Video camera Binocular camera, full glass lens, visible light and near infrared, support live detection
Effective Pixels:2.1 million effective pixels, 1920*1080
Minimum illumination:Color 0.01Lux @F1.2 (ICR); black and white 0.001Lux @F1.2 (ICR)
Signal-to-noise ratio:≥50db(AGC OFF)
Wide dynamic:120db, partial exposure of ISP algorithm face
Video encoding:H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding
Dual stream resolution:Main stream
50Hz: 25fps (1920×1080,1280×720)
60Hz: 30fps (1920×1080,1280×720)
Secondary stream
720*576, 1-25(30) frames/sec/640*480, 1-25(30) frames/sec 320*240, 1-25(30) frames/sec

General parameters
Operating temperature:-30ºC - 70ºC
Working humidity:0~90% relative humidity, non-condensing
equipment power:20W(MAX)
Salt spray grade:Rp6 level or above
Antistatic:Contact ±6KV, air ±8KV
powered by:DC12V/2A
Protection level:IP66
Screen specifications:10.1 inch HD IPS screen
Equipment size:319*157*25.2mm

Our advantages:
1.Make the reliable IP security surveillance cameras used for professional surveillance project
2.Strong and experienced R&D engineer team,offer SDK&API for you,meanwhile we can help and support you to develop,revise and integrate to your own system
3.As a developer of professional software and web applications for managing video surveillance systems,we developing competitive and reliable products that meet the requirement of out customers.

FAQ
Q: Do you sell at retail?
A: Sorry,we are factory and it's need technical person to install it,so we are not sell to personal user directly,thanks.
Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
Model NO. : B2002FR-10I-UTS-WM-RK
Screen Size : 10.1 Inch
Card Reader : 13.56MHz
Qr Code Reader : Supports
Vms Software : Free
White List : 30000
Transport Package : Carton Box
Specification : 319*157*25.2mm
Trademark : Beward
Origin : China
HS Code : 8543709990
Production Capacity : 50000PCS/Year
hardware :
processor : Dual-core processor + 1G RAM + 8G EMMC
operating system : Linux
storage : Support TF card storage (optional)
Camera : Binocular, 2.1 million effective pixels, 1920*1080
Imaging device : 1/2.8" Progressive Scan CMOS
Lens : 4.5mm focal length
Swipe module : mifare one (M1), S50, S70, NTAG2xx, etc. 13.56MHz frequency band cards, TK, EM series and other 125KHz frequency band cards (both IC/ID are supported)
QR code reading module : Support QR Code, PDF417, ECC200, EAN13, Code128 and other two-dimensional codes and one-dimensional codes
Touch screen module : Capacitive multi-touch screen
speaker : Voice playback content can be customized
performance :
Recognition height : 1.2~2.3 meters, adjustable angle
Recognition distance : 0.5~2.5 meters
Face angle : 30 degrees left and right, 30 degrees up and down
Recognition time : Less than 0.5 seconds
storage : 80,000 snapshot records
Face capacity : 30000
interface :
power input : DC12V/3A
Network Interface : 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface : 1 Wiegand interface output, 1 Wiegand interface input
Door sensor interface : 1 channel door sensor interface input
Door opening interface : 1 door open interface input
GPIO : GPIO interface
Door lock interface : 1 way door lock interface output
Communication Interface : 1 RS485 communication interface
Function :
Web configuration : Support
Remote upgrade of equipment : Support
Deployment method : Support public network and local area network use
Camera parameters :
Video camera : Binocular camera, full glass lens, visible light and near infrared, support live detection
Effective Pixels : 2.1 million effective pixels, 1920*1080
Minimum illumination : Color 0.01Lux @F1.2 (ICR); black and white 0.001Lux @F1.2 (ICR)
Signal-to-noise ratio : ≥50db(AGC OFF)
Wide dynamic : 120db, partial exposure of ISP algorithm face
Video encoding : H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding
Dual stream resolution : Main stream
Secondary stream : 720*576, 1-25(30) frames/sec/640*480, 1-25(30) frames/sec 320*240, 1-25(30) frames/sec
General parameters :
Operating temperature : -30ºC - 70ºC
Working humidity : 0~90% relative humidity, non-condensing
equipment power : 20W(MAX)
Salt spray grade : Rp6 level or above
Antistatic : Contact ±6KV, air ±8KV
powered by : DC12V/2A
Protection level : IP66
Screen specifications : 10.1 inch HD IPS screen
Equipment size : 319*157*25.2mm
