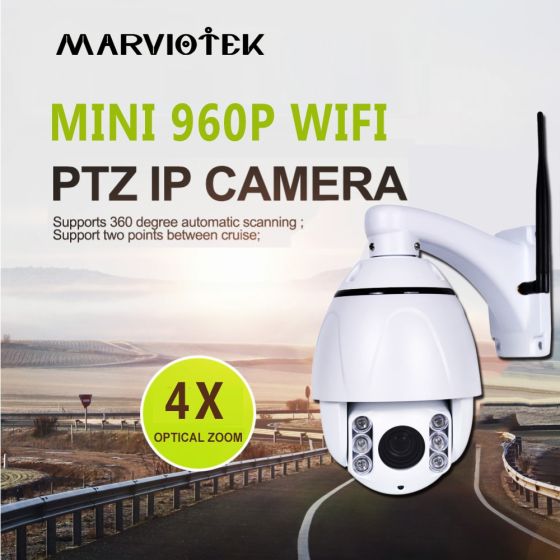

Wireless PTZ High Speed Dome IP Camera WIFI 4X Zoom Waterproof 960P Home Security Video Surveillance

SKU

32971462982

Special Price US$166.19 Regular Price US$184.66

In stock

Overview

Wireless PTZ High Speed Dome IP Camera WIFI 4X Zoom Waterproof 960P Home Security Video Surveillance Camera Outdoor ONVIF IR 60M...

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Product overview ( 4.5" mini PTZ Dome Camera)

Specifications: 4.5" Pan-Tilt-Zoom IP Camera, Pan Range: 0-355 °, Tilt Range 0-90°. Remote Pan/Tilt Functionality with 4x Optical Zoom, IR night vision 60meters. Premium 960 Video Resolution, 2.8-12mm 4X Motorized Zoom Lens. H.264 Video Compression. Support Onvif 2.4 protocol ,work with Hikvision, Dahua, XM NVR . One Key Connection With HIKVISION NVR/CMS .TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP. Perfect ceiling install for both indoor and outdoor places (come with a metal base plate). Built-in Surge and Lightning Protection Devices, Working temperature: -20℃~+60℃ 6 presets;1 patrol;1 pattern;support AB scan; IP66 waterproof , anti-explosion glass and Aluminum cover that can be used in harsh environment.
CAMERA	Sensor Image	1/3" 1.3 Megapixel CMOS Sensor
	EFFECTIVE PIXEL	1280*960
	SCANNING SYSTEM	Progressive Scan
	SYNCHRONIZATION	Internal
	ELECTRONIC SHUTTER	1/25s~1/50,000s , 1/30s~1/60,000s
	TV SYSTEM	PAL/NTSC
	Video Frame Rate	25fps/30fps at 960P
	MIN. ILLUMINATION	0.01Lux atF1.2(AGC ON), 0Lux IR on
	VIDEO OUTPUT	RJ45
	IR LED	IR LED: 42μ x 6pcs, IR Range: 60M
PAN&TILT	PAN RANGE	0°~350°, Horizontal
	PAN SPEED	120°/s
	TILT RANGE	0°~90°, Vertifcal
	TILT SPEED	45°/s
	QUANTITIES OF PRESETS	255
	PTZ PROTOCOL	PELCO-D/PELCO-P
	BAUD RATE	2400/4800/9600/19200/38400
	SCANNING MODE	Auto Pan/Pattern/Auto Tour
LENS	PIXEL	1.3MP
	IMAGE FORMAT	1/3"
	FOCAL LENGTH	2.8-12MM
	APERTURE	F1.4
	MOUNT	M12
	FIELD ANGLE(D×H×V)	1/2.7": 136°×108.8°×81.6°~ 49.5°×39.6°×29.7°
	IRIS	Fixed
	ZOOM	Motorized
	FOCUS	Auto Pan/Pattern/Auto Tour
FEATURE	SENSE-UP	OFF/ON
	DWDR	OFF/ON
	DEFOG	OFF/ON
	BACKLIGHT COMPENSATION	OFF/BLC/HSBLC
	WHITE BALANCE	ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB
	DAY&NIGHT	EXT/AUTO/COLOR/B/W
	NOISE REDUCTION	2D NR/3D NR
	CAMERA TITLE	OFF/ON
	MOTION DETECTION	OFF/ON
	PRIVACY MASK	OFF/ON
	OSD LANGUAGE	EN/CN/
	INGRESS PROTECTION	IP66
GENERAL	POWER SUPPLY	DC12V±10% POE Optional
	POWER CONSUMPTION	Max 5W
	WORKING ENVIRONMENT	-10°C~+50°C / Less than 95%RH (no condensation).
	DIMENSION	￠105mm x 69mm(H).
	WEIGHT	1.7Kg.

Product packaging

1 * Mini PTZ Dome Camera

bracket and power supply included.

(Note : PoE is optional )
