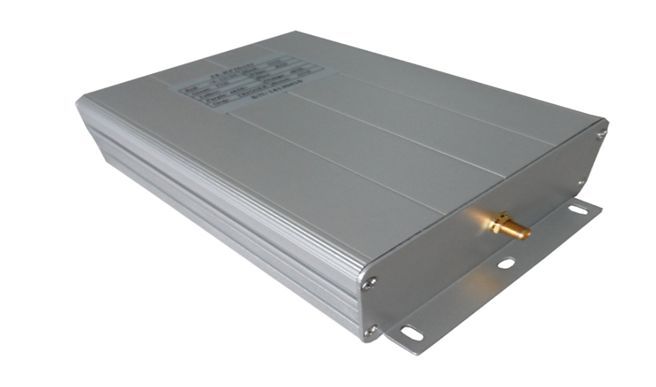

RFID UHF EPC Single Channel Reader Station External Antenna RS232

SKU
HY103S
Special Price US$135.04 Regular Price US$150.04
In stock
Overview

Workstation with External Antenna

  • Operating frequency: 902 to 928MHZ( can different countries or regions) and adjust the
  • Read Distance: 0-12 meters, related to the antenna (optional antenna can be used according to the requirements)
  • Support Protocols: UHF EPC Gen2(iso18000-6c), Iso18000-6b
  • Interface: RS232/485
  • Modes: broad-spectrum frequency-hopping spread spectrum (FHSS) or Fixed Frequency
  • Output power: Max 13dbm( adjustable)
  • provides dynamic link libraries (DLLS) that support the C++/VB/VC/C#/JAVAsecondary development.
  • Low-power design, single 9V/12V power supply.
  • Support answer (interactive) work mode and active work mode.
  • Output format and parameters can be configured in active mode.
  • Fully enclosed aluminum alloy package can effectively prevent external anti-dry worry
More Information
SKU HY103S
Weight 1.000000
Customizable No
With Built-in Battery No
Minimum Order Quantity No
Description
  • Operating frequency: 902 to 928MHZ( can different countries or regions) and adjust the
  • Read Distance: 0-12 meters, related to the antenna (optional antenna can be used according to the requirements)
  • Support Protocols: UHF EPC Gen2(iso18000-6c), Iso18000-6b
  • Interface: RS232/485
  • Modes: broad-spectrum frequency-hopping spread spectrum (FHSS) or Fixed Frequency
  • Output power: Max 13dbm( adjustable)
  • provides dynamic link libraries (DLLS) that support the C++/VB/VC/C#/JAVAsecondary development.
  • Low-power design, single 9V/12V power supply.
  • Support answer (interactive) work mode and active work mode.
  • Output format and parameters can be configured in active mode.
  • Fully enclosed aluminum alloy package can effectively prevent external anti-dry worry
