ZILNK IP Camera 1080P PTZ 5X Zoom Wireless WIFI Outdoor Camera Security Surveillance CCTV Onvif P2P
ZILNK IP Camera 1080P PTZ 5X Zoom 2.7-13.5mm Wireless WIFI Outdoor Camera Security Surveillance CCTV Onvif P2P CamHi View SD Card Support Audio
- Patent Design WIFI PTZ Camera
- DH46H Model: H264 2MP 3516C + Sony 323 low lux CMOS sensor
- Built in RJ45 ethernet cable slot,you can also connect RJ45 ethernet cable to use it as a wired ip camera
- Built in 2.7-13.5mm 5x optical zoom auto focus lens, provide a super wide view angle 96°~26.2°
- Camera can Pan Tilt rotate via Phone /PC, horizon: 0～355°, Vertical: 0～90°
- Support 8 preset points, Support intelligent memory function, automatically return to No. 1 preset point after power failure
- Support audio monitoring and two way audio intercom talk between camera and phone(need buy extra speaker)
- Built in 22pcs infrared IR-LEDs lights with auto IR-CUT, night vision distance 40Meters,Support both day and night vision 7/24 recording
- Built in memory card slot, support TF card / micro SD card up to 128G
- Support Motion detection Recording and email alarm.
- Support send alarm pictures to the e-mail address
- Support upload alarm pictures and videos to the FTP server,
- Support record alarm pictures and videos to Micro SD card,
- Support alarm mobile phone message push
- Support remote access viewing from phone app /PC client at anytime and any place
- Support remote playback/download memory card records from phone app/ IE broswer/ remote PC client
- Provide free android & ios APP and multi-channel CMS PC client software.
- Elegant outline and easy installation.
- Phone app name : CamHi
- Support QR code fast login.
- Support Plug n Play P2P connection
- Support max Onvif 2.4, camera can work with Onvif NVR recorder
- Support hard reset
- Support Alarm record, timing record , manual record
- Support Wall Mounting
- Support Access Point Hotspot (AP mode),you can connect camera with phone by AP connection even no internet there.
- IP66 Outdoor external waterproof for street use

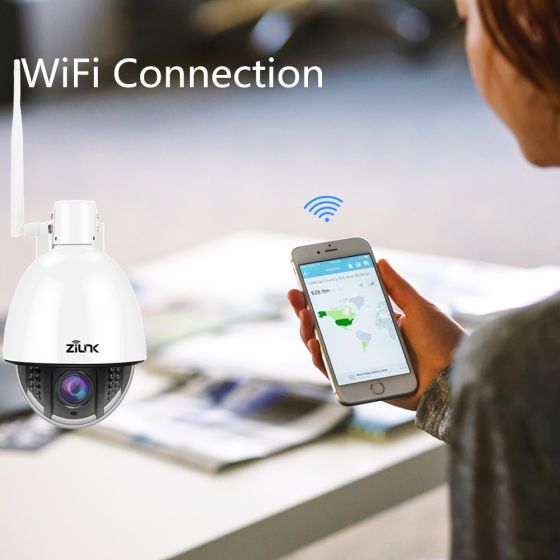

ZILINK Wireless IP Camera, 1920*1080 HD resolution at 30fps, Waterproof, IR Night Vision with clear image even in dark, Zoom lens. Supports 2.4G router WiFi with powerful 5db Antenna included, 5ft cable, easy for you to go through wall when installation. Remote access to the camera on Smartphone via your mobile 4G network or WiFi. Note: Does not support 5G network!
Pan/Tilt/Zoom Complete 360° Coverage
WiFi Camera provides wide viewing angle, it supports horizontal 355 degree(Pan) and vertical 85 degree(Tilt) rotation range
5X Optical Zoom
5x optical Zoom which means no matter you zoom in or zoom out, the image always will be clear and sharpness, it allows you to get closer and cleaner to your target, you will not miss any movement.
Motion-Detection Alarm
When motion objects detected, it will push alarm message to your mobile phone.Through the app can be a key to open or close the detection funtion.
Support 128GB TF Card
Builted in TF Card slot, Support max up to 128GB.
Infrared Night Vison Function
Camera IR LED light will auto turn on when the light is insufficient or no light, to ensure the clear surveillance picture quality.
HD 1080P Wifi Camera
It is HD Resolution with 1080p adopted cmos chipset. You may enjoy the excellent image full hd video and picture from this camera for
Mobile Phone Playback
It supports remotely 7/24 loop recording and playback by an installed micro SD card (up to 4 days events recording by 32GB space).
FTP Upload
Available to set up a FTP web server or NAS to store video recordings and snapshots, or Email alerts as a Free Secure Personal Cloud Server.
|
| DH46H-WH | ||
| Image Sensor | Image Sensor | Color CMOS WXGA(megapixel) HD sensor | |
| Chipset Solution | Hi3518EV200+AR0130 | Hi3516C+Sony323 | |
| Display Resolution | 960p(1280*960) | 1080p(1920*1080) | |
| Mini. Illumination | 0.01Lux | ||
| Lens | Lens Type | Glass Lens | |
| Focal Length | 2.7-13.5mm 5X Zoom | 2.7-13.5mm 5X Zoom | |
| Aperture | F1.2 | ||
| Angle of view | 92° ~ 28° | 106° ~ 30° | |
| Audio | Input/Output | External RCA interface For two-way audio | |
|
| |||
| Video | Image Compression | H.264 | |
| Image Frame Rate | 25fps maximum, downward adjustable | ||
|
| |||
| Image Adjustment | The brightness, contrast, saturation, chroma are adjustable | ||
| Flip Mirror Images | Reversal and mirror | ||
| Night visibility | 22pcs IR-LEDs, night vision range up to 40m | ||
| IR-CUT | Dual IR-CUT filter (Original) | ||
|
| |||
| Light Frequency | 50Hz, 60Hz | ||
| PTZ | Pan/Tilt Angle | Horizontal:355° & Vertical: 85° | |
| 3D Preset | 8 presets, include Horizontal & Vertical Position and Focal length | ||
| Preset Cruise | 1-8 preset positions cruise | ||
|
| |||
| Horizontal Scan | 355° horizontal scan | ||
|
| |||
| Alarm preset | Support | ||
| ONVIF | ONVIF | Support ONVIF 2.2 | |
| Network | Ethernet | 10/100Mbps RJ-45 port | |
| Protocol | HTTP, HTTPS, FTP, TCP/IP, UDP SMTP, DHCP, DDNS, UPnP, RTSP | ||
| Wireless Standard | IEEE 802.11b/g/n | ||
| Data Rate | IEEE802.11b: 11Mbps(Max.) | ||
| Wireless Security | WEP, WPA, WPA2 | ||
| System | By PC | Windows XP, Vista, 7, 8, 10,Mac OS | |
| By Phone | Android, iOS | ||
| Browser | Microsoft IE7 and above version or compatible browser; | ||
| Device Clients | Up to 64-channel,centralized monitor, remote record and playback | ||
| Physical | Dimension | 211(L)*Φ126(W)*236(H) mm | |
| Net/Gross Weight | 1200g/1600g | ||
Package List
1 * CD Software
1 * RJ45 Cable
1 * Mounting screws
1 * Power Adapter
1 * User Manual
1 * Warranty card
1 * Speed Dome Camera
| Description |
window.productDescription=' ZILNK IP Camera 1080P PTZ 5X Zoom 2.7-13.5mm Wireless WIFI Outdoor Camera Security Surveillance CCTV Onvif P2P CamHi View SD Card Support Audio
ZILINK Wireless IP Camera, 1920*1080 HD resolution at 30fps, Waterproof, IR Night Vision with clear image even in dark, Zoom lens. Supports 2.4G router WiFi with powerful 5db Antenna included, 5ft cable, easy for you to go through wall when installation. Remote access to the camera on Smartphone via your mobile 4G network or WiFi. Note: Does not support 5G network!
Pan/Tilt/Zoom Complete 360° Coverage WiFi Camera provides wide viewing angle, it supports horizontal 355 degree(Pan) and vertical 85 degree(Tilt) rotation range
5X Optical Zoom 5x optical Zoom which means no matter you zoom in or zoom out, the image always will be clear and sharpness, it allows you to get closer and cleaner to your target, you will not miss any movement.
Motion-Detection Alarm When motion objects detected, it will push alarm message to your mobile phone.Through the app can be a key to open or close the detection funtion.
Support 128GB TF Card Builted in TF Card slot, Support max up to 128GB.
Infrared Night Vison Function Camera IR LED light will auto turn on when the light is insufficient or no light, to ensure the clear surveillance picture quality.
HD 1080P Wifi Camera It is HD Resolution with 1080p adopted cmos chipset. You may enjoy the excellent image full hd video and picture from this camera for
Mobile Phone Playback It supports remotely 7/24 loop recording and playback by an installed micro SD card (up to 4 days events recording by 32GB space).
FTP Upload
Available to set up a FTP web server or NAS to store video recordings and snapshots, or Email alerts as a Free Secure Personal Cloud Server.
Package List 1 * Antenna 1 * CD Software 1 * RJ45 Cable 1 * Mounting screws 1 * Power Adapter 1 * User Manual 1 * Warranty card 1 * Speed Dome Camera
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
