ZK IFACE702 Face And Fingerprint Time Attendance Door Access Control System WIFI TCP/IP
ZK IFACE702 Face And Fingerprint Time Attendance Door Access Control System WIFI TCP/IP 500 Facial Access Control Time Recorder...
Introduction:
Features:
Specification:
|
CPU |
Multi-Bio CPU 630 MHz |
|
Memory |
256M Flash, 64M SDRAM |
|
Hardware Platform |
ZMM220 Multi-Medium Development Platform |
|
Fingerprint Sensor |
Optical Fingerprint Sensor without film |
|
Camera |
High Resolution Infrared Camera |
|
Display |
4.3 TFT touch screen |
|
Face capacity |
500 (1:N) |
|
Fingerprint capacity |
2000 |
|
Card capacity |
10,000(Optional) |
|
Logs capacity |
100,000 |
|
Algorithm Version |
Face 7.0 & Finger 10.0 |
|
2000mAh backup battery |
Optional |
|
Communication |
TCP/IP,RS232/485 |
|
USB-HOST |
USB-Host |
|
Wireless Wi-Fi |
Standard |
|
Time attendance Standard functions |
Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST |
|
Access control interfaces for |
3rd party electric lock, door sensor, exit button |
|
Wiegand Signal |
Output |
|
Optional functions |
serial printer, RFID card, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS |
|
Power supply |
12V3A |
|
Verification Speed |
2 sec |
|
Operating temp |
0C- 45 C |
|
Operating Humidity |
20%-80% |
|
Dimension |
193*165*112.5 mm (Length*Width*Thickness) |
|
Gross Weight |
1.9 kg |
Image:

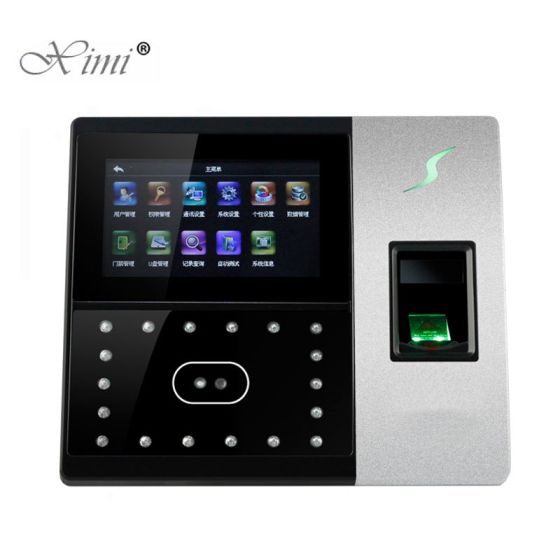

| Description | Introduction:iFace702 multi-biometric identification time attendance and access control terminal adopts ZK latest ZMM220 platform with ZK Face 7.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed ZK Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP,WIFI, optional GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.
Features:Identification methods include Face, Fingerprint/RFID and/or Password
Elegant ergonomic design
4.3 TFT touch screen is user-friendly and very intuitive
6 user-defined function keys
Contact relays for door access control (wires to door strike or 3rd party panel)
Web-server management software via IE browser
Optional extendable scheduled-bell
Infra-red optical system enables user-identification in poorly lit environments
Optional built-in battery backup provides approx 4 hours continuous operation.
Optional built-in GPRS for wireless communication
Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
Wiegand Output for connections to 3rd party access control panels.
Specification:
Image:
|
||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | 32562282429 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 3.000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| selling_potential | 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| With Built-in Battery | No | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Condition | New |
