ZK SF101 Metal Casing Fingerprint Biometric RFID Access Control System Fingerprint Reader USB Client Door Access Controller

Introduction:

SF101 is a fingerprint reader produced by ZK Software specifically for Access Control .Its remarkable advantage is that it can match with most of the access controllers on the market ,inland or abroad, SF101 supports Wiegand 26-64 output ,and integrates special access control software which can be upload, download, delete and wiegand products ,all input /output are using anti-jamming protection and over-voltage/circuit protection. The product experiences the strict degradation test before leaving factory to guarantee the high stability.

Specifications:

Fingerprint Capacity	200 Templates
Card Capacity	500
Transaction Capacity	30,000 Transactions
Sensor	ZK Optical Sensor
Algorithm Version	ZK Finger VX9.0
Communication	RS232/485, USB-host
Access Control Interface	Access control door sensor, alarm, lock, exit button, wired bell
Wiegand Signal	Wiegand output 26bit
Led	Red, Green, Blue
Power supply	DC12V
Size	12012035mm (WHD)

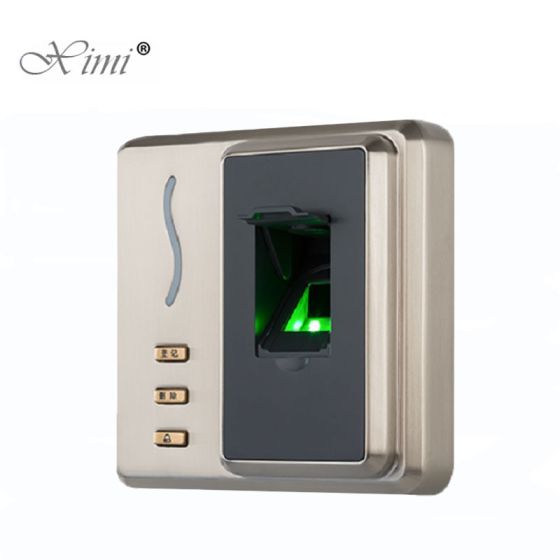

Image:

More Information

Product Name

ZK SF101 Metal Casing Fingerprint Biometric RFID Access Control System Fingerprint Reader USB Client

Description

Introduction:

SF101 is a fingerprint reader produced by ZK Software specifically for Access Control .Its remarkable advantage is that it can match with most of the access controllers on the market ,inland or abroad, SF101 supports Wiegand 26-64 output ,and integrates special access control software which can be upload, download, delete and wiegand products ,all input /output are using anti-jamming protection and over-voltage/circuit protection. The product experiences the strict degradation test before leaving factory to guarantee the high stability.

Specifications:

Fingerprint Capacity	200 Templates
Card Capacity	500
Transaction Capacity	30,000 Transactions
Sensor	ZK Optical Sensor
Algorithm Version	ZK Finger VX9.0
Communication	RS232/485, USB-host
Access Control Interface	Access control door sensor, alarm, lock, exit button, wired bell
Wiegand Signal	Wiegand output 26bit
Led	Red, Green, Blue
Power supply	DC12V
Size	12012035mm (WHD)
